Description

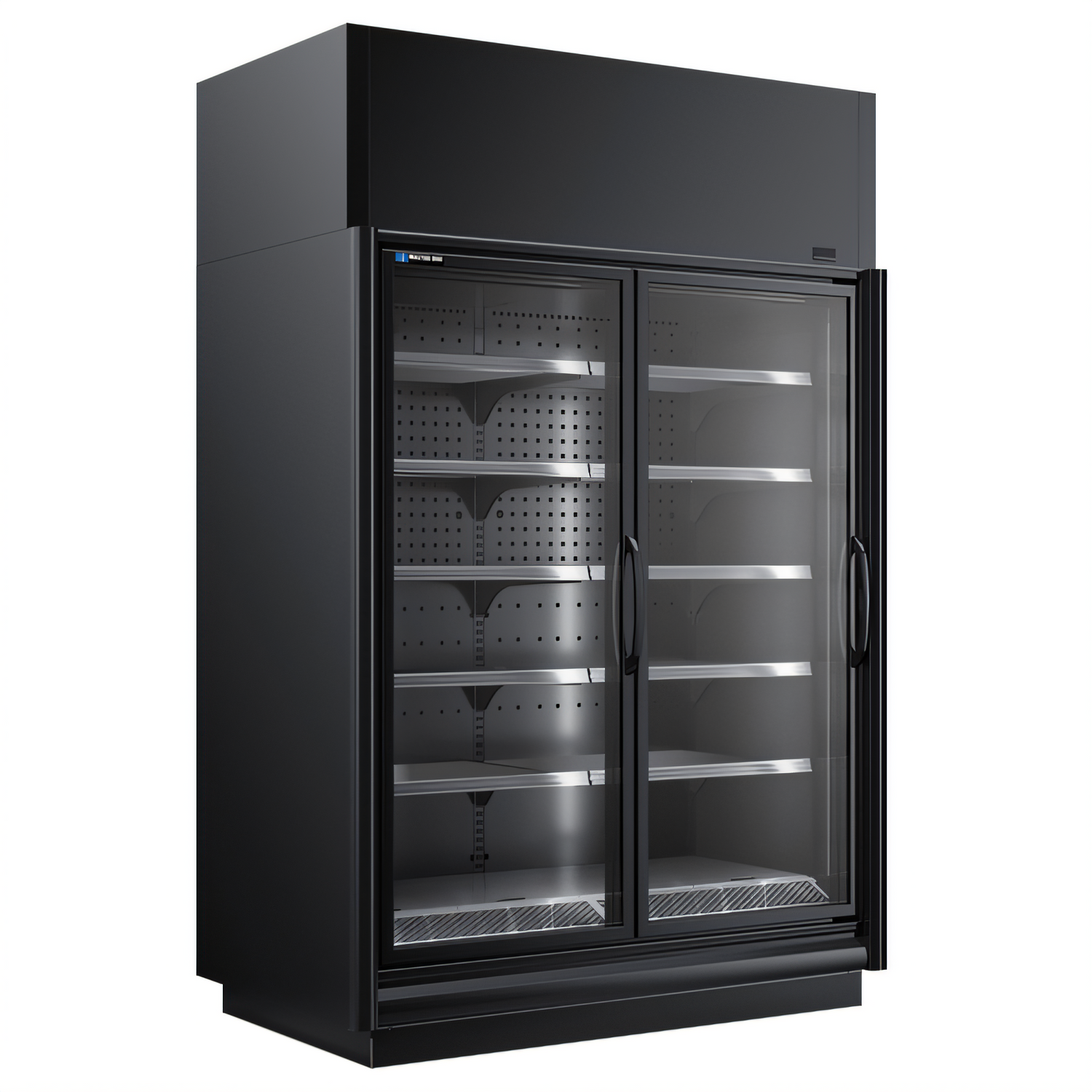

Master-Bilt Endless Complete Low-Temperature Merchandiser – 67" Wide, 2 Doors
Model BEL-2-30CP • SKU 5602The Endless Complete BEL-2-30CP is the simplest way to add high-impact frozen merchandising to your sales floor. This self-contained, two-door freezer ships with everything you need—condensing unit, end panels, bumper and 20" top shroud—for a fast, professional installation that starts selling the moment it arrives.
Key advantages
- Holds –15 °F to 0 °F (–26 °C to –18 °C) for dependable frozen food protection.
- (2) field-reversible 30" glass doors with self-closing, adjustable torsion hinges.
- Five 23" deep cantilever shelves per door—135 lb load rating, price-tag molding & product stop.
- Front air curtain minimizes frost buildup and reduces defrost cycles.
- Energy-saving LED lighting (3 fixtures) and high-efficiency EC fan motors.
- Baked-on black steel interior & exterior with slim bumper for maximum aisle space.
- 2 ½" foamed-in-place, zero-ODP insulation plus eco-friendly R-449A (or R-404A) refrigerant.
- Fits through a standard 80" doorway—no special rigging required.
- cULus & UL EPH Classified; proudly Made in the USA.
Performance you can count on
- Factory-tested MSLD010EB-ENC condensing unit supplies 3,125 BTU/h at –20 °F SST.
- Electronic controller with digital display and programmable defrost.
- Electric defrost heaters for rapid ice removal and consistent cabinet temps.
- Quick-connect refrigerant line-set and pre-wired harness for plug-and-play hook-up (hard-wired power).
Technical specifications
| Exterior width (with ends) | 67" / 1,702 mm |
|---|---|
| Exterior depth | 40 3⁄8" / 1,026 mm |
| Exterior height |
81 7⁄8" (on skid) 79 3⁄4" (without skid) +20" top shroud → 101 7⁄8" installed |
| Door count / width | 2 doors / 30" each |
| Total shelves | 10 solid cantilever shelves, 23" deep |
| Pack-out volume | 54.1 cu ft |
| Product facing | 28.2 sq ft |
| Interior lighting | 3 LED light strips |
| Temperature range | 0 °F to –15 °F (–18 °C to –26 °C) |
| Refrigerant | R-449A (standard) / R-404A (optional) |
| Electrical | 208-230 V / 1 Ph / 60 Hz – 14.8 MCA, 20 A Max OCP – hard-wire connection |
| Crated weight | 1,185 lb / 539 kg |
| Certifications | cULus, UL EPH (NSF 7) |
Performance ratings based on 75 °F ambient / 55 % RH.
Planning a multi-case lineup? Endless merchandisers are modular—combine refrigerator or freezer sections to create the exact door count your store requires.
