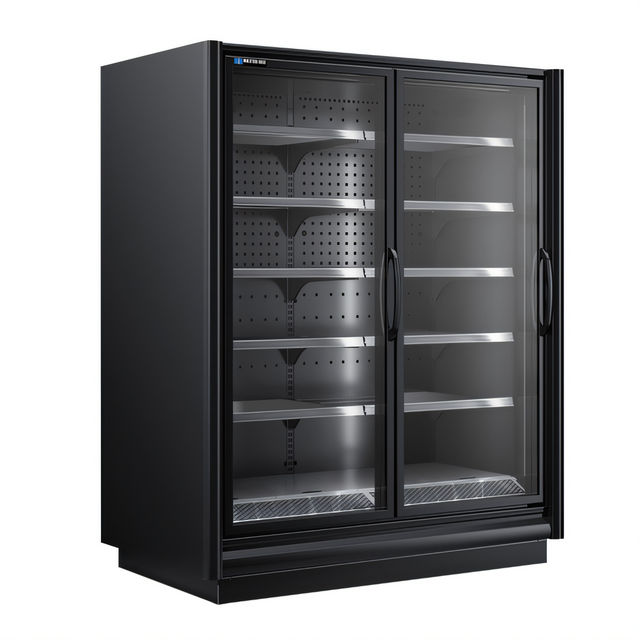

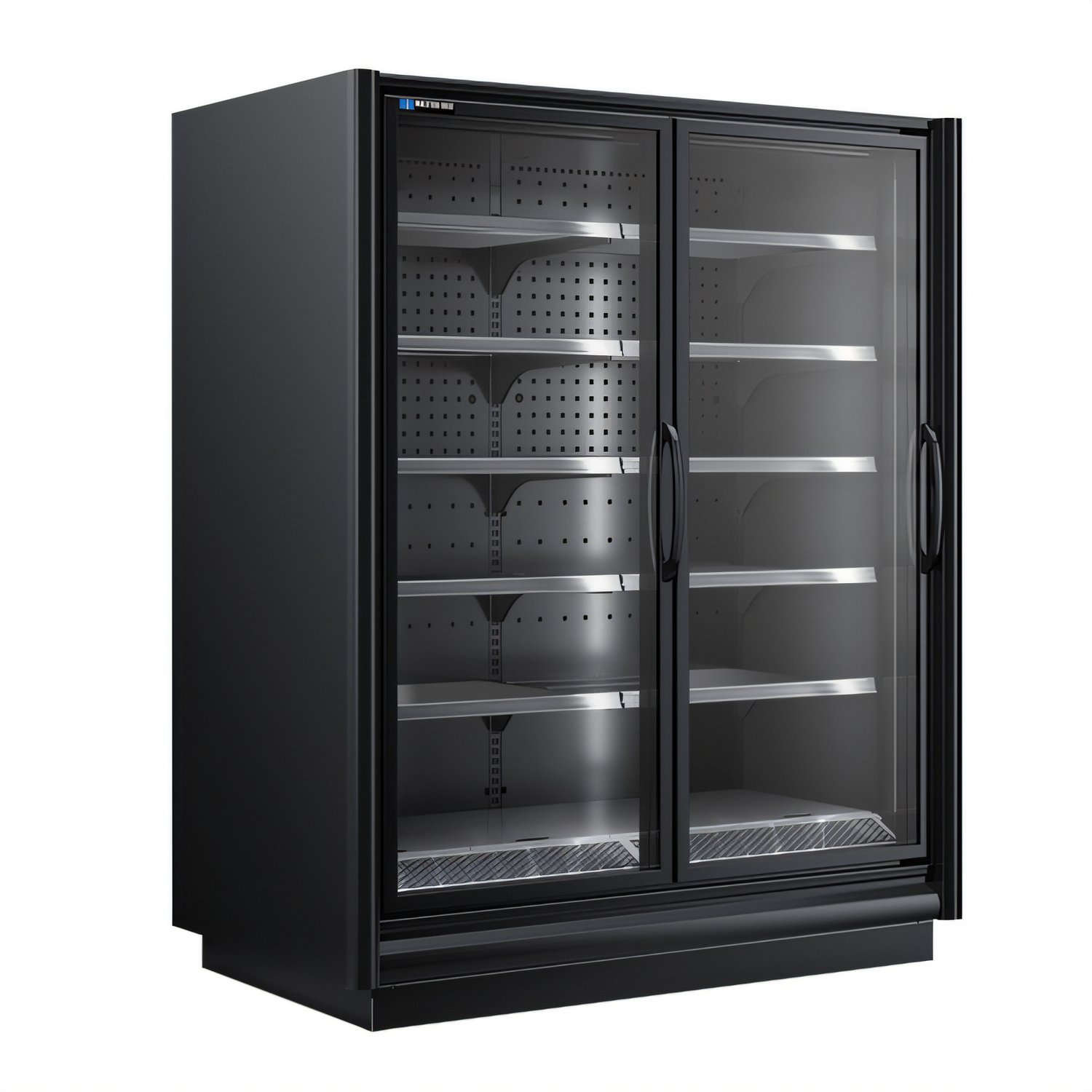

Master-Bilt Products BEL-2-30 Endless Configurable Glass Door Merchandisers
Master-Bilt Endless BEL-2-30 Low-Temperature Merchandiser – 62" W, 2 Glass Doors
Create an “endless” frozen line-up or let this stand-alone case steal the show.The BEL-2-30 delivers maximum frozen merchandising in a compact 62-inch footprint. Deep shelves, bright LED lighting and an energy-saving front air curtain keep products attractive and ice-cold, while the remote refrigeration design pulls heat and noise off your sales floor.
Key Features
- Low-temperature freezer cabinet maintains 0° to –15 °F (–18° to –26 °C).
- Remote refrigeration ready (condensing unit sold separately) for a quieter, cooler store.
- Two 30" self-closing Thermoseal® glass doors with black frames and adjustable torsion control.
- Ten 23" deep cantilever shelves with price-tag molding—largest standard shelf depth available.
- Front air curtain reduces frost build-up and frequency of defrost cycles.
- Even, shadow-free LED lighting on every shelf level.
- Eco-friendly R-448A/R-449A refrigerant and zero-ODP, 2½" foamed-in-place insulation (R-factor 20).
- Cam-lock panel construction fits through a standard 80" doorway for fast installation.
- Made in USA; cULus & UL EPH Classified for safe food merchandising.
Modular “Endless” Design
- Join multiple Endless cases side-by-side for unlimited door counts.
- Pre-wired quick-connect harnesses simplify case-to-case assembly.
- Narrow 40 ⅜" overall depth and shallow bumper minimize aisle intrusion.
Technical Specifications
| Model | BEL-2-30 (remote, low temp) |
|---|---|
| Exterior Dimensions (W × D × H) | 62" × 40 ⅜" × 81 ⅞" (1581 × 1026 × 2080 mm) |
| Door Configuration | 2 hinged glass doors, 30" wide each |
| Shelving | 10 adjustable 23" deep cantilever shelves (135 lb load rating per shelf) |
| Visible Merchandising Area | 28.2 sq ft |
| Usable Pack-Out | 54.1 cu ft (1,532 L) |
| Temperature Range | 0° to –15 °F (–18° to –26 °C) |
| Refrigerant / Coil | R-448A/R-449A • bottom-mounted evaporator coil with EC fan motors |
| Defrost | Electric, factory programmed via electronic controller |
| Electrical | 120/208-230 V, 60 Hz, 1-phase, 12.8 A MCA / 15 A MOP (4-wire connection) |
| Interior Lighting | LED (3 light strips) |
| Construction | Painted textured galvanized steel interior & exterior; 2½" polyurethane insulation |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2-year parts & labor on cabinet (optional extended compressor coverage available) |
| Country of Origin | USA |
Perfect For
- Grocery, c-stores & specialty food markets
- Ice cream, frozen entrées, novelties and more
- Operators requiring a customizable, space-efficient freezer line-up
Installation & Ordering Notes
- Ends are not included; order one left-hand and one right-hand end for stand-alone use.
- Requires a properly sized remote condensing unit—see BTU chart or consult Master-Bilt.
- Drain stub and electrical junction accessible at bottom-right rear; allow 1" clearance for case-to-case joins.
- Ships with removable skid runners; cabinet height without runners is 79 ¾".
Need a different size or a medium-temperature cooler? Ask about additional Endless modules and Complete Package (CP) self-contained configurations.
Overall Dimensions:
62.0"W x 40.38"D x 81.88"HProduct Weight:
1085.0 lbCertifications & Compliance
