Marshall Air Systems

Marshall Air Systems Autobroil AC2B-MODEL-2424G Gas Conveyor Broiler, Double-Belt Straight-Through Countertop, Digital Controls

SKU: AC2B-MODEL-2424G
$24,508.42
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

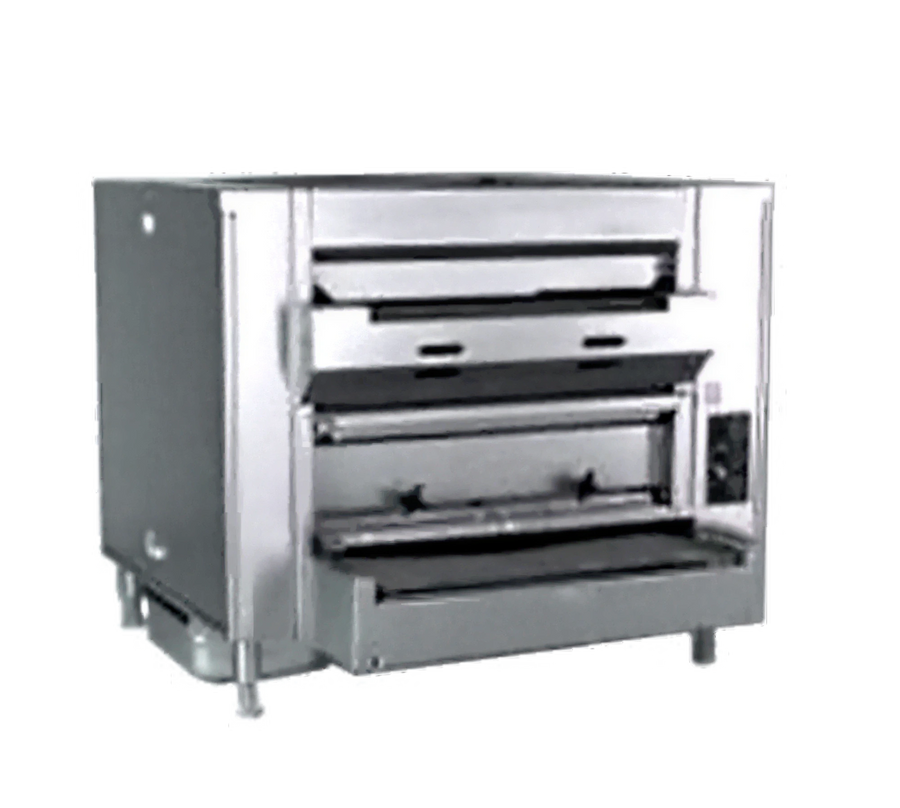

The Autobroil AC2B-MODEL-2424G is a gas conveyor broiler with a straight-through, countertop design. It combines one 24-inch broiling belt with one 24-inch belt for contact toasting, with variable speeds and digital microprocessor control.

The unit has stainless steel construction and a listed gas input of 97,000 BTUH for LP or natural gas. The gas-unit documentation specifies a 3/4-inch NPT gas supply connection and electronic ignition.

Overall dimensions are 37.75 inches wide, 48.88 inches deep, and 30.63 inches high.

Overall Dimensions:

37.75"W x 48.88"D x 30.63"H

Product Weight:

525.0 lb

Dual-belt configuration

Includes one 24-inch broiling belt and one 24-inch belt for contact toasting.

Variable speed operation

The conveyor belts use variable speeds.

Digital microprocessor control

The unit uses digital microprocessor controls.

Menu programming and diagnostics

The control documentation specifies three menu-item programs per belt on dual-belt broilers and broiler self-diagnostics.

Gas operation

The gas model is specified for LP or natural gas with a 97,000 BTUH input and electronic ignition.

Stainless steel construction

The broiler is specified with stainless steel construction.

Straight-through countertop design

The unit is specified as a straight-through conveyor broiler for countertop use.

Related Searches

Best Sellers Broilers Cheesemelters Commercial Charbroilers Cooking Equipment Equipment Marshall Air Systems New Arrivals Restaurant Equipment
Fuel Type Gas
Conveyor Count Double
Conveyor Type Straight-through
Design Countertop
Belt Configuration One 24 in broiling belt and one 24 in contact-toasting belt
Speed Control Variable speeds
Control Type Digital microprocessor controls
Construction Stainless steel
Gas Input 97,000 BTUH
Gas Compatibility LP or natural gas
Gas Connection 3/4 in NPT
Ignition Electronic
Electrical Requirement 208-240 V/60 Hz/1 ph; 19 A; 3.952 kW, or 240 V/50 Hz/1 ph; 22 A; 5.280 kW

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Limited warranty for one year from the date of shipment, subject to the stated conditions.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a gas, straight-through conveyor broiler designed for countertop use.
It has one 24-inch broiling belt and one 24-inch belt for contact toasting.
The unit uses digital microprocessor controls with variable speeds. The documentation specifies three menu-item programs per belt for dual-belt broilers and broiler self-diagnostics.
It is specified for LP or natural gas with a 3/4-inch NPT supply connection and a 97,000 BTUH input.
The unit is 37.75 inches wide, 48.88 inches deep, and 30.63 inches high.
The product is identified with CSA, ETL, and NSF certifications.
The Marshall Air Systems limited warranty covers new equipment for one year from the date of shipment, subject to the stated installation, registration, startup, operating, and commercial-use conditions.
