Marsal (Middleby)  |  Wave  |  SKU: WF-42/MB42 STKD

Marsal (Middleby) WF-42/MB42 STKD Wave Pizza Ovens

$54,574.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual spanish Installation & operation Start up doc Wf-brochure
Related Searches
Commercial Ovens Deck Ovens Deck Ovens Marsal (Middleby) Ovens Ovens Pizza Ovens Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

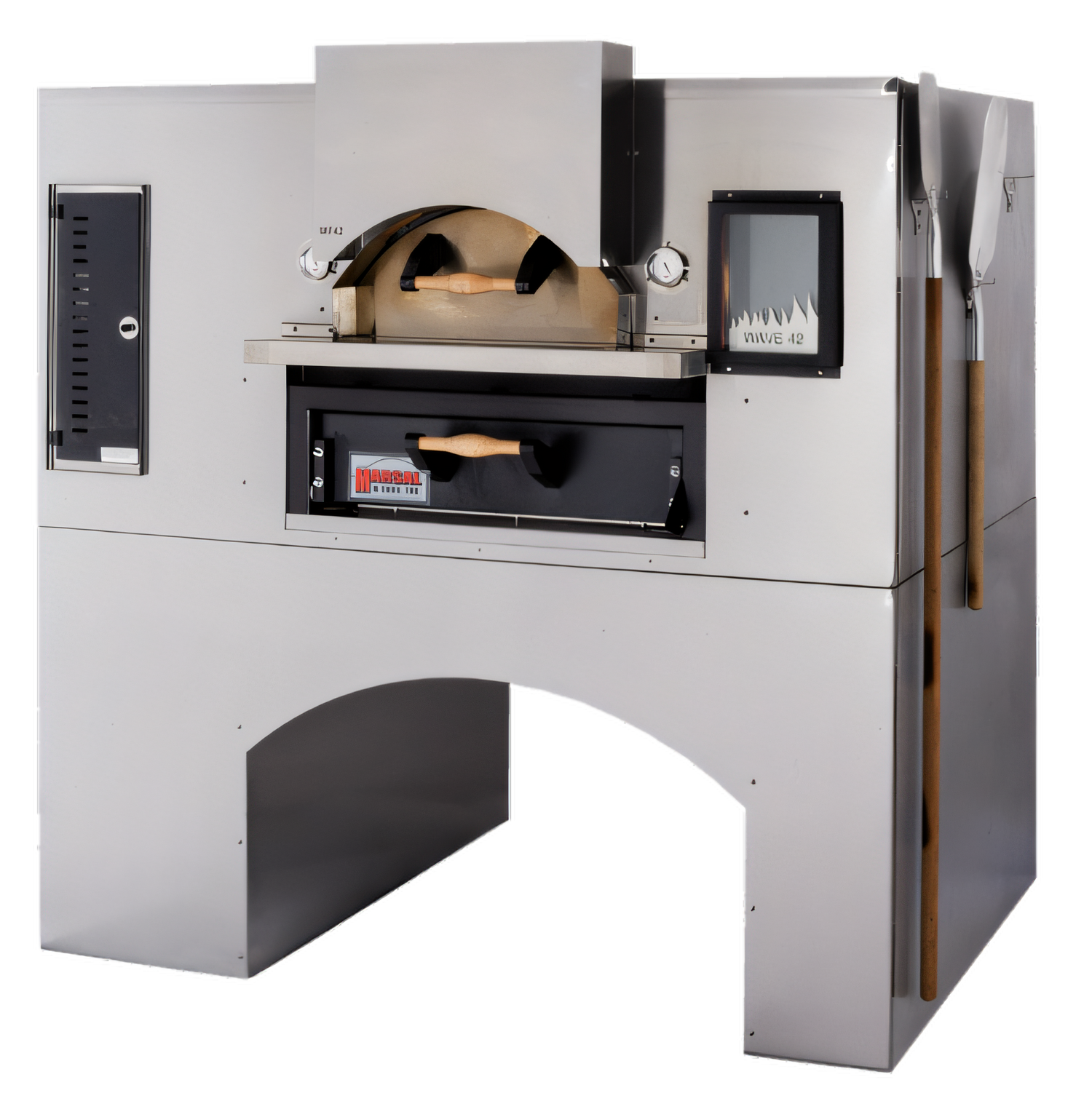

Marsal Wave Flame Oven – WF 42 / MB 42 Double Stack

Gas-fired | 36" × 36" Wave deck + 36" × 42" MB deck | 220,000 BTU

Bring true Old-World performance to your kitchen with the only gas oven that combines Marsal’s patented Wave-Flame engineering with the rock-solid reliability of an MB deck. Achieve blistering, 3-minute artisan bakes at temperatures over 900 °F—without the hassles of wood or coal.

Key features

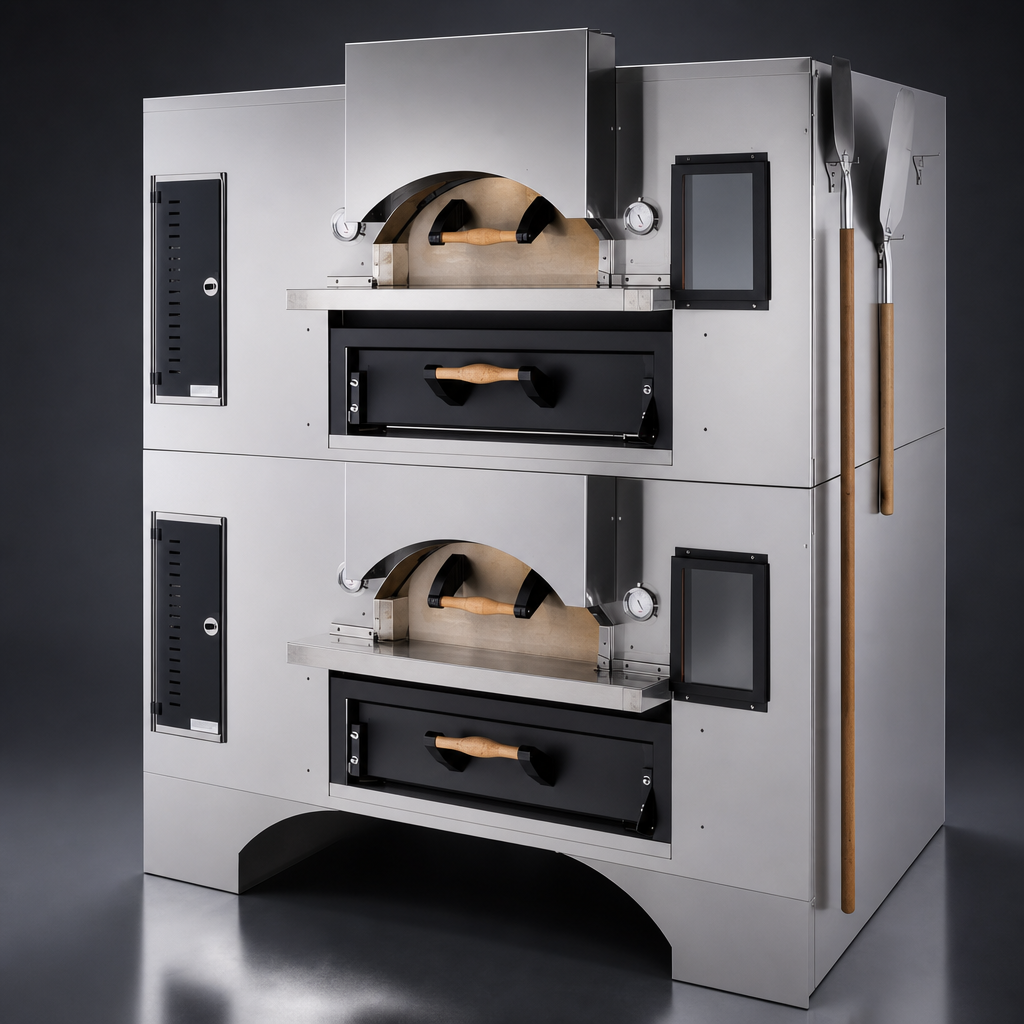

  • Dual chambers: Wave deck (36" × 36") stacked over MB deck (36" × 42") for maximum throughput.
  • Exclusive Wave-Flame burner layout forces heat across the brick deck for an even, fast bake.

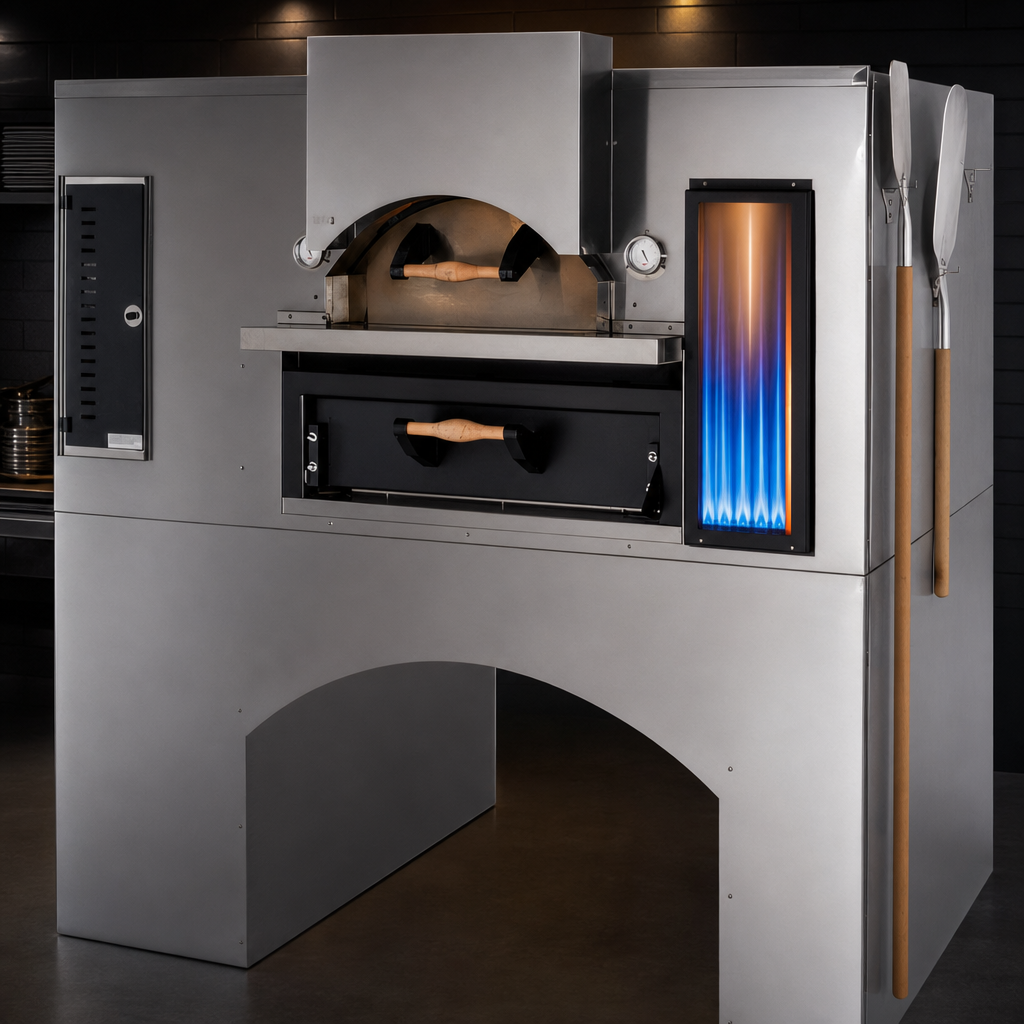

  • 40,000 BTU open side burner super-charges the chamber for crispy crusts and leopard spotting.
  • 2" thick brick cooking surfaces with refractory-brick ceiling & rear walls hold heat longer and recover faster.
  • Independent controls and twin analog thermometers—dial in separate temps for each burner bank.
  • Front flame-view window delivers show-stopping ambiance and instant visual confirmation of burner status.
  • All-stainless top, sides and integrated shelf for a clean, professional install.
  • 0" side clearance; only 3" rear clearance required—ideal for tight back-of-house footprints.
  • cETLus & ETL Sanitation listed. 100 % Made in the USA.

Technical specifications

Model Marsal WF 42 / MB 42 (factory-stacked)
Total BTU Input 220,000 BTU – 130,000 BTU Wave deck + 90,000 BTU MB deck
Cooking Surfaces Wave deck – 36" × 36"
MB deck – 36" × 42"
Chamber Temperature Range Up to 900 °F (482 °C)
Overall Dimensions (W × D × H) 62.5" × 44.25" × 74.75" (flat top)
Gas Connection 3/4" NPT, rear
Electrical 120 VAC, 1 amp (two cords)
Shipping Weight ≈ 2,800 lb (1,270 kg)
Certifications cETLus, ETL Sanitation
Warranty 18 months parts / 1 year labor

Popular options (factory-installed)

  • Rosebud or Whitestone brick-veneer finishing kits
  • Round dome top in lieu of flat top
  • Stainless steel front panel upgrade
  • Heavy-duty caster set (2 locking)
  • Auto-start timer
  • Three-piece tool kit – brush, 7" & 10" peels
Factory start-up available: A certified Marsal technician can perform on-site start-up (requires utilities to be in place). Ask your sales rep to add start-up to your purchase order.

Specifications are subject to change without notice. Always refer to the installation manual for detailed utility and clearance requirements.

Features & Specs

Manufacturer

Marsal (Middleby)

Brand_name

Wave

Certifications

cETLus, ETL, Made in USA

Width

62.5in

Depth

44.25in

Shipping Weight

2800.0lbs

Number of Decks

2

Deck Width (side - side)

36" - 47"

Deck Construction

brick

Exterior Finish

all stainless steel exterior

Deck Depth (front - back)

36"

Specifications

Wave Flame Oven, gas-fired, double stacked, (WF) 36" x 36" and (MB) 36" x 42" wide cooking surface, 40,000 BTU side burner, dual independent controls, wave design brick lined chamber, front view window, stainless steel top & sides, stainless steel shelf, 220,000 BTU, cETLus, ETL Sanitation, Made in USA
