Marsal (Middleby) SD-866 TRIPLE Pizza Ovens
Description

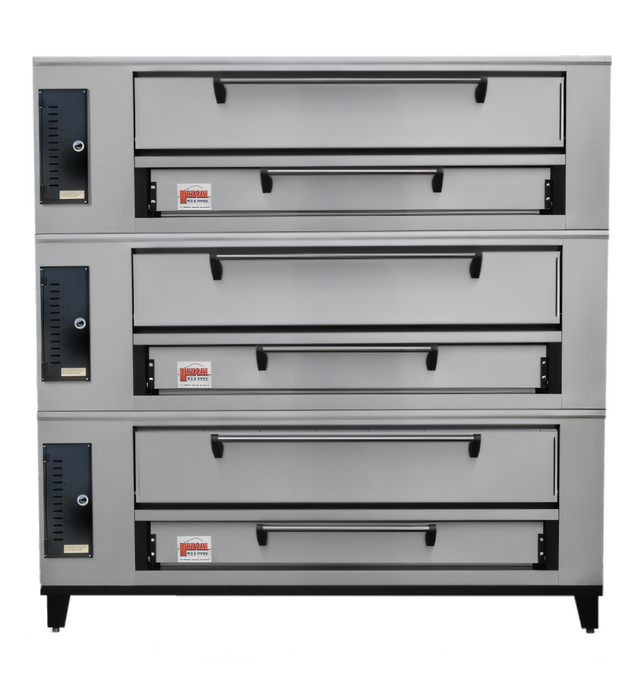

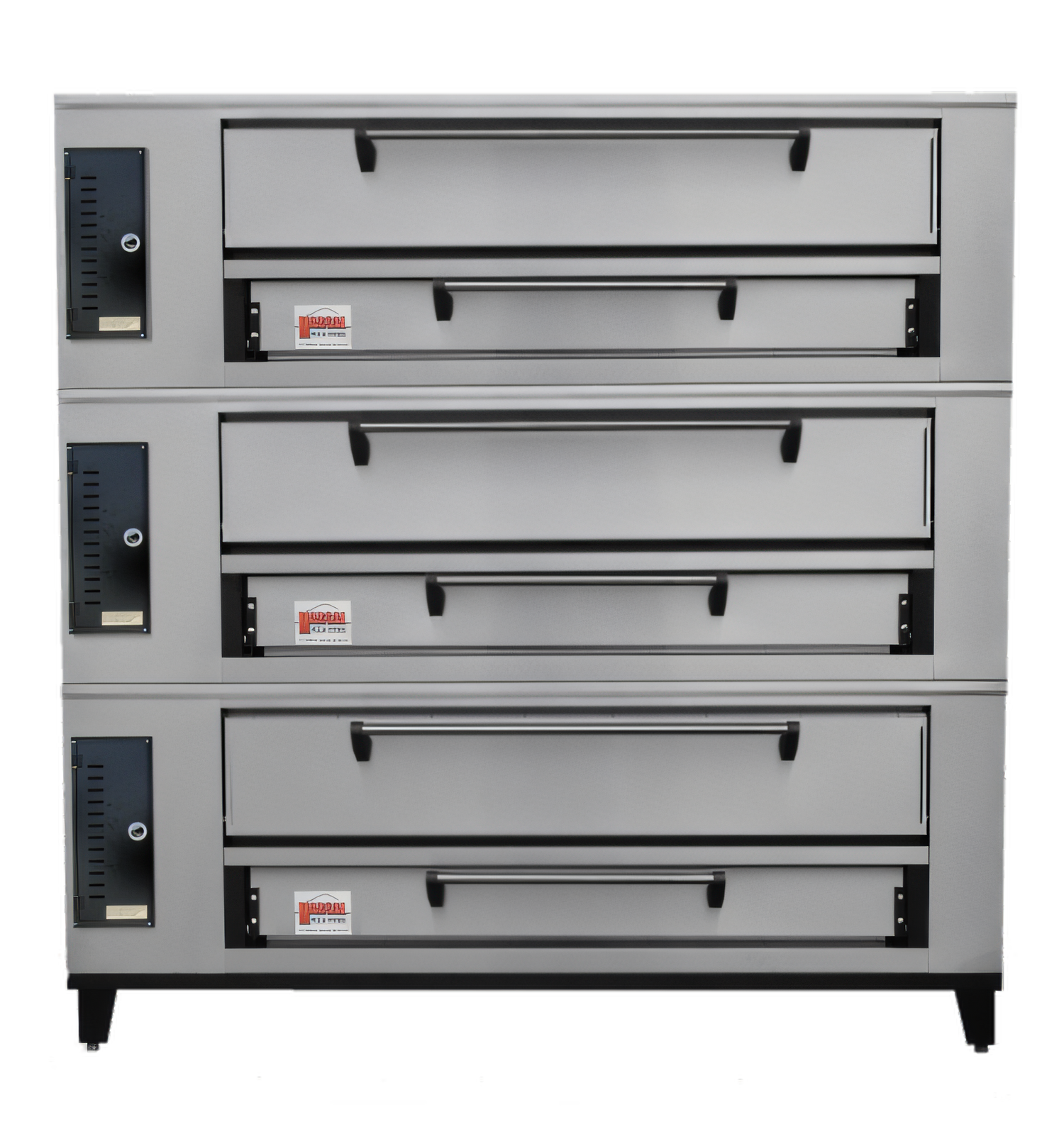

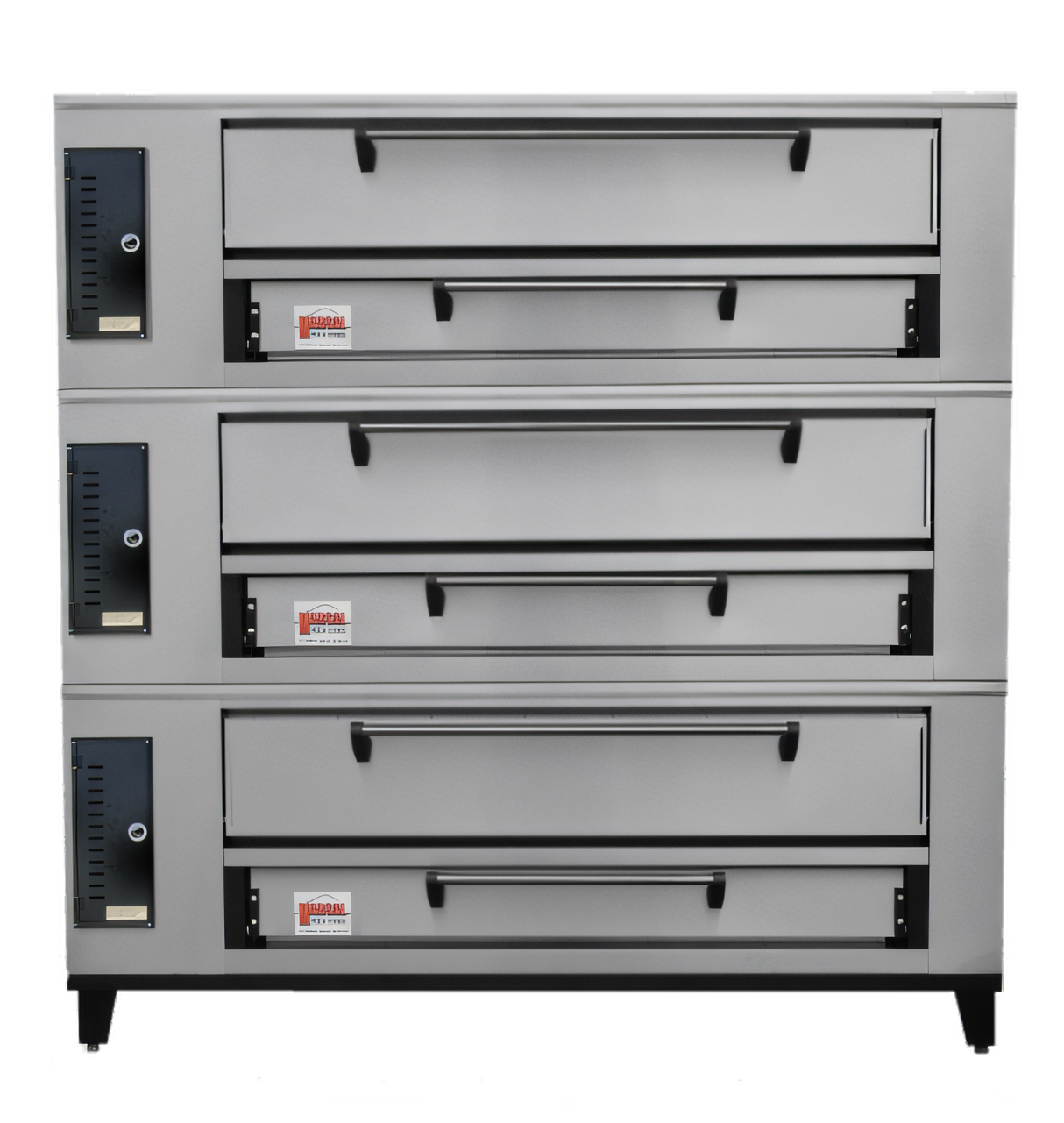

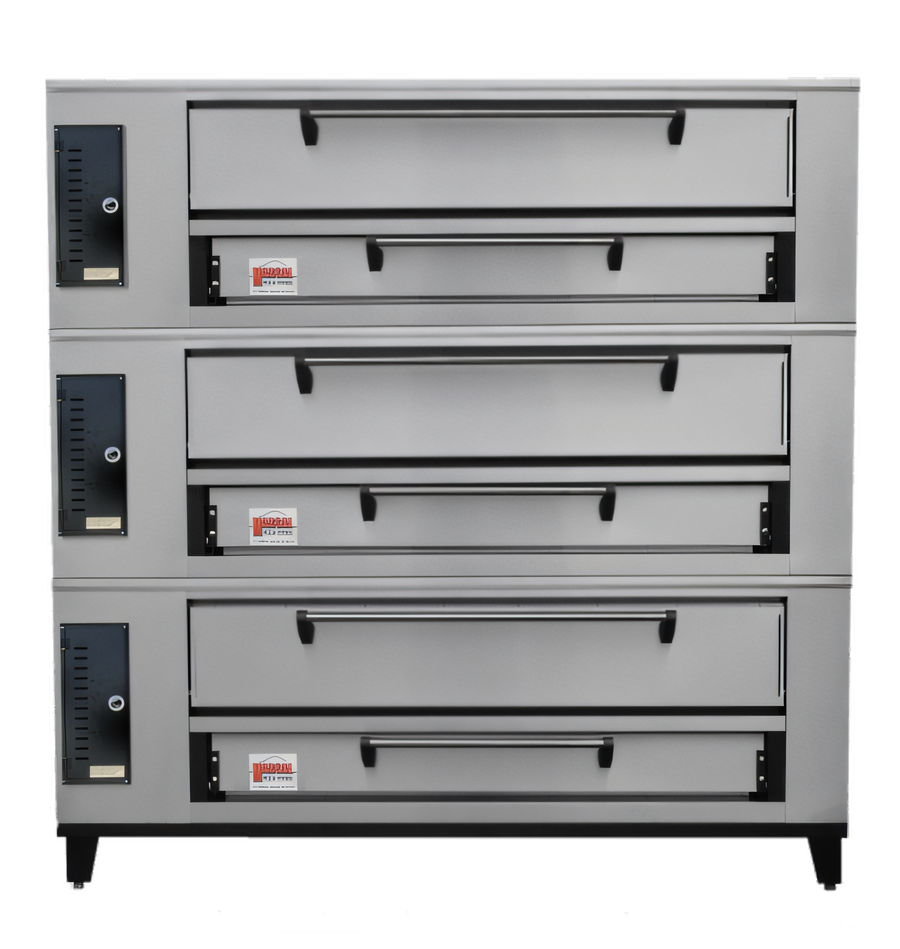

Marsal SD 866 Triple Gas Deck Pizza Oven

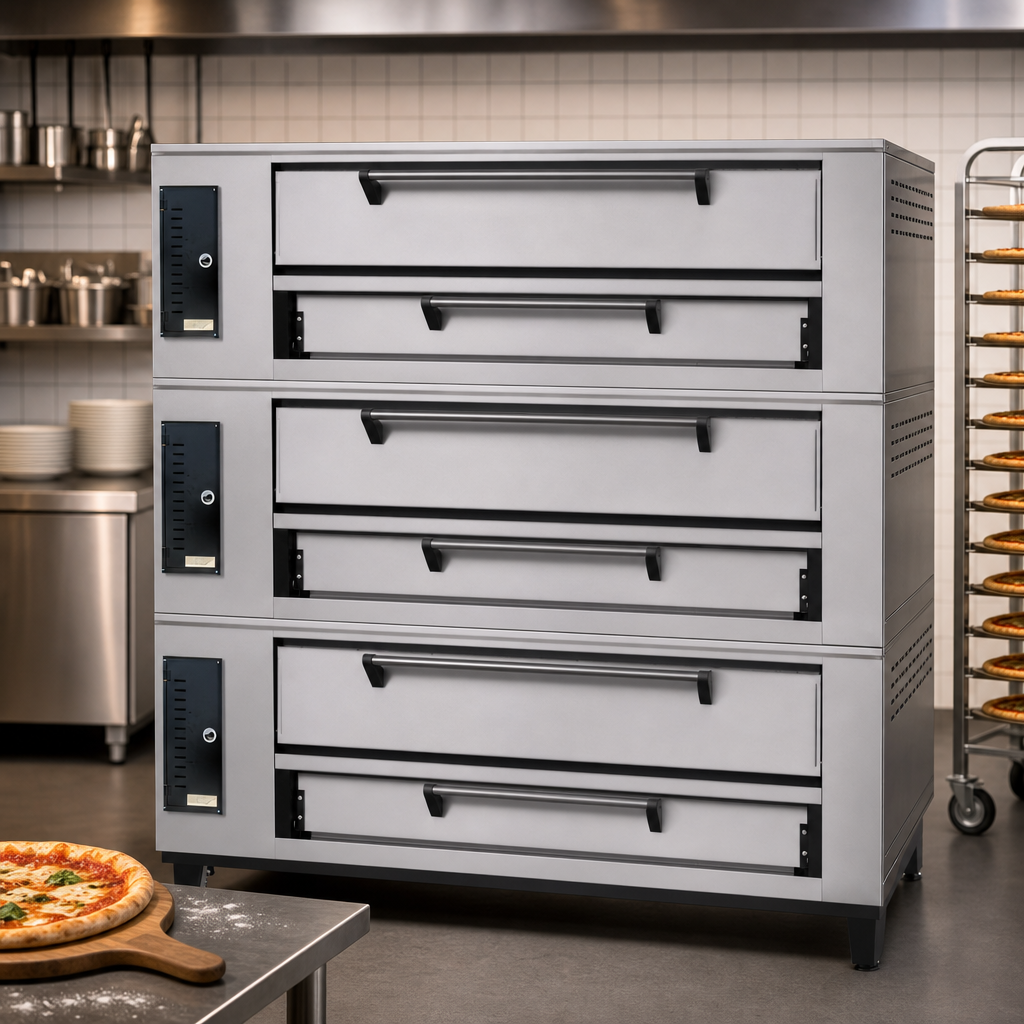

44" x 66" Brick Decks • 7" Door • 390,000 BTUBuilt for the busiest pizzerias, the SD 866 Triple delivers Marsal’s legendary brick-oven bake in a space-saving triple-stack. Three full-size decks let you turn out up to 24 x 16" pies at once while the exclusive left-to-right burner system keeps every slice perfectly crisp—no mid-bake rotation required.
Why You’ll Love It

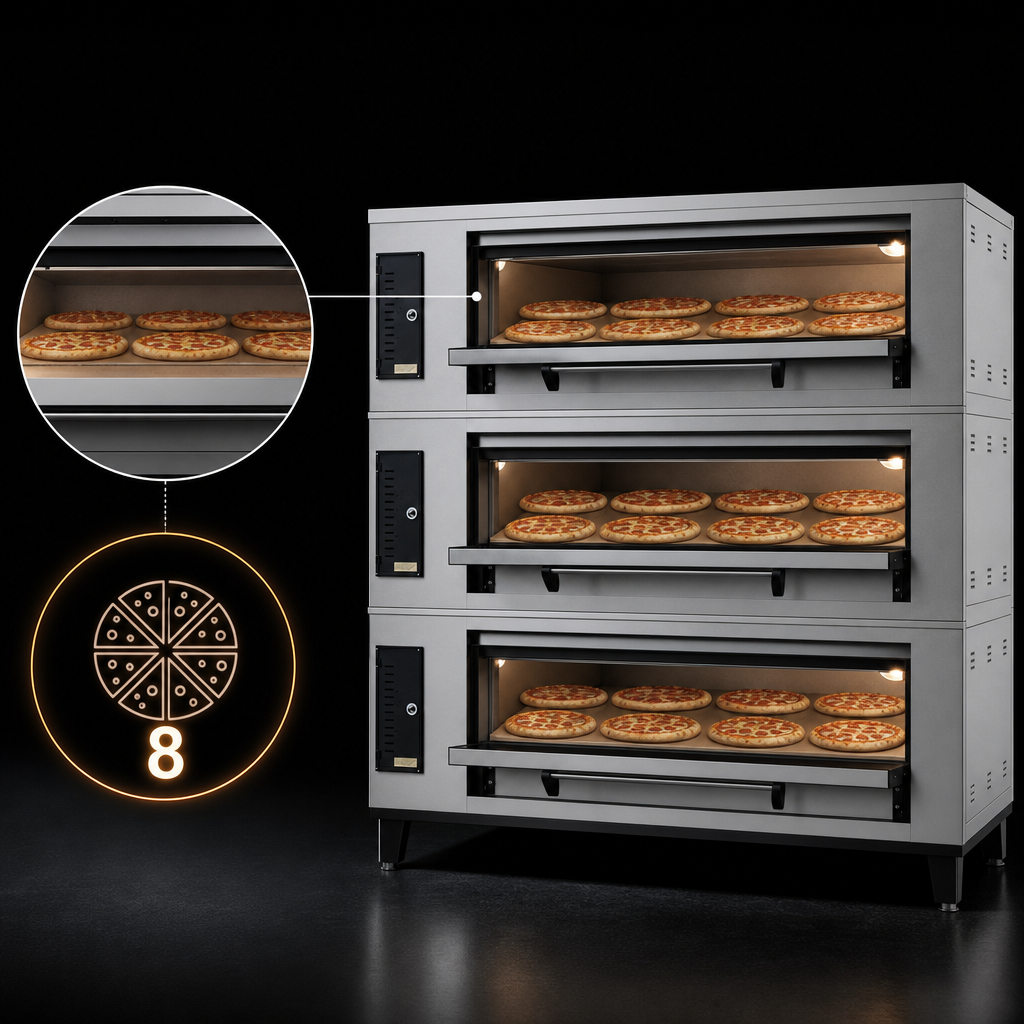

- Massive production: (3) 44" × 66" decks handle 8 x 16" pies each—24 pies per bake cycle.
- 2" thick brick decks store and radiate heat for authentic, stone-fired crusts.
- Exclusive Marsal burner and air-flow baffle push heat to the center, eliminating hot spots.
- Wide 300 – 650 °F thermostat range adapts from New York–style slices to Sicilian pan pies.
- Zero-side-clearance design* maximizes kitchen layout flexibility.
- 18 ga. stainless steel front, top, doors & sides resist corrosion and daily wear.
- Aluminized-steel interior withstands continuous high-temperature operation.
- Spring-balanced, counter-weighted doors for smooth, one-handed access.
- Heavy-duty adjustable legs for rock-solid installation on uneven floors.
- cETLus & ETL-Sanitation listed for U.S. & Canada.
*When ordered with optional ultra-high-temperature fiberglass insulation. Marsal still recommends 3–4" rear clearance for combustion air.
At-a-Glance Specs
| Model | SD 866 Triple |
|---|---|
| Fuel type | Natural gas or LP (3 × ¾" NPT connections) |
| Total BTU | 390,000 BTU (3 × 130,000 BTU Nat. / 3 × 120,000 BTU LP) |
| Baking chambers | (3) 44" W × 66" D × 7" H |
| Deck material | 2" thick brick stone |
| Thermostat range | 300 °F – 650 °F |
| Overall size (WxDxH) | 86" × 51.25" × 93" |
| Shipping weight | ≈ 4,600 lb |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 18 months parts / 1 year labor |
Popular Options
- Fiber-brick lined baking chamber for Old-World char.
- Autostart timer—have the oven hot when the doors open.
- Factory start-up service (must be purchased with oven).
Need CAD/Revit files or full specification sheet? Visit marsalovens.com.
