Marsal (Middleby) SD-866 STACKED Pizza Ovens
Description

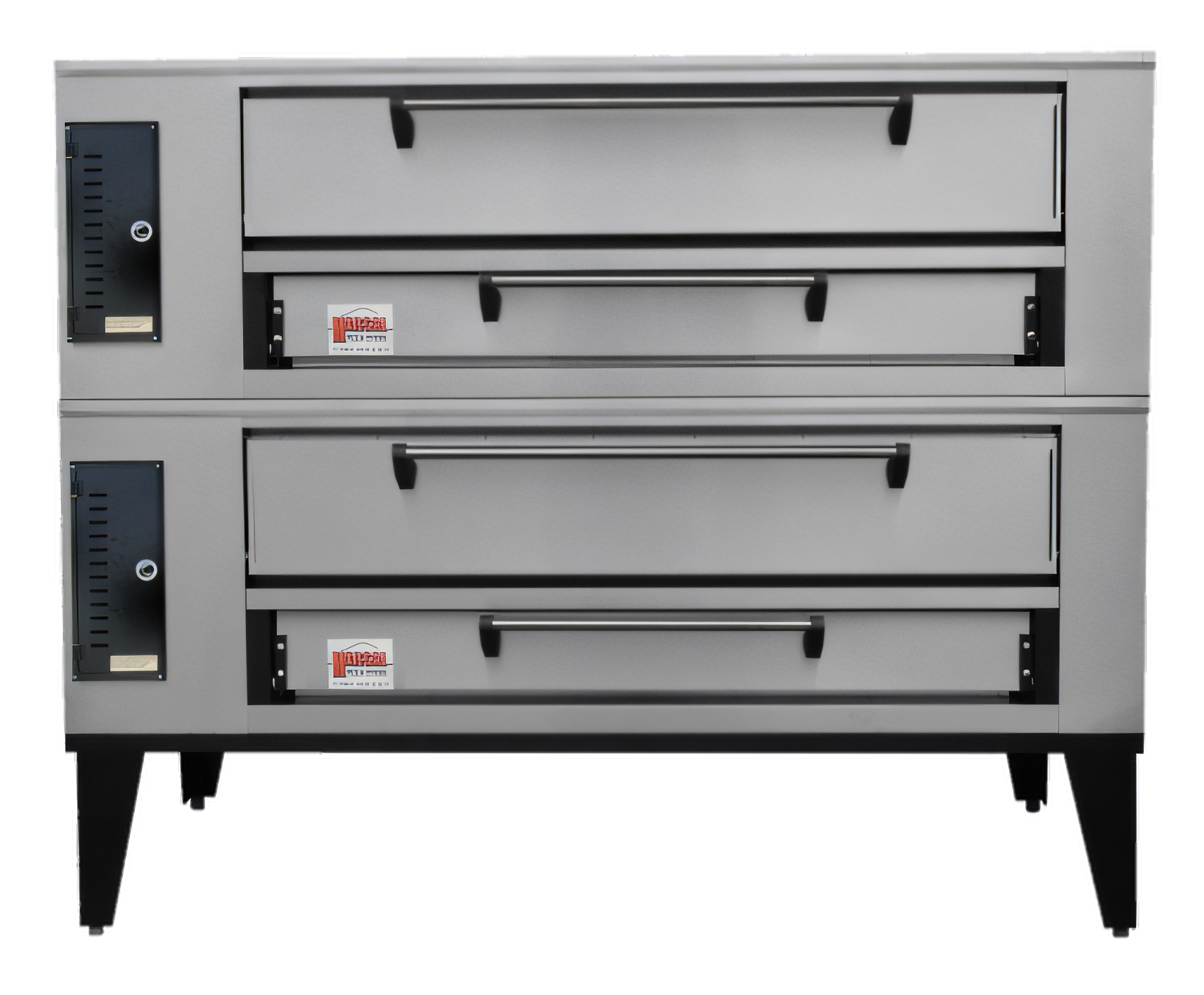

Marsal SD 866 Stacked Gas Deck Pizza Oven
Double-deck | 44" × 66" brick decks | 260,000 BTUBuilt in the USA for high-volume pizzerias, the SD 866 Stacked brings Marsal’s celebrated even-bake technology to a space-saving two-deck footprint. Each 2" thick brick deck bakes eight 18" pies at once, giving you the power to turn out 16 perfect, New-York style pizzas every cycle without ever rotating a pie.
Why you’ll love it
- Signature left-to-right burner & air chamber eliminate hot spots—no need to rotate pizzas.
- 2" refractory brick decks store massive heat for consistently crisp crusts.
- Spring-balanced, 7" door openings give fast, ergonomic access to every pie.
- 300 – 650 °F thermostat handles everything from Neapolitan-style to Sicilian pan pies.
- Zero side clearance thanks to ultra-high-temperature fiberglass insulation—ideal for tight kitchens.
- 18-gauge stainless steel front, doors, sides & top stand up to years of abuse.
- Made in USA and backed by a 1-yr labor / 18-mo parts warranty.
At-a-glance specs
| Model | Marsal SD 866 Stacked (two deck sections) |
|---|---|
| Fuel type | Natural gas or LP (field convertible) |
| Total input | 260,000 BTU/hr (2 × 130,000 BTU NAT | 2 × 120,000 BTU LP) |
| Baking surface | 2 × 44" W × 66" D (5,808 in² per deck) |

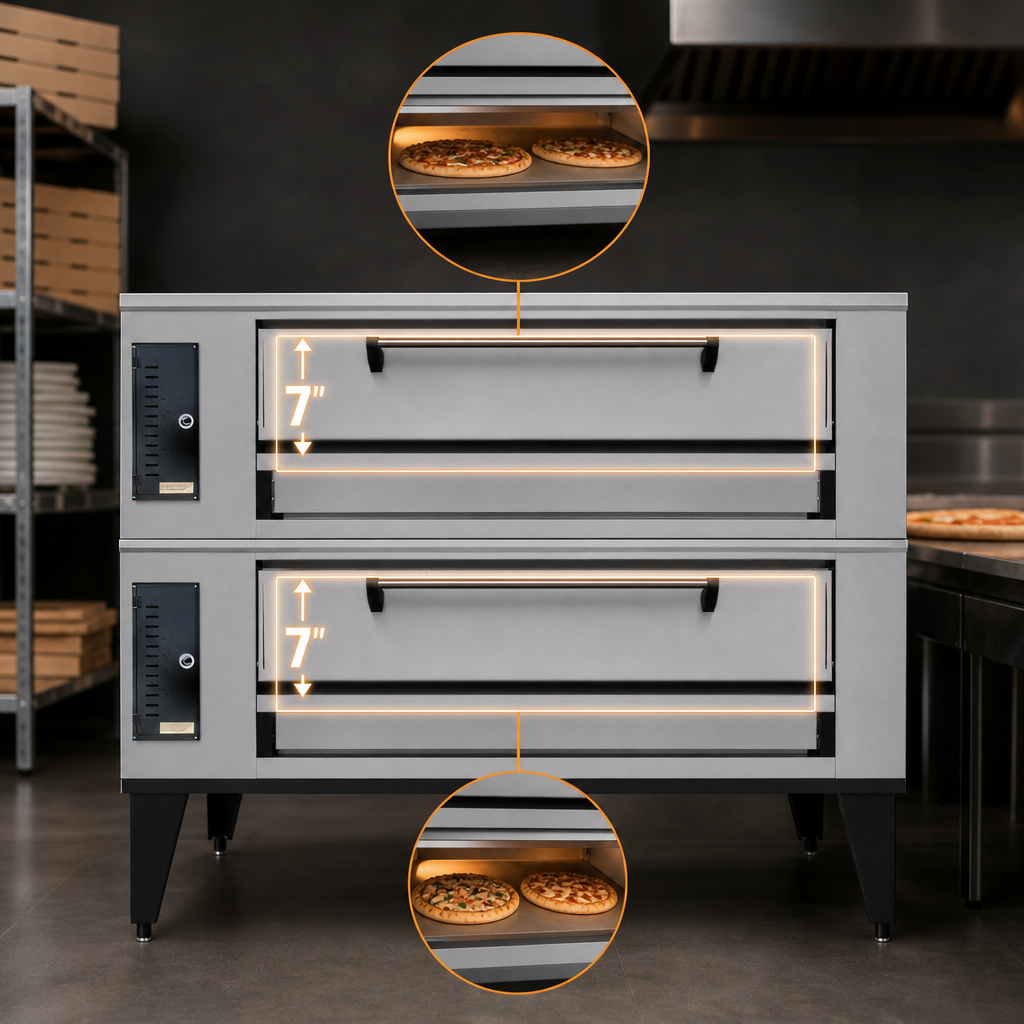

| Deck opening height | 7 inches |
| Production capacity | 16 × 18" pies (8 per deck) |
| Temperature range | 300 °F – 650 °F (149 °C – 343 °C) |
| Exterior | 18-ga stainless steel top, front, doors & sides |
| Interior | Aluminized steel, refractory brick decks |
| Overall dimensions | 51.25" W × 86" D × 66" H |
| Gas connection | 3/4" NPT (one per deck, rear) |
| Required clearances | 0" sides, 3" rear for combustion air |
| Shipping weight | ≈ 2,910 lb (1,320 kg) |
| Certifications | UL, UL EPH Classified |
| Country of origin | Made in USA |
Factory options & accessories
- Heavy-duty caster set (2 locking, 2 non-locking)
- Fiberbrick-lined baking chamber
- Programmable autostart timer
- Factory start-up service (see note below)
Need a custom configuration? Marsal SD ovens are also available in single and triple stack versions, as well as 10"-high door models.
Warranty: 18 months parts / 1 year labor from date of installation. Refer to Marsal’s full warranty terms.
