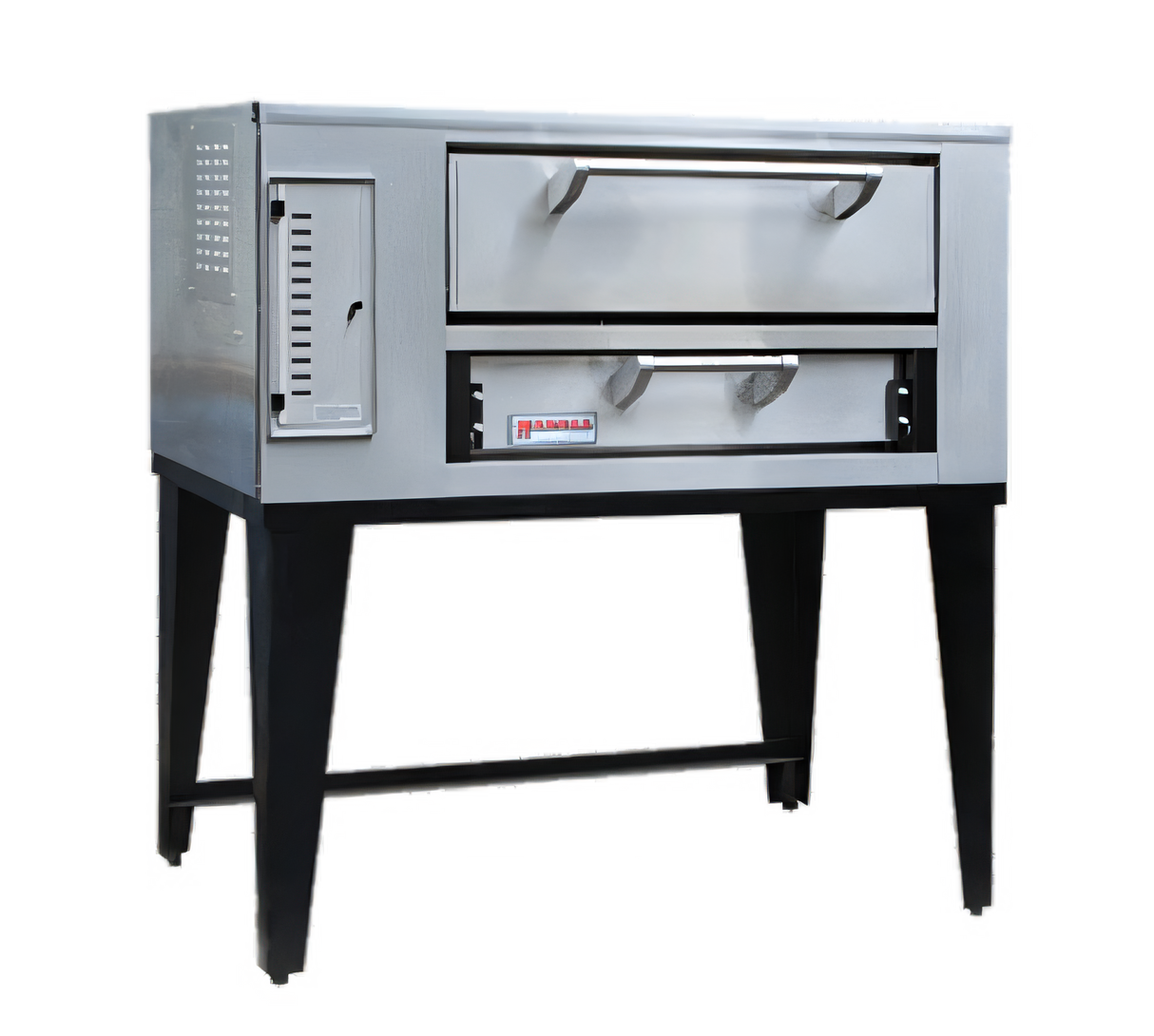

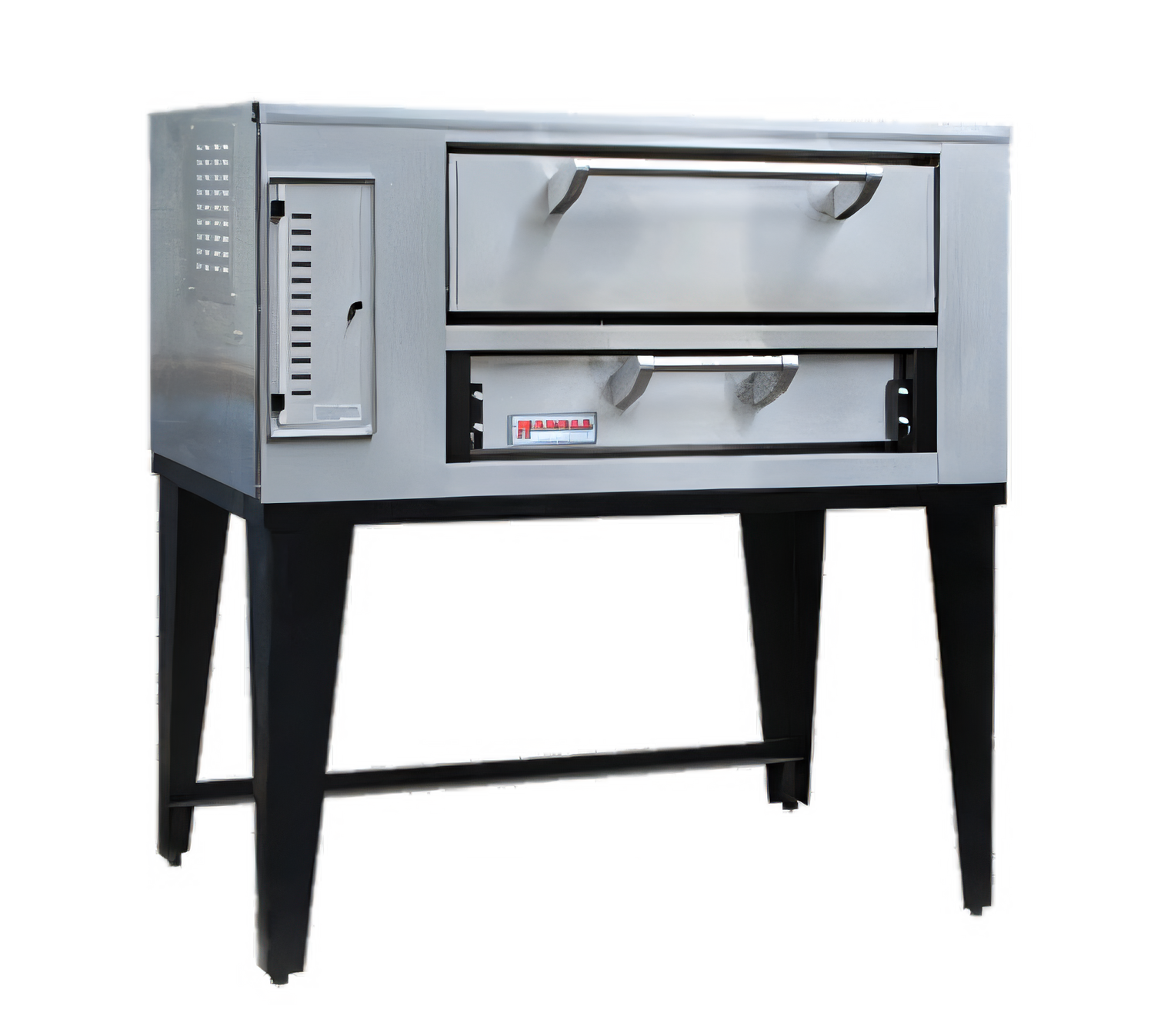

Marsal (Middleby) SD-236 STACKED Pizza Ovens
Marsal (Middleby) SD-236 STACKED Pizza Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Marsal SD 236 Double Slice Series Gas Deck Pizza Oven
Two 24" × 36" brick decks • 100,000 BTU • Made in USABuilt for high-volume slice shops and bustling kitchens, the SD 236 Double packs Marsal’s legendary hearth-style bake into a compact, side-by-side friendly footprint. Two independent 7" high baking chambers crank out up to four 18" pies at once—each with a crisp, evenly browned crust your customers crave.
Key Features

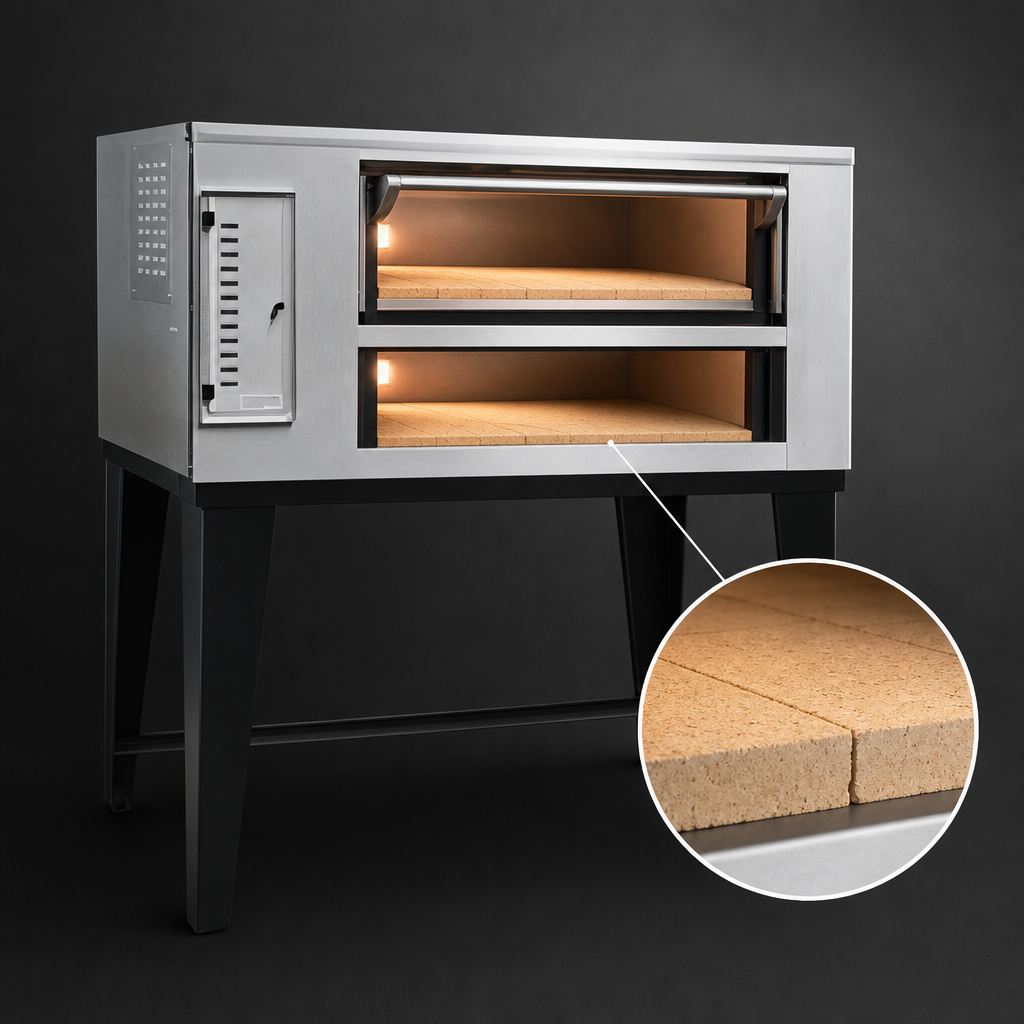

- 1 ½" thick brick decks store massive heat for authentic stone-baked results.
- Exclusive slotted side-baffle burner design eliminates hot spots—no need to rotate pies.
- Thermostatically controlled 300 °F – 650 °F for pizzas, calzones, strombolis and more.
- 18 ga. stainless steel front, doors, sides & top for rugged durability and quick cleanup.
- Zero-clearance sides with ultra-high-temperature fiberglass insulation—perfect for tight cook lines.
- Spring-balanced doors open smoothly and stay put for safe, one-handed loading.
- Heavy-duty adjustable legs level the oven; optional locking casters available.
- 100,000 BTU total (2 × 50,000) delivers fast recovery during peak service.
- UL & UL EPH Classified for safety and sanitation.
- Engineered and manufactured in the United States.
Capacity

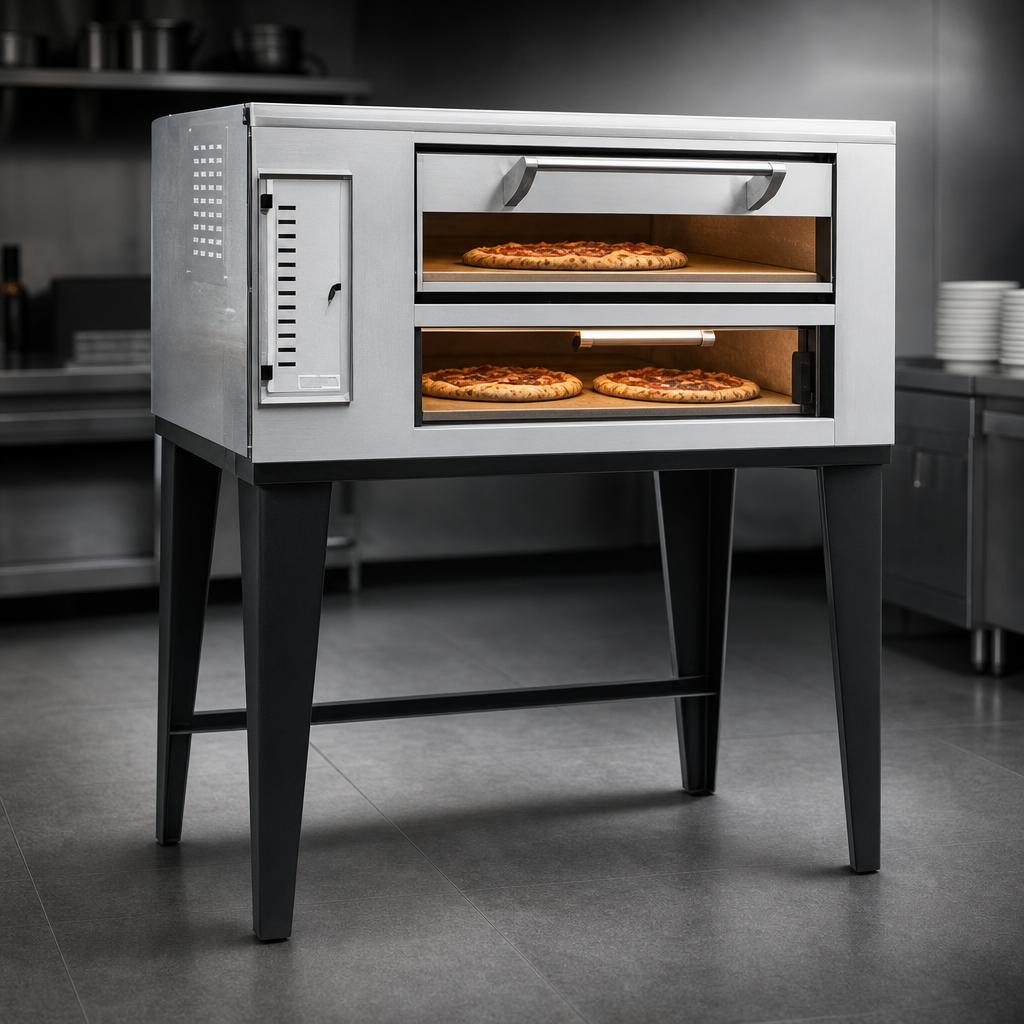

Each deck fits up to two 18" pies (four pies total), or a variety of pans for Sicilian, grandma-style, bread sticks and more.
Specifications
Model | SD 236 Double (Slice Series) |
---|---|
Fuel | Natural or Propane Gas |
Total Input | 100,000 BTU/hr (2 × 50,000) |
Baking Chambers | Two – 7" H × 24" W × 36" D |
Deck Construction | 1 ½" thick fire-brick composite |
Temperature Range | 300 °F – 650 °F (149 °C – 343 °C) |
Exterior Dimensions | 52" W × 31" D × 66" H |
Interior Material | Aluminized steel with slotted side baffles |
Gas Connection | ¾" NPT (rear) |
Flue Collar | 6" diameter |
Clearances | 0" sides; 3" rear for combustion air intake |
Shipping Weight | Approx. 1,490 lb (676 kg) |
Certifications | UL, UL EPH Classified |
Warranty | 18 months parts / 1 year labor |
Country of Origin | USA |
Popular Options (sold separately)
- Set of four heavy-duty casters (two locking)
- Fiberbrick-lined baking chamber
- Auto-start ignition timer
- Factory start-up service
Need help configuring gas type, accessories or start-up service? Contact our equipment specialists before ordering.
