Marsal (Middleby) SD-1060/SD-660 Pizza Ovens
Description

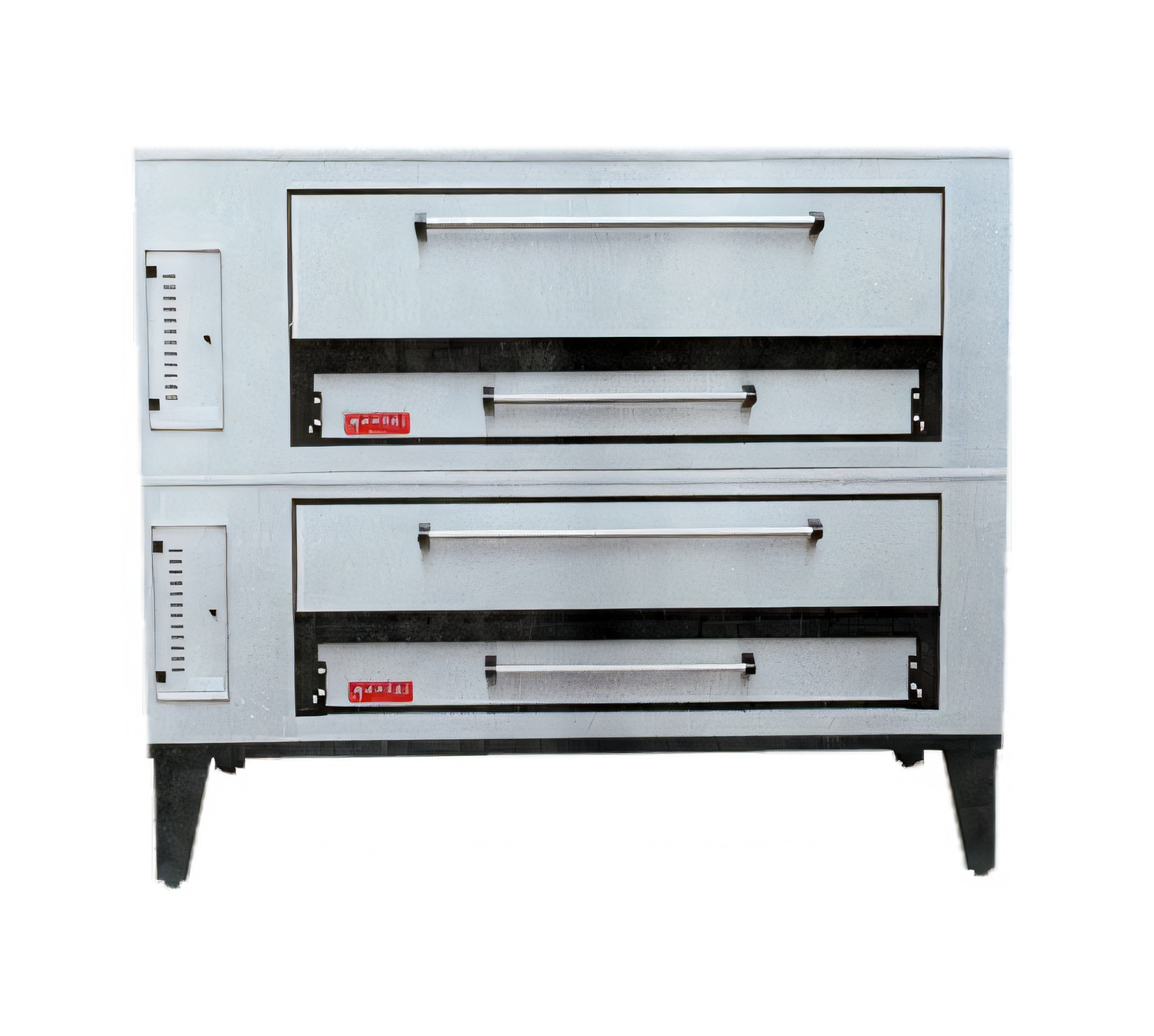

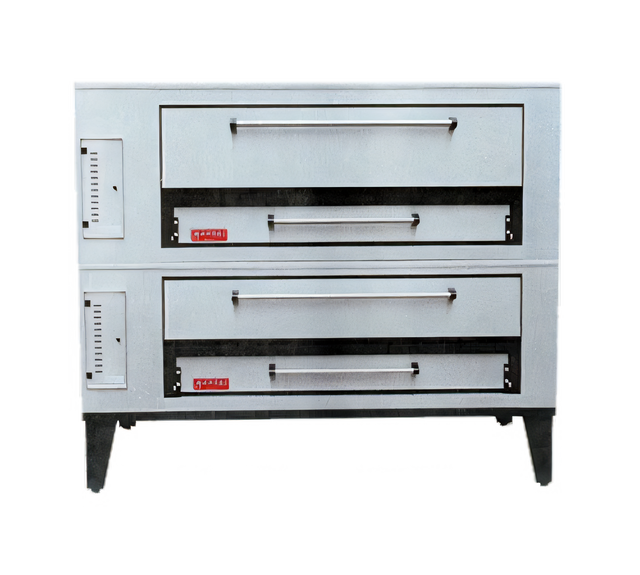

Marsal SD-1060 / SD-660 Stacked Gas Deck Pizza Oven
60" Wide • One 10"-High Deck + One 7"-High Deck • Made in the USAGive your kitchen the versatility of two different deck heights in one footprint. The SD-1060 / SD-660 combo pairs Marsal’s 10" and 7" door ovens to handle everything from Detroit-style pans to New York-thin pies—without slowing production. With exclusive left-to-right burners, 2" thick brick decks and precision 300-650 °F thermostats, every pie bakes evenly, crisps beautifully and exits the oven faster.
Why Operators Choose Marsal

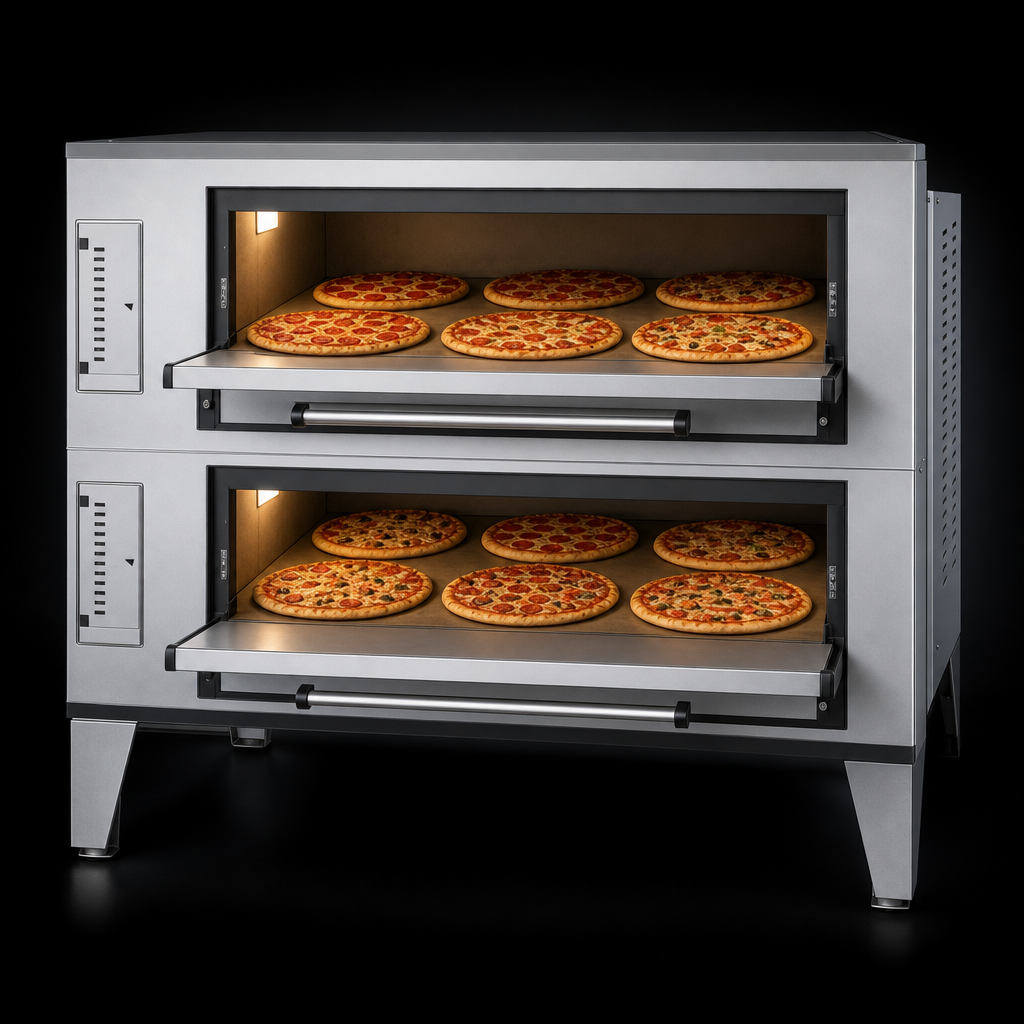

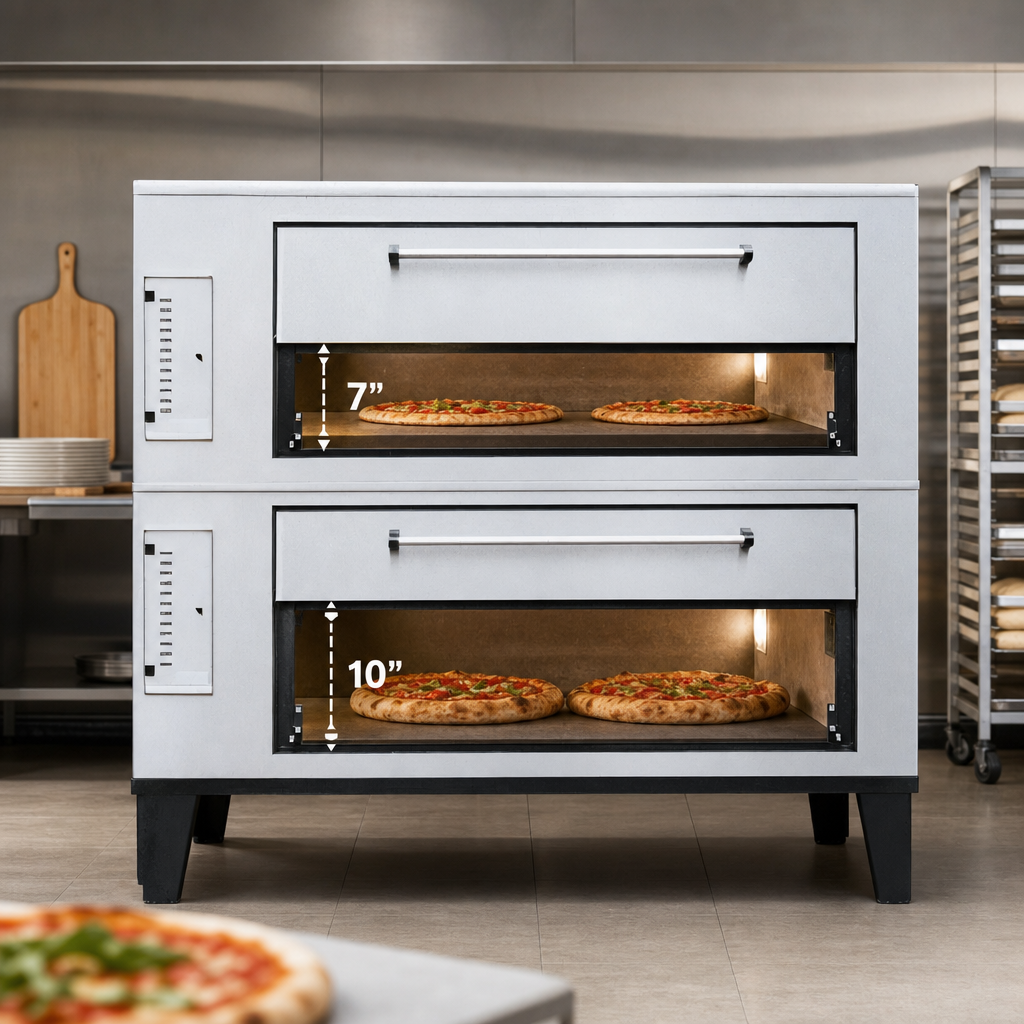

- Two full 36" × 60" baking chambers—top deck 7" high, bottom deck 10" high.
- 12-pie output (6 × 18" pies per deck) keeps up with peak-hour demand.
- 2" thick brick decks supply extra thermal mass for old-world crust texture.
- Exclusive left-to-right burner design distributes heat evenly; no pie rotation needed.
- Ultra-high-temperature fiberglass insulation allows 0" clearance on the sides.
- Spring-balanced doors open smoothly and seal heat in when shut.
- Heavy-duty, height-adjustable legs included; locking caster set optional.
- Stainless steel front, top, doors and sides with a durable aluminized-steel interior.
- Individually controlled 300-650 °F thermostats—fine-tune each deck for slices, pans or par-bakes.
- Built, tested and UL / UL EPH Classified in Essex Junction, Vermont.
- Backed by an 18-month parts / 1-year labor warranty.
At-A-Glance Specs
| Model | SD-1060 / SD-660 (stacked) |
|---|---|
| Total BTU | 260,000 BTU — Natural Gas (2 × 130,000) / 260,000 BTU LP (2 × 120,000) |
| Baking Chambers | (1) 36" × 60" × 10"H • (1) 36" × 60" × 7"H |
| Capacity | Up to 12 × 18" pies (6 per deck) |
| Temperature Range | 300 °F – 650 °F |
| Overall Dimensions | 66"H × 43.25"D × 80"W |
| Gas Connection | Two ¾" NPT inlets (one per deck) |
| Shipping Weight | ≈ 2,500 lb (1,134 kg) |
| Clearances | 0" sides • 3–4" rear (combustion air) |
| Certifications | UL, UL EPH Classified, NSF-compliant |
Popular Factory Options (extra cost)
- Set of four casters (two locking)
- Fibrebrick-lined baking chambers
- Autostart timer
Installation must conform to local codes. Provide adequate ventilation and a minimum of 3-4" clearance at the rear for combustion air flow.
