Description

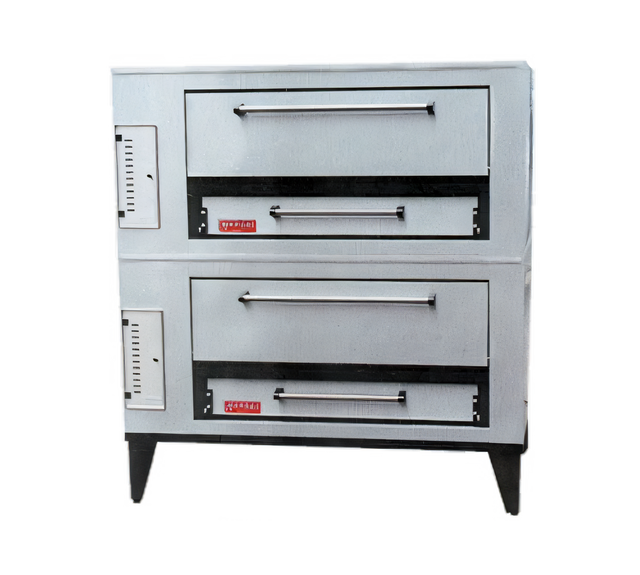

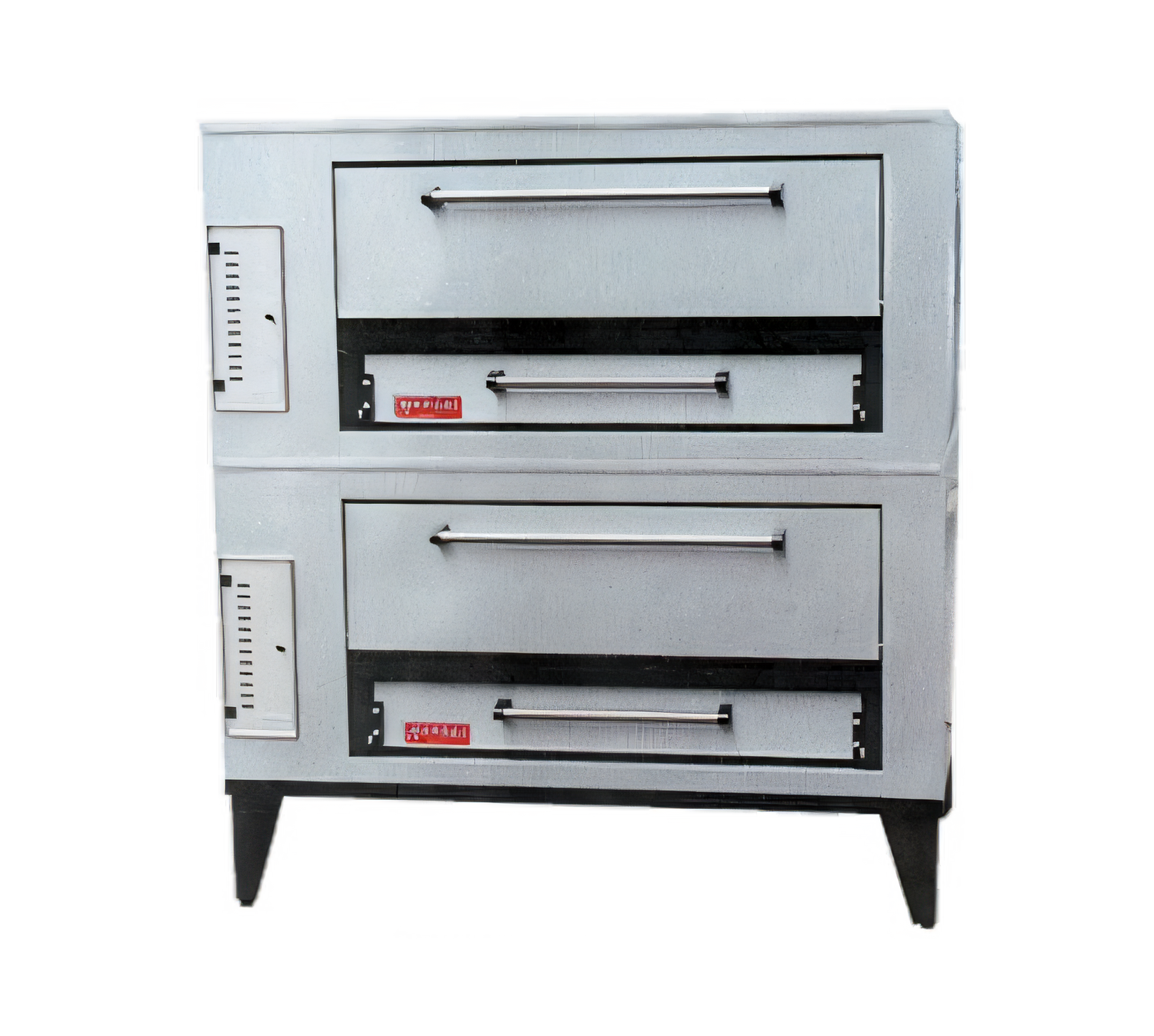

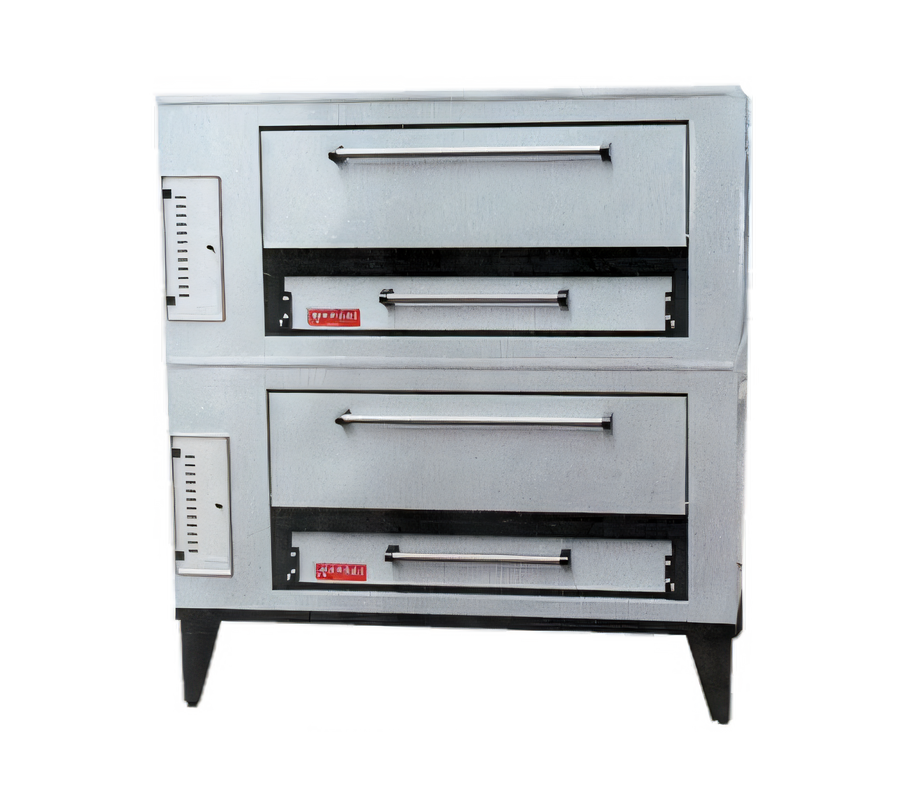

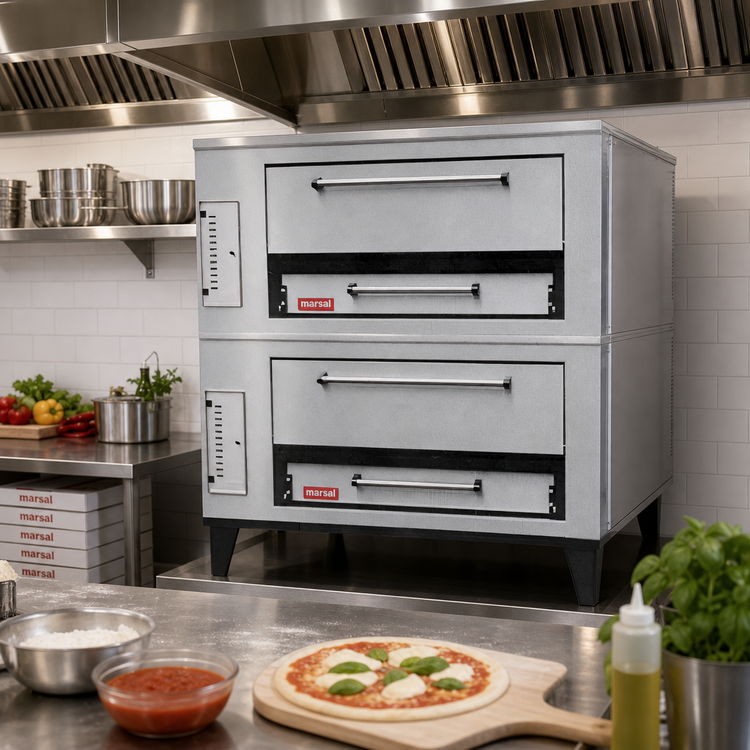

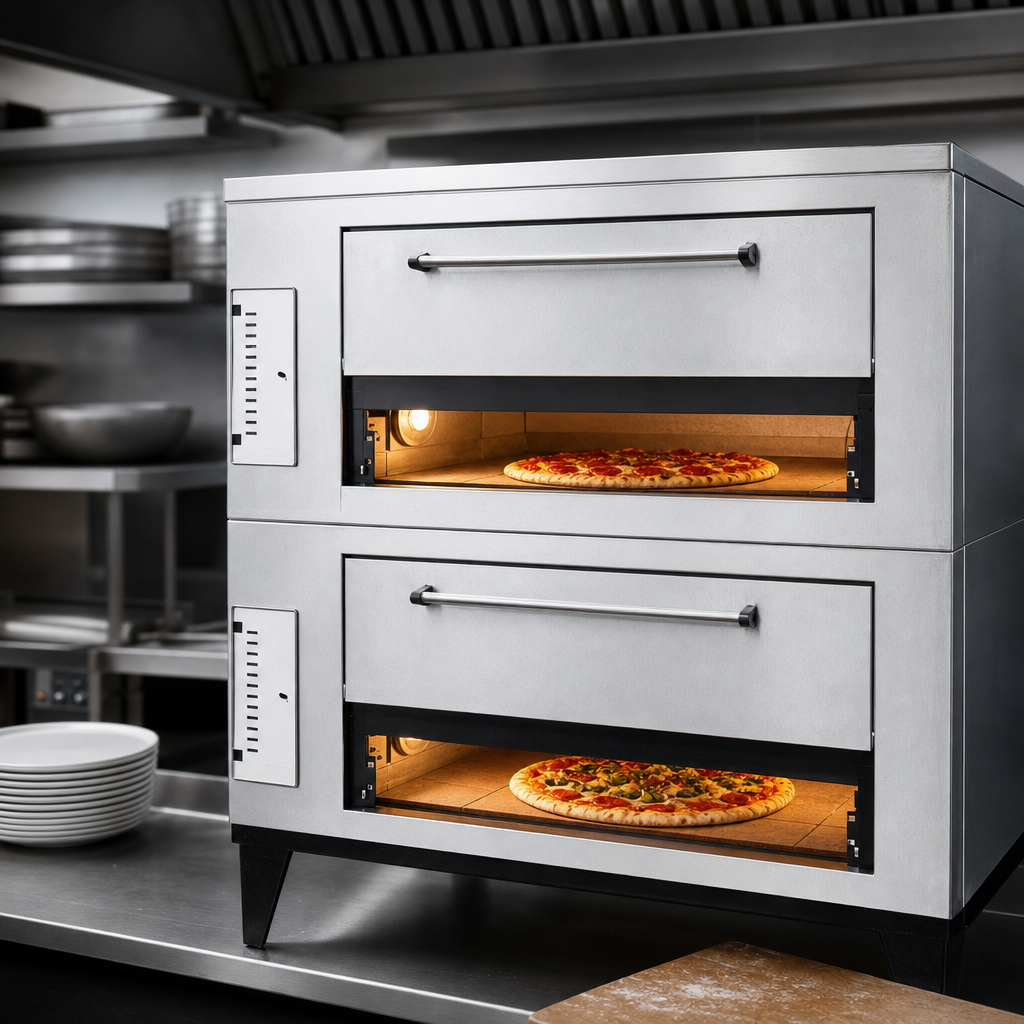

Marsal SD 1048 Stacked Gas Deck Pizza Oven

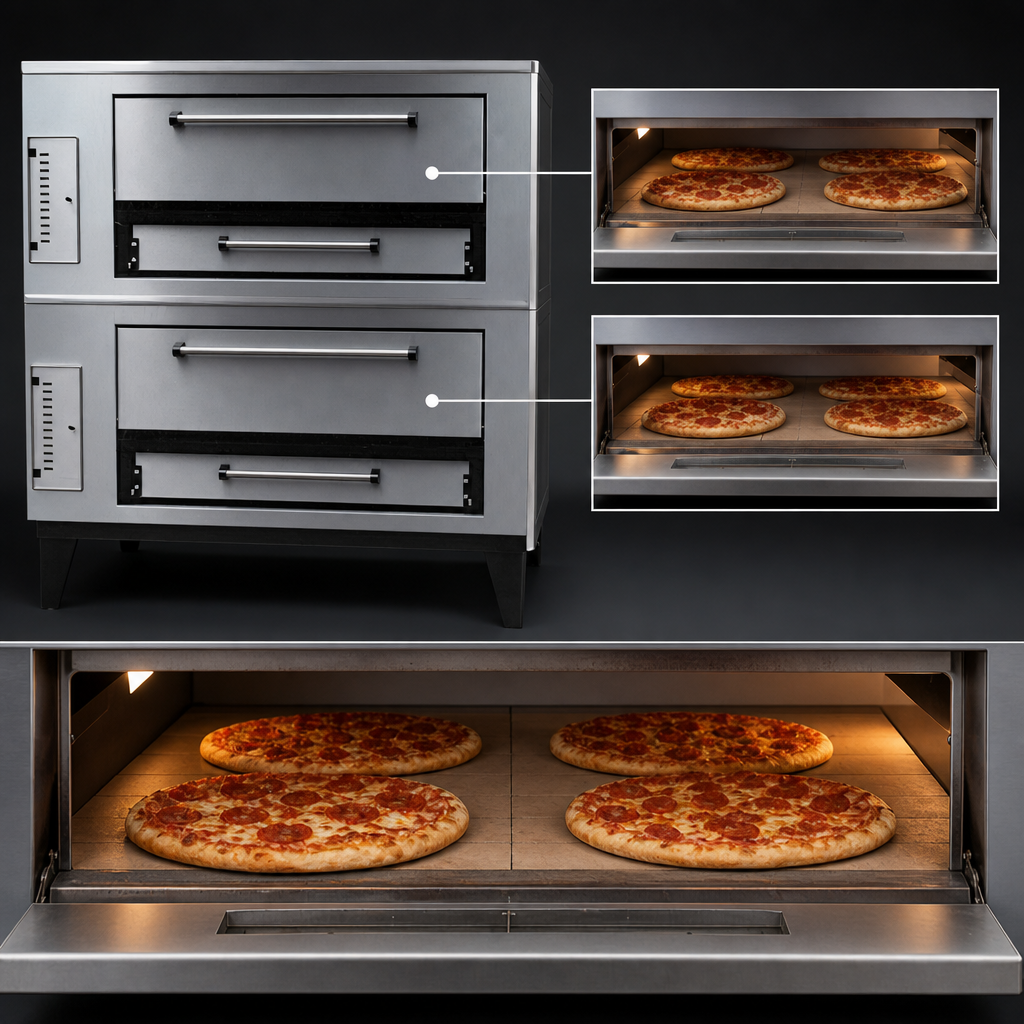

Double 36 ″ × 48 ″ brick decks | bakes up to eight 18 ″ pies

Engineered for high-volume, high-quality pizza production, the SD 1048 Stacked combines Marsal’s signature left-to-right burner system with massive 2″-thick brick decks and true 10″ door openings. The result is an evenly baked, crisp crust every time—without the need to rotate pies—while the 300 – 650 °F thermostat gives you the flexibility to perfect any style of pizza.

Key advantages
  • Two full-size 36 ″ × 48 ″ chambers—(4) 18 ″ pies per deck, (8) total.
  • 2″ thick refractory brick decks store and radiate heat for lightning-fast recovery.
  • Exclusive Marsal side-baffled burner distributes heat evenly—no hot spots.
  • Spring-balanced, counter-weighted doors for smooth, one-handed operation.
  • Ultra-high-temperature fiberglass insulation allows 0″ side clearance to combustibles.
  • Rugged 18-gauge stainless steel top, front, doors & sides; aluminized steel interior.
  • Thermostatically controlled 300 – 650 °F bake range concealed behind a vented control door.
  • Heavy-duty adjustable legs included; locking caster kit optional.
  • UL & UL EPH Classified, NSF-compliant, and proudly Made in the USA.
Specifications
Model SD 1048 Stacked (double deck)
Fuel type Natural gas or LP (field convertible)
Total input 190,000 BTU/hr (Natural) • 180,000 BTU/hr (LP)
Deck size 36 ″ × 48 ″ (each)
Deck height 10 ″ opening (each chamber)
Cooking capacity (4) × 18 ″ pies per deck • (8) total
Exterior dimensions (W × D × H) 65 ″ × 43.25 ″ × 70 ″
Clearances 0 ″ sides • 3 ″ rear for combustion air
Gas connection 3⁄4 ″ NPT (one per section)
Deck material 2 ″ refractory brick
Temperature range 300 – 650 °F mechanical thermostat
Certifications UL, UL EPH Classified (sanitation)
Warranty 18 months parts • 1 year labor
Country of origin Essex Junction, Vermont USA
Popular options (sold separately)
  • Set of four heavy-duty casters (2 locking)
  • Fiber-brick lined baking chamber
  • Auto-start timer
  • Factory start-up service
Installation note: A factory start-up should be scheduled before first use. All utility, ventilation and fire-suppression systems must be in place and operational prior to the technician’s arrival. Travel exceeding 100 miles round-trip may incur additional charges.

Looking for a 7 ″ door model or a single-deck oven? Browse the rest of the Marsal SD Series for more configurations.

Features & Specs

Manufacturer

Marsal (Middleby)

Certifications

UL, UL EPH Classified, Made in USA

Height

70.0in

Width

65.0in

Depth

43.25in

Shipping Weight

2070.0lbs

Height (per deck)

10"

Deck Construction

brick

Deck Depth (front - back)

36"

Deck Width (side - side)

48" - 59"

Number of Decks

2

Exterior Finish

all stainless steel exterior

Specifications

Pizza Oven, Deck Type, gas, stacked (2) 10"H x 36" x 48" baking chambers, (4) 18" pie capacity per deck , 2" thick brick decks, 300 - 650° thermostats, stainless steel top, front, doors & sides, aluminized steel interior, adjustable legs, 190,000 BTU, UL, UL EPH Classified, Made in USA
