Marsal (Middleby) MB-236 STACKED Slice Pizza Ovens
Description

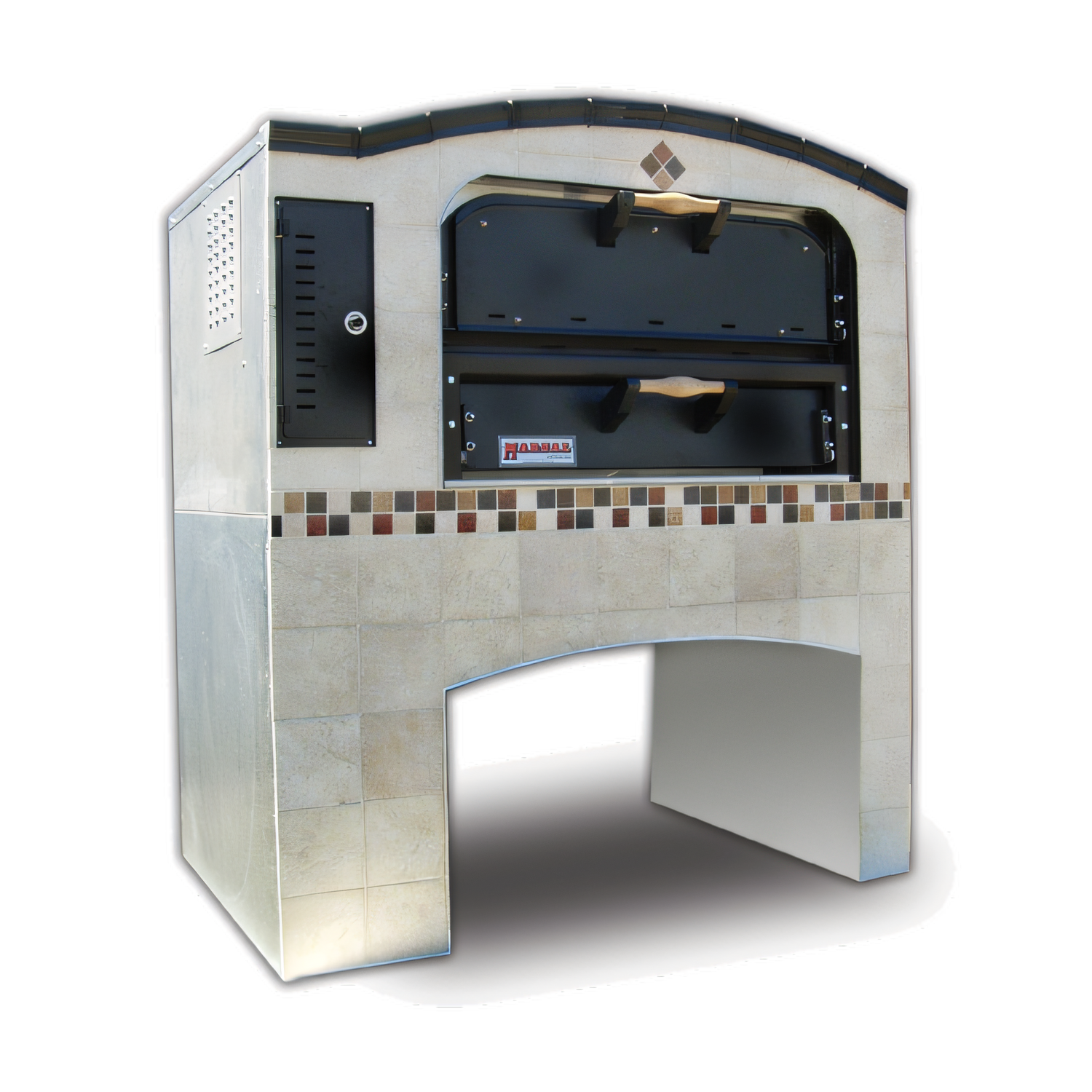

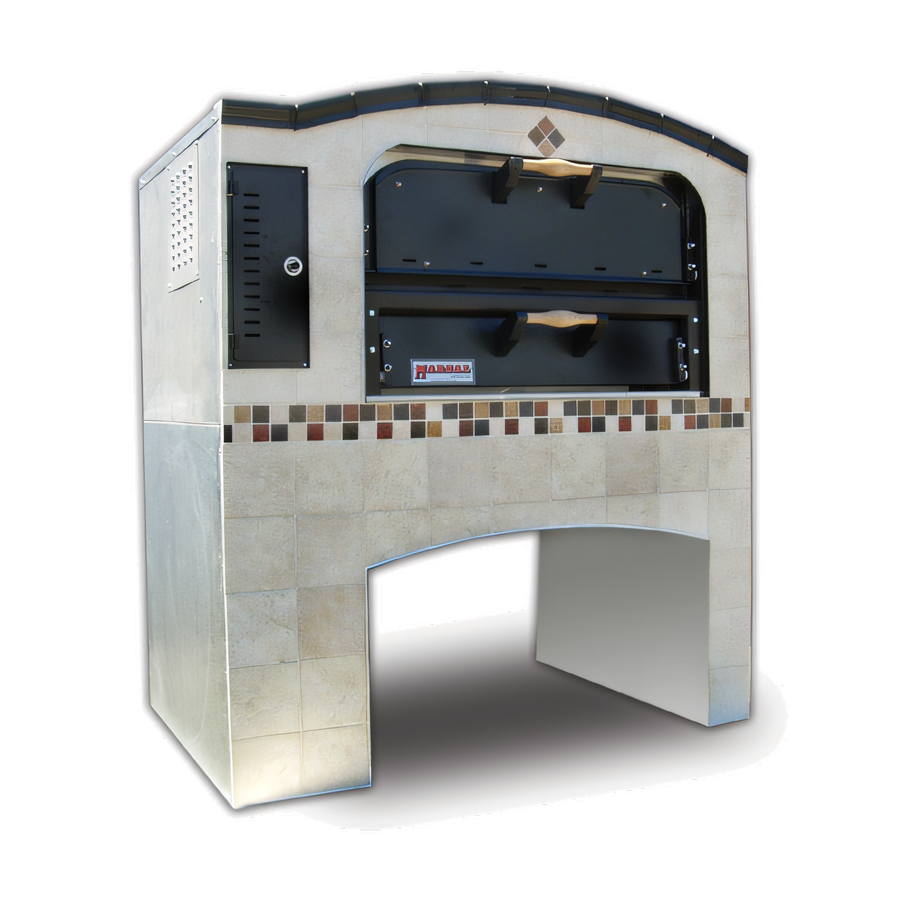

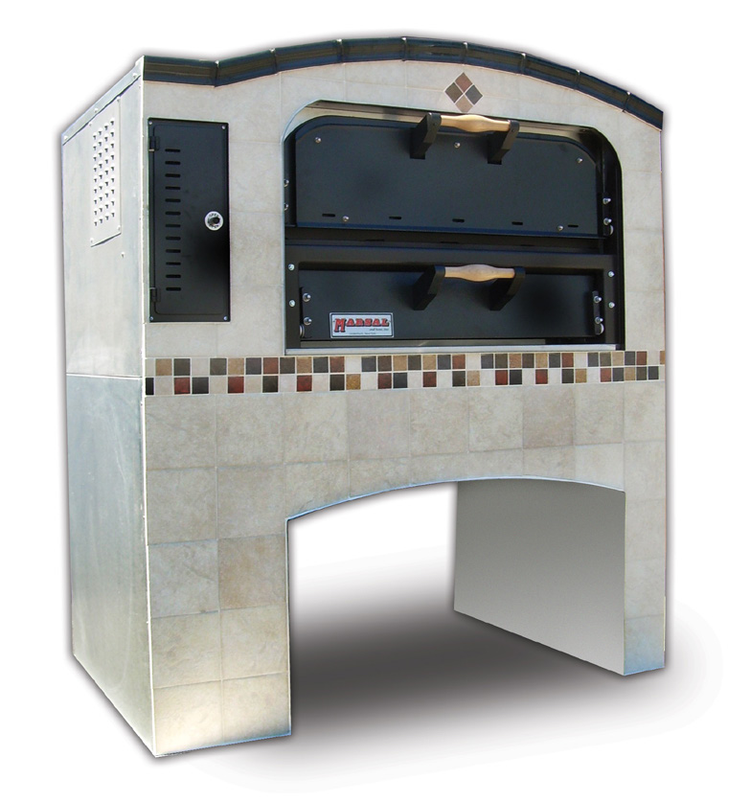

Marsal MB 236 Slice Series – Stacked Gas Deck Pizza Oven

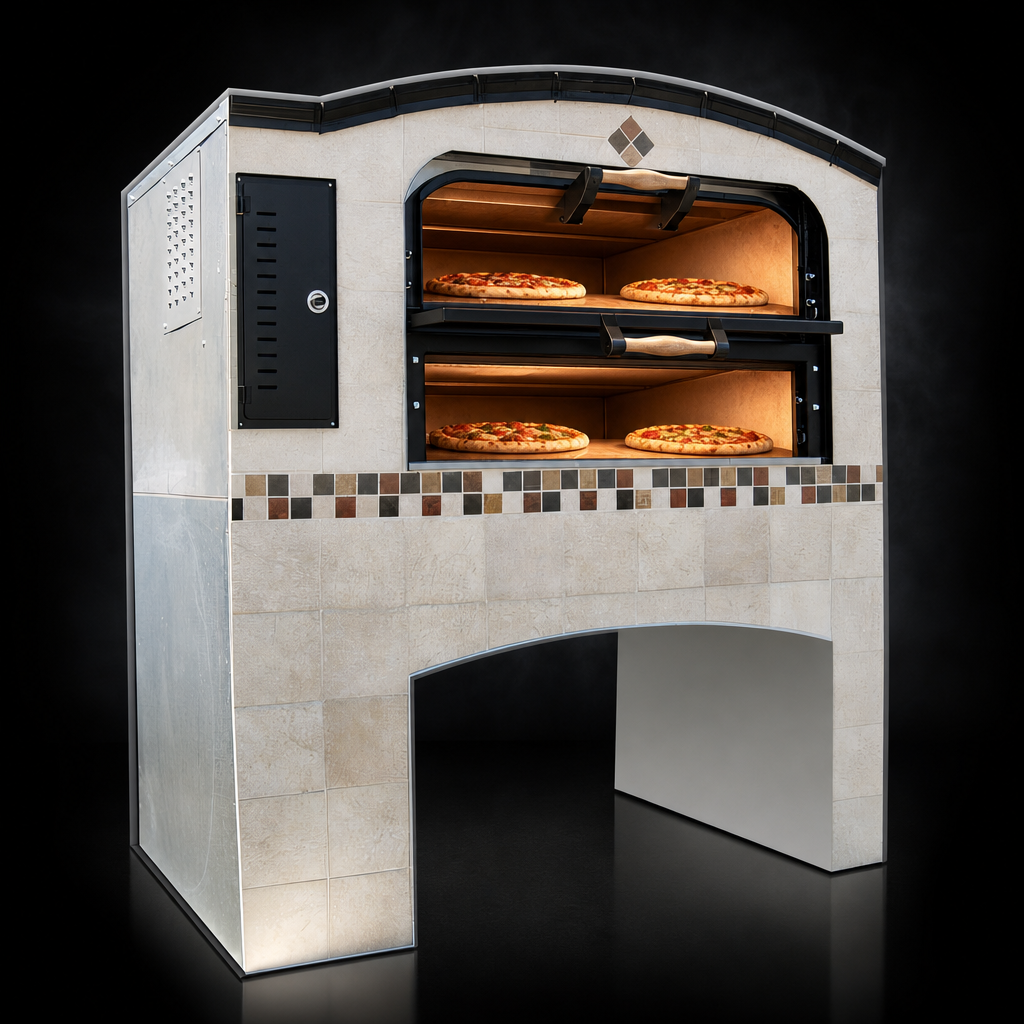

(2) 24" × 36" brick-lined decks | 100,000 BTU | Made in USABring authentic old-world bake to a slice program or tight kitchen footprint. The stacked MB 236 Slice oven combines Marsal’s signature brick-lined chamber with a shallow 24" deep deck, letting you fire up to four 16" pies at once while holding rock-steady temps from 300 °F to 650 °F—no rotation required.
Why You’ll Love It

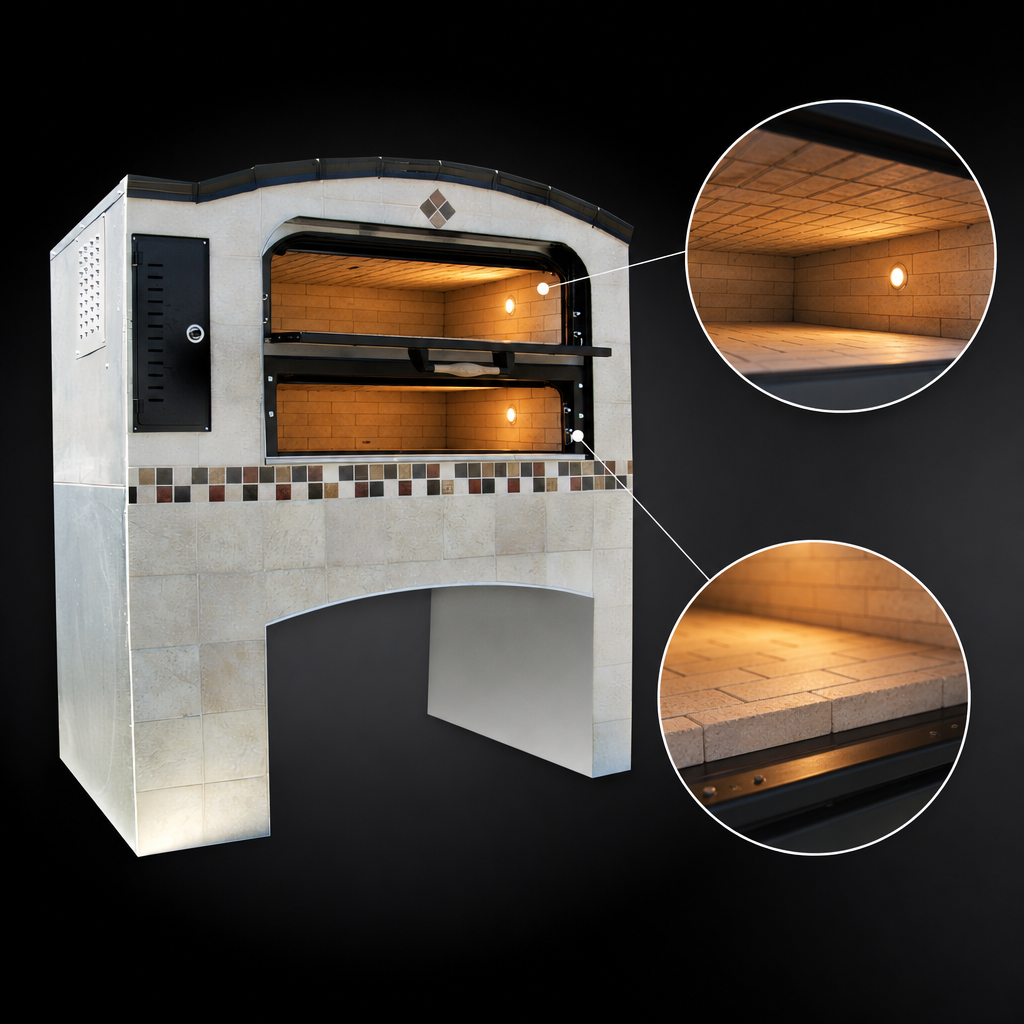

- Arched refractory brick-lined ceiling for even, efficient heat distribution.
- 1½" thick stone deck stores massive heat for crisp, classic crusts.
- Counter-balanced double-paneled door forms an air shield that keeps heat in and the cook line cool.
- Ultra-high-temperature fiberglass insulation allows 0" clearance on the sides.
- Left-to-right burner and under-deck air chamber eliminate hot spots—say goodbye to pie rotation.
- Thermostat adjusts quickly between 300 °F – 650 °F for deck-to-deck versatility.
- Durable stainless-steel top & sides stand up to high-volume commercial use.
- Field-convertible for natural or LP gas; 3⁄4" NPT gas inlets on each section.
Technical Specifications
| Deck size (W × D) | (2) 24" × 36" / 610 × 914 mm |
|---|---|
| Interior deck height | 6.5" / 165 mm |
| Input rate | 100,000 BTU/hr (2 × 50,000) – NAT or LP |
| Temperature range | 300 °F – 650 °F / 149 °C – 343 °C |
| Exterior dimensions | 52" W × 32" D × 70" H / 1321 × 813 × 1778 mm |
| Required clearances | 0" sides, 3" rear for combustion air |
| Shipping weight | 1,410 lb / 640 kg |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 18 months parts, 1 year labor |
Perfect For
- High-volume slice shops looking for compact depth.
- Bars, breweries & taprooms wanting consistent deck-oven quality.
- Ghost kitchens or mobile trailers where space is at a premium.
- Operators who want brick-oven flavor without wood-fired hassles.
Popular Options & Upgrades (sold separately)
- Flat, square-dome, or patented round-dome top designs.
- Rosebud or Whitestone brick veneer kits for a custom façade.
- Auto-start timer for effortless morning warm-ups.
- Heavy-duty legs or casters.
Installation must comply with all local gas and ventilation codes. Vent piping and hood not included.
