Mars Air Systems STD296-2UD-OB Unheated Air Curtain for 96-Inch Door, Two 1/2 HP Motors, Galvanized Steel Cabinet

SKU: STD296-2UD-OB
$2,041.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

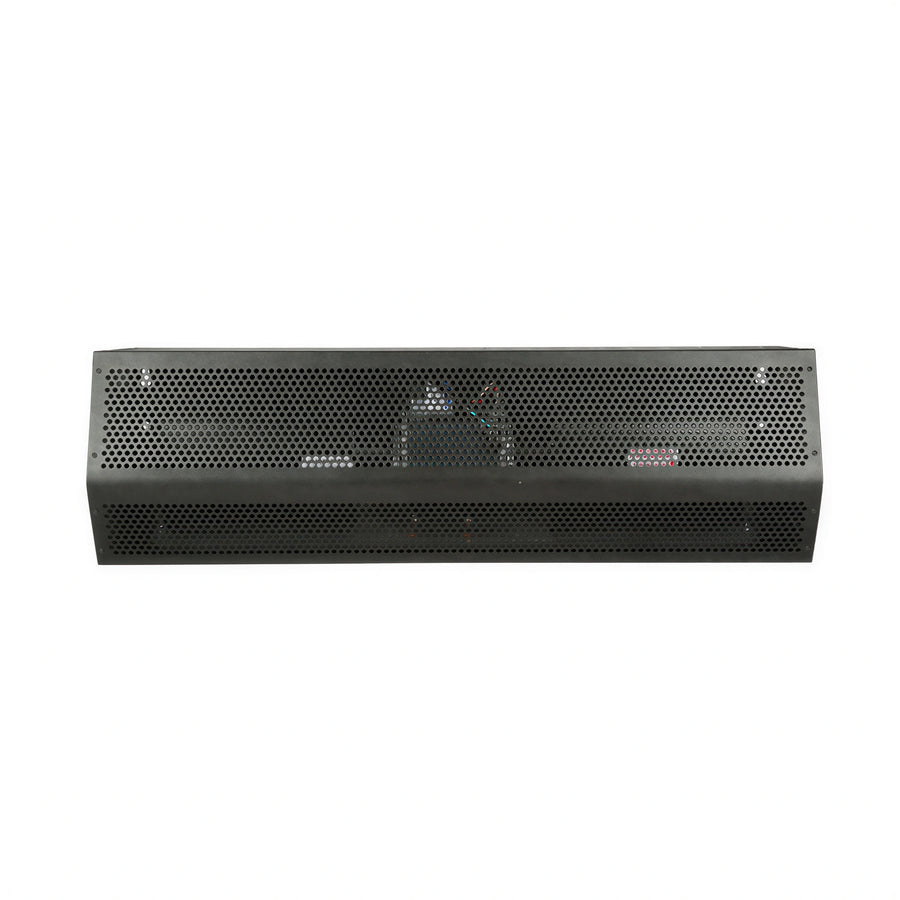

The Mars Air Systems STD296-2UD-OB is an unheated Standard Series 2 air curtain for a 96-inch door opening. It has two 1/2 HP motors, a galvanized steel cabinet, and an Obsidian Black powder coat finish.

  • 208–230 V, 60 Hz, single-phase electrical configuration
  • Adjustable air directional vanes with a 40° sweep front to back
  • Specified for openings up to 12 ft high
  • cETLus certified

Overall Dimensions:

96.0"W x 12.75"D x 12.13"H

Unheated operation

The unit is specified as an unheated air curtain.

96-inch coverage

Designed for a 96-inch door opening.

Two 1/2 HP motors

Uses two continuous-duty Totally Enclosed Air Over motors with NEMA 1 construction.

Adjustable air direction

Directional vanes provide a 40° sweep from front to back.

Galvanized steel cabinet

Finished with an Obsidian Black powder coat.

Series Standard 2
Type Unheated
Coverage width 96 in
Maximum opening height 12 ft
Motors 2
Horsepower per motor 1/2 hp
Motor construction TEAO, NEMA 1
Voltage 208–230 V
Phase Single phase
Frequency 60 Hz
Electrical power 1.1 kW
Full-load amperage 5.0 A
Cabinet material Galvanized steel
Cabinet finish Obsidian Black powder coat
Nozzle length 96 in
Maximum core velocity at nozzle 4247 fpm
Average velocity 1730 fpm
Air volume 2884 cfm
Velocity uniformity 85%
Power rating 1098 W
Sound level 68 dBA at 10 ft
Weight 135 lb

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Std2 unheated submittals PDF Download PDF Video PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is specified as an unheated air curtain.
It is specified for a 96-inch door opening.
The unit uses 208–230 V, 60 Hz, single-phase power and is rated at 5.0 A.
It has two 1/2 HP continuous-duty TEAO motors with NEMA 1 construction.
The product is 96 in wide, 12.75 in deep, and 12.13 in high, with a listed weight of 135 lb.
The product documentation specifies a 5-year parts warranty.
