Mars Air Systems

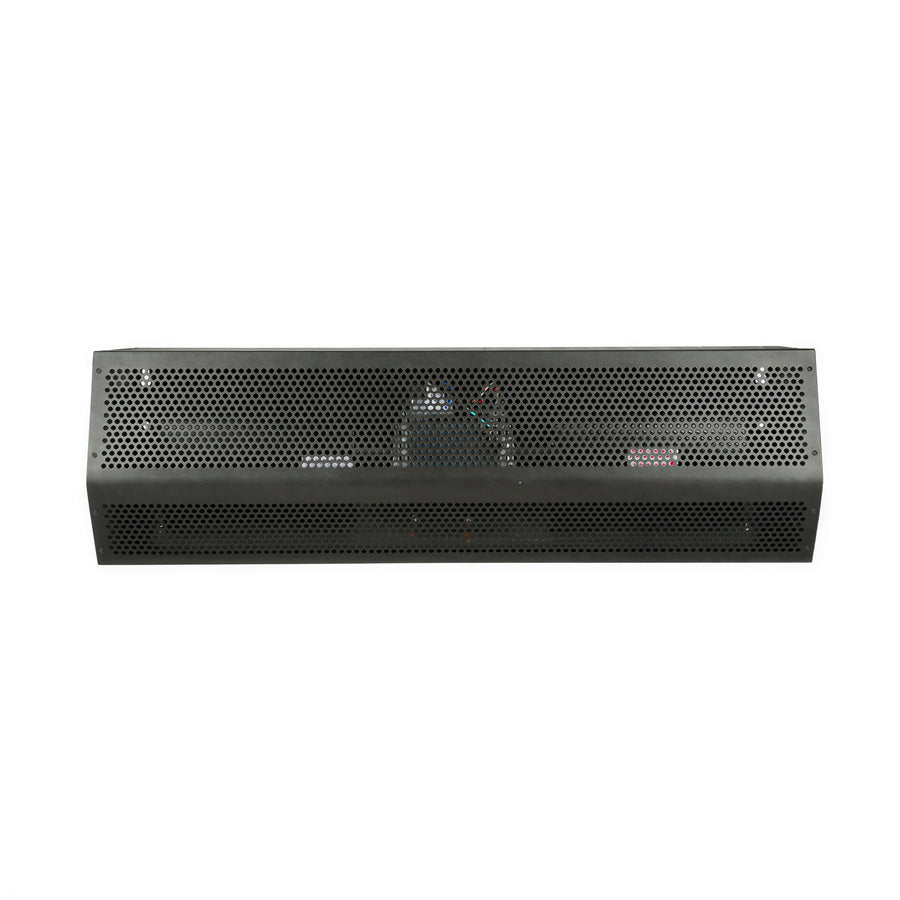

Mars Air Systems STD284-2UH-OB Unheated Air Curtain for 84 in Door, Two 1/2 HP Motors, Galvanized Steel Cabinet

SKU: STD284-2UH-OB
$2,116.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

Mars Air Systems STD284-2UH-OB is an unheated Standard Series 2 air curtain for an 84 in door opening. It has a galvanized steel cabinet with an Obsidian Black powder coat finish, two 1/2 hp motors, and a 460 V, 60 Hz, 3-phase electrical configuration.

  • Maximum opening height: 12 ft
  • Air volume: 2,836 cfm
  • Adjustable air directional vanes with a 40° front-to-back sweep
  • 5-year parts warranty

Overall Dimensions:

84.0"W x 12.75"D x 12.13"H

Unheated operation

Specified as an unheated air curtain.

84 in width

Sized for an 84 in door opening.

Two-motor configuration

Uses two 1/2 hp motors.

Galvanized steel cabinet

Finished in Obsidian Black powder coat.

Adjustable air direction

Air directional vanes provide a 40° sweep from front to back.

Electrical configuration

460 V, 60 Hz, 3-phase; 1.02 kW and 1.6 A.

Product type Unheated air curtain
Series Standard Series 2
Door width 84 in
Maximum opening height 12 ft
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Motors 2
Horsepower per motor 1/2 hp
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Power 1.02 kW
Current 1.6 A
Air volume 2,836 cfm
Maximum core velocity 4,865 fpm
Average velocity 1,945 fpm
Velocity uniformity 87%

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Std2 unheated submittals PDF Download PDF Video PDF Download PDF Collateral PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. The STD284-2UH-OB is specified as an unheated air curtain.
It is designed for an 84 in door opening.
The specified electrical configuration is 460 V, 60 Hz, 3-phase, with 1.02 kW and 1.6 A listed.
It has two 1/2 hp motors.
The product is 84.0 in wide, 12.75 in deep, and 12.13 in high.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
A 5-year parts warranty is specified.
