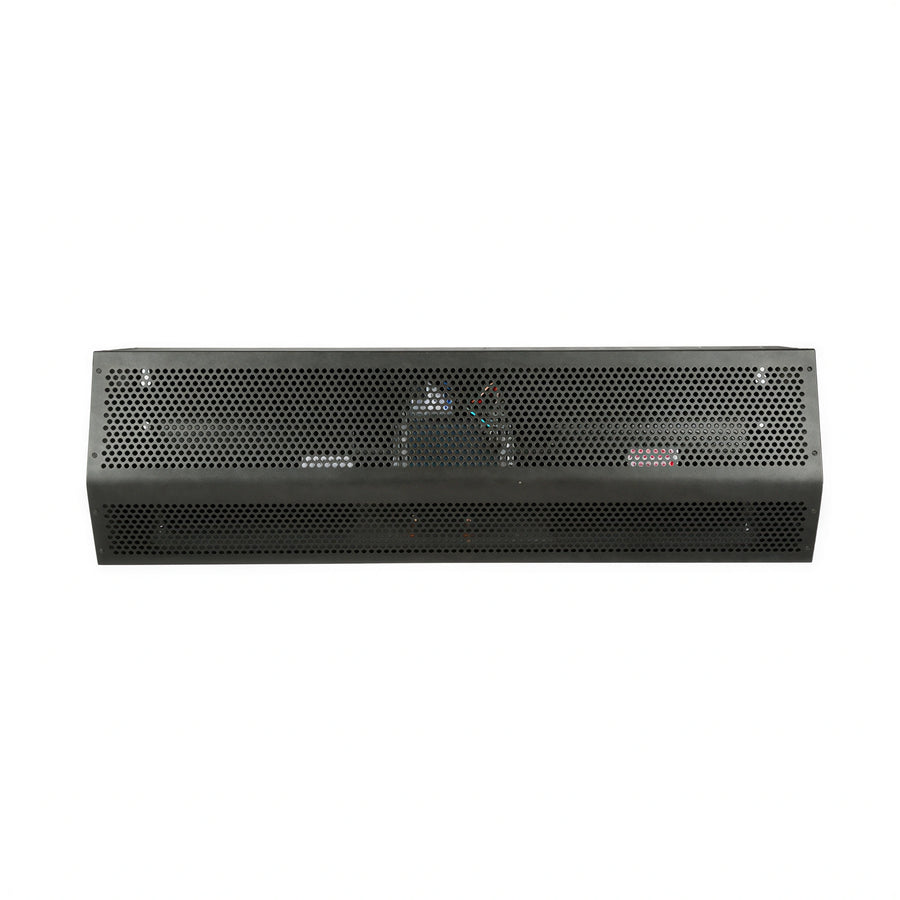

Mars Air Systems STD284-2UG-OB Unheated Air Curtain, 84"W, 2 Motors, Galvanized Steel Cabinet, Black Powder Coat

SKU: STD284-2UG-OB
$2,116.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems STD284-2UG-OB is an unheated 84-inch air curtain for openings up to 12 feet high.

It features a galvanized steel cabinet with an Obsidian Black powder coat finish, two 1/2 hp motors, and a 208–230 V, 60 Hz, three-phase electrical configuration.

  • Standard Series 2 construction
  • Two 1/2 hp motors
  • cETLus certified
  • 5-year parts warranty

Overall Dimensions:

84.0"W x 12.75"D x 12.13"H

Unheated configuration

This model is an unheated air curtain.

84-inch width

The unit has an 84-inch overall width.

Two-motor design

The unit uses two 1/2 hp motors.

Galvanized steel cabinet

The cabinet is constructed from galvanized steel.

Obsidian Black finish

The cabinet has an Obsidian Black powder coat finish.

Adjustable air direction

Adjustable air directional vanes provide a 40° sweep from front to back.

Three-phase electrical configuration

The model is specified for 208–230 V, 60 Hz, three-phase power.

Product type Unheated air curtain
Series Standard Series 2
Overall width 84 in
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Motors 2 motors
Horsepower per motor 1/2 hp
Voltage 208–230 V
Frequency 60 Hz
Phase 3-phase
Power 1.02 kW
Full-load amperage 3.6/3.2 A
Maximum opening height 12 ft
Nozzle length 84 in
Air volume 2,836 cfm
Maximum core velocity 4,865 fpm
Average velocity at nozzle 1,945 fpm
Velocity uniformity 87%

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Std2 unheated submittals PDF Download PDF Video PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download PDF Marketing sheet PDF Download

Frequently Asked Questions

No. The STD284-2UG-OB is an unheated air curtain.
The overall width is 84 inches.
It has two 1/2 hp motors.
It is specified for 208–230 V, 60 Hz, three-phase power, with 3.6/3.2 A full-load amperage.
The maximum opening height is 12 feet.
