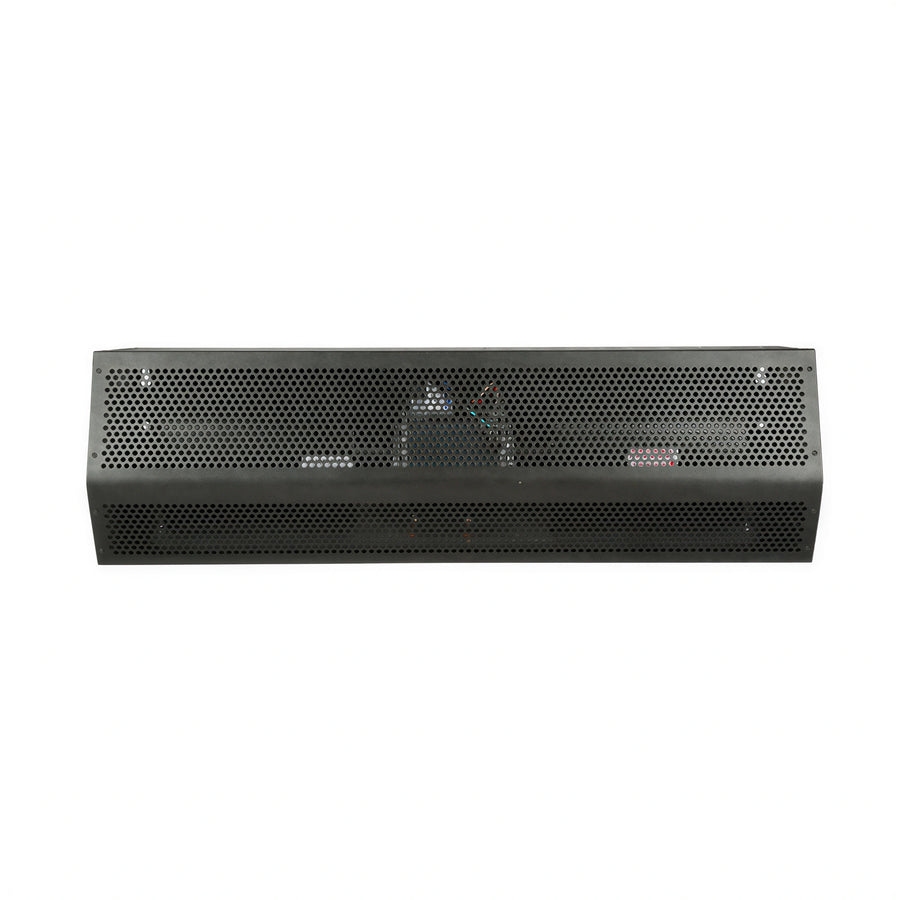

Mars Air Systems STD272-2UH-OB Unheated Air Curtain for 72" Door, Dual 1/2 HP Motors, Galvanized Steel Cabinet
The Mars Air Systems STD272-2UH-OB is an unheated Standard Series 2 air curtain specified for a 72 in door. It has a galvanized steel cabinet with an Obsidian Black powder coat finish and two 1/2 hp motors.
- 460 V, 60 Hz, three-phase electrical configuration
- 1.0 kW and 1.6 A specifications
- Maximum opening height of 12 ft
- Adjustable air directional vanes with a 40° sweep from front to back
Overall Dimensions:
72.0"W x 12.75"D x 12.13"HUnheated operation
The STD272-2UH-OB is an unheated air curtain.
72 in door width
The unit is specified for a 72 in door.
Dual motors
Two 1/2 hp motors are included in the configuration.
Galvanized steel cabinet
The cabinet is constructed from galvanized steel.
Obsidian Black finish
The cabinet has an Obsidian Black powder coat finish.
Three-phase electrical configuration
The specified electrical configuration is 460 V, 60 Hz, three phase, 1.0 kW, and 1.6 A.
Adjustable air direction
Adjustable air directional vanes provide a 40° sweep from front to back.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
