Mars Air Systems STD272-2UA-OB-UVP 72" Unheated Air Curtain with UVC and Dual 1/2 HP Motors

SKU: STD272-2UA-OB-UVP
$3,108.00
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

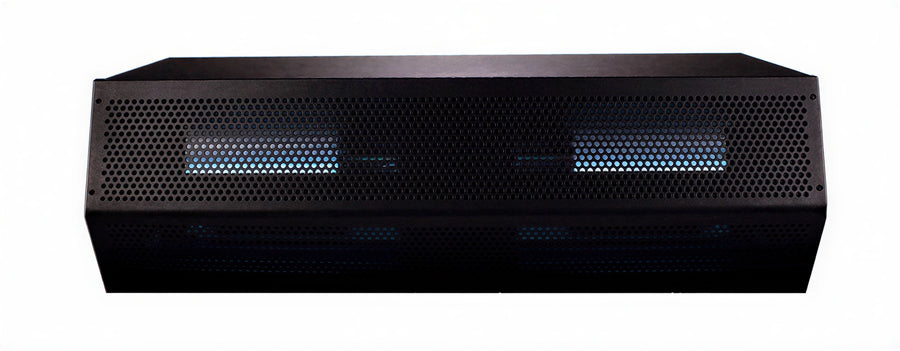

The Mars Air Systems STD272-2UA-OB-UVP is a 72-inch unheated air curtain designed for a 72-inch-wide door opening. It combines UVC eradication with two 1/2 HP motors in a galvanized steel cabinet with an Obsidian Black powder coat finish.

The unit operates at 115 V, 60 Hz, single phase and includes a cord and plug, 24 V control, and magnetic switch 99-018.

  • Standard Series 2 configuration
  • UVC package
  • Maximum opening height of 12 ft

Overall Dimensions:

72.0"W x 12.75"D x 12.13"H

UVC eradication

The exact model is specified with a UVC eradication package.

Unheated operation

This air curtain is specified as unheated.

Dual motor configuration

Two motors provide 1/2 HP each.

Electrical configuration

Operates at 115 V, 60 Hz, single phase, with 1.0 kW power and 10.2 A current.

Cabinet construction and finish

Galvanized steel cabinet with an Obsidian Black powder coat finish.

Included controls

Includes a 24 V control and surface-mounted magnetic switch 99-018.

Cord and plug

A cord and plug are specified for the unit.

Series Standard Series 2
Air curtain type Unheated
UVC package UVC eradication
Door width 72 in
Maximum opening height 12 ft
Motor count 2 motors
Horsepower per motor 1/2 hp
Voltage 115 V
Frequency 60 Hz
Phase 1 phase
Power 1.0 kW
Current 10.2 A
Control voltage 24 V
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Magnetic switch 99-018 included
Cord and plug Included

Frequently Asked Questions

No. The STD272-2UA-OB-UVP is specified as an unheated air curtain.
It is specified for a 72-inch-wide door opening.
The exact model is specified with UVC eradication.
It uses 115 V, 60 Hz, single-phase power, with a listed draw of 1.0 kW and 10.2 A. A cord and plug are specified.
The unit includes a 24 V control and magnetic switch 99-018.
The listed dimensions are 72 in. wide, 12.75 in. deep, and 12.13 in. high.
