Key specifications
- Amps
- 10.2 Amps
- Phase
- 1-Phase
- Dimensions
- 60.0"W × 12.75"D × 12.13"H
- Type
- Air Curtain
- Style
- Unheated
- Material
- Galvanized Steel
Spec sheet

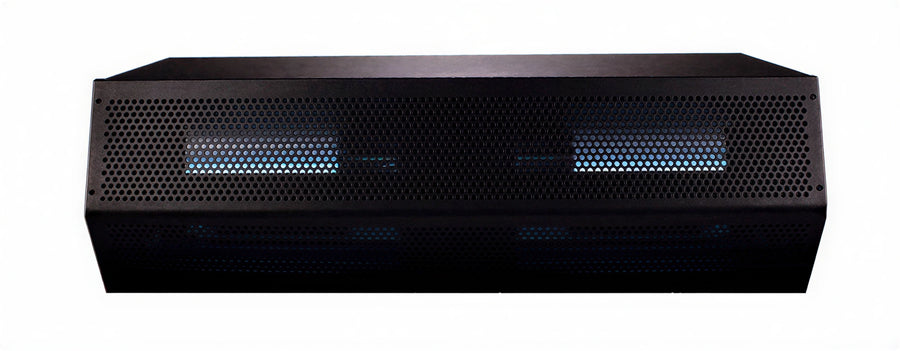

Mars Air Systems STD260-2UA-OB-UVP 60-Inch Unheated Air Curtain with UVC, Two 1/2 HP Motors
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Mars Air Systems STD260-2UA-OB-UVP is a 60-inch unheated air curtain for a 60-inch door opening. It uses two 1/2 HP motors and a UVC package.
The unit has a galvanized steel cabinet with an Obsidian Black powder coat finish and operates at 115 Volts, 60 Hz, single-phase, 940 Watts, and 10.2 Amps. A magnetic switch and 24 VAC control circuit are included.
- Maximum opening height: 12 ft
- Includes magnetic switch 99-018
- Includes cord and plug
- cETLus certified
Overall Dimensions:
60.0"W x 12.75"D x 12.13"HProduct Weight:
13.5 lbUVC Package
The UVP package uses a dual-bulb UVC and UVV design for airstream treatment.
Unheated Design
Provides air-curtain operation without a heating function.
Motor Configuration
Uses two 1/2 HP motors.
Magnetic Switch
Includes a surface-mounted magnetic switch, part 99-018.
Low-Voltage Control
Includes a 24 VAC control circuit.
Variable-Speed Control
A factory-installed variable-speed switch allows fan speed adjustment.
Cabinet Finish
The galvanized steel cabinet has an Obsidian Black powder coat finish.
Junction Box
A top-mounted, factory-wired junction box with labeled wires is provided for field wiring.
