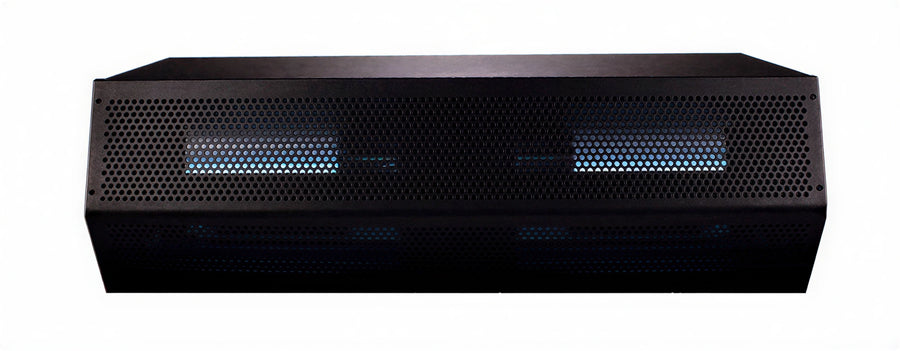

Mars Air Systems STD242-1UA-OB-UVP Unheated Air Curtain with UVC for 42 in Door, 1/2 HP Motor
SKU: STD242-1UA-OB-UVP
$1,944.60
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems STD242-1UA-OB-UVP is an unheated Standard Series 2 air curtain sized for a 42 in door. It features a UVC package, one 1/2 hp motor, a galvanized steel cabinet with an Obsidian Black powder coat finish, and a 115 V electrical configuration.
- Includes a magnetic switch, part 99-018, and 24 V control.
- Supplied with a cord and plug.
Overall Dimensions:
42.0"W x 12.75"D x 12.13"HUVC package
Includes a UVC package for this unheated air curtain.
Door coverage
Sized for a 42 in wide door.
Motor
Uses one 1/2 hp motor.
Cabinet
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Controls
Includes a 24 V control and magnetic switch 99-018.
Electrical configuration
Operates at 115 V, 60 Hz, single phase, with a 510 W rating and 5.1 A current.
Cord and plug
Includes a cord and plug.
Maximum opening height
Listed for openings up to 12 ft high.
Series
Standard Series 2
Air curtain type
Unheated
Door width
42 in
UVC package
Included
Motors
1
Horsepower per motor
1/2 hp
Maximum opening height
12 ft
Voltage
115 V
Frequency and phase
60 Hz, 1 phase
Power
510 W
Current
5.1 A
Control voltage
24 V
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Magnetic switch
Included; part 99-018
Cord and plug
Included
Certifications & Compliance
Frequently Asked Questions
No. The STD242-1UA-OB-UVP is an unheated air curtain.
It is designed for a 42 in wide door.
Yes. This model includes a UVC package.
It uses 115 V, 60 Hz, single-phase power and is rated at 510 W and 5.1 A.
Yes. A magnetic switch, part 99-018, is included.
The listed maximum opening height is 12 ft.
