Play manufacturer video for Mars Air Systems STD242-1UA-OB Unheated Air Curtain for 42-Inch Door, 1/2 HP Motor, Black Galvanized Steel CabinetMars Air Systems STD242-1UA-OB Unheated Air Curtain for 42-Inch Door, 1/2 HP Motor, Black Galvanized Steel Cabinet
SKU: STD242-1UA-OB
$1,029.00
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

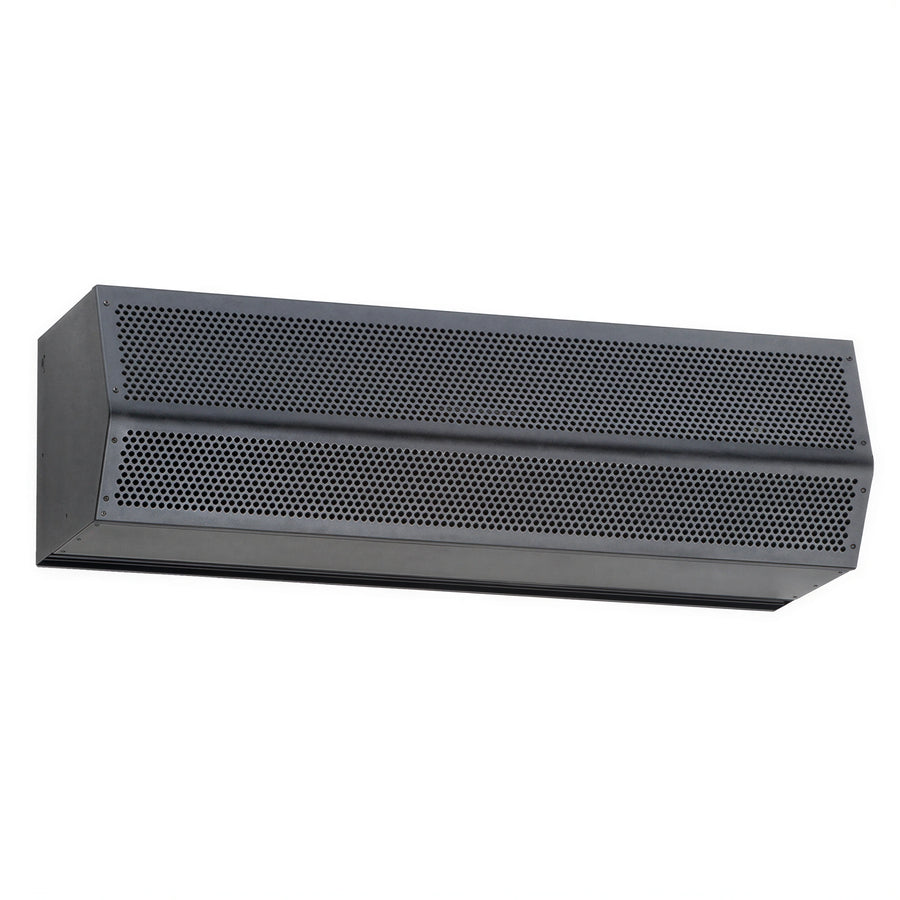

The STD242-1UA-OB is an unheated air curtain designed for a 42-inch door opening. It has a galvanized steel cabinet with an Obsidian Black powder coat finish and one 1/2 hp motor.
- 115 V, 60 Hz, single-phase electrical configuration
- 510 W power rating and 5.1 A full-load amperage
- Adjustable air directional vanes with a 40-degree front-to-back sweep
- Maximum opening height of 12 ft
Overall Dimensions:
42.0"W x 12.75"D x 12.13"HUnheated operation
Designed without a heating function for unheated air curtain applications.
42-inch width
Sized for a 42-inch door opening.
Single motor
Uses one 1/2 hp continuous-duty TEAO motor with NEMA 1 construction.
Adjustable air direction
Air directional vanes provide a 40-degree front-to-back sweep.
Galvanized steel cabinet
Cabinet construction is galvanized steel with an Obsidian Black powder coat finish.
Series
Standard Series 2
Type
Unheated
Door width
42 in
Maximum opening height
12 ft
Motor count
1 motor
Motor horsepower
1/2 hp
Motor type
Continuous-duty TEAO, NEMA 1
Voltage
115 V
Frequency
60 Hz
Phase
1 phase
Power
510 W
Full-load amperage
5.1 A
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. The STD242-1UA-OB is an unheated air curtain.
It is designed for a 42-inch door opening.
The unit is rated for 115 V, 60 Hz, single-phase power and draws 5.1 A.
It has one 1/2 hp motor.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
