Key specifications
- Amps
- 0.8 Amps
- Phase
- 3-Phase
- Dimensions
- 36.0"W × 12.75"D × 12.13"H
- Type
- Air Curtain
- Style
- Unheated
- Installation Type
- Wall Mounted
Spec sheet

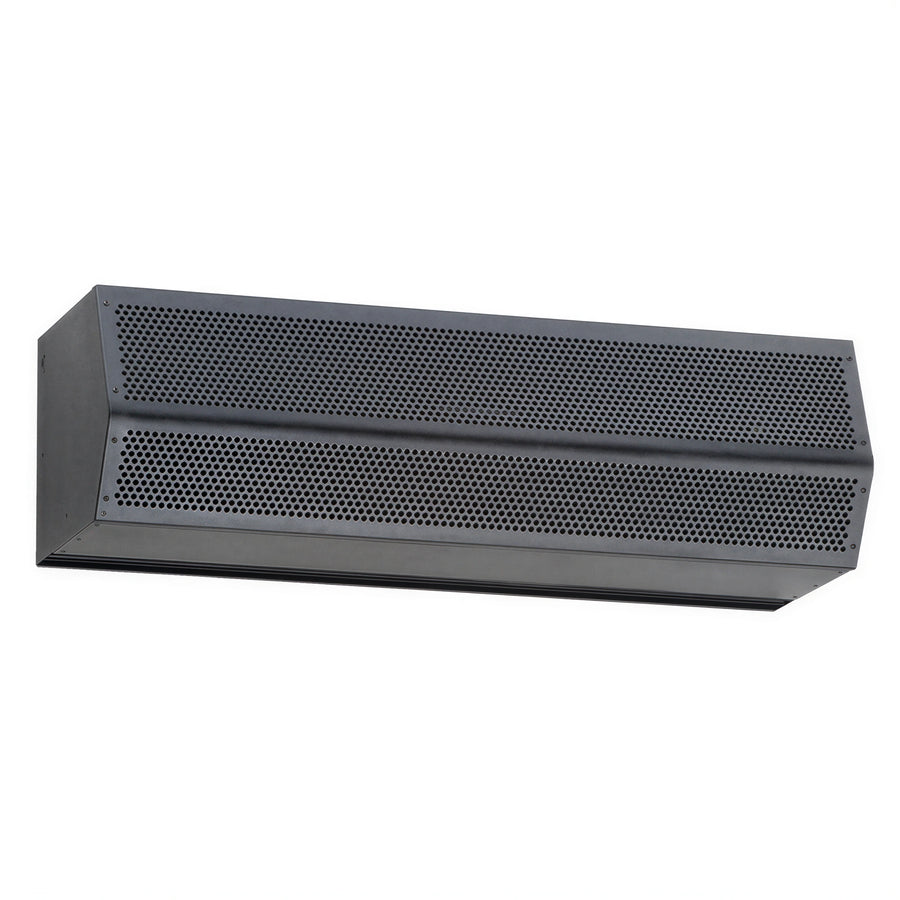

Mars Air Systems STD236-1UH-OB Unheated Air Curtain for 36" Door, Galvanized Steel Cabinet, 1/2 HP Motor
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Unheated air curtain: The Mars Air Systems STD236-1UH-OB is designed for a 36-inch door opening.
It has a galvanized steel cabinet with an Obsidian Black powder coat finish and one 1/2 HP TEAO motor. The unit is specified for 460 Volts, 3-Phase, 60 Hz, 500 Watts, and 0.8 Amps.
- Maximum opening height: 12 ft
- AMCA certified lab data: 5,960 fpm maximum core velocity, 2,206 fpm average velocity, 1,379 cfm volume, and 84% uniformity
- Adjustable air directional vanes with a 40° sweep from front to back
Overall Dimensions:
36.0"W x 12.75"D x 12.13"HProduct Weight:
21.0 lbUnheated Operation
Designed as an unheated air curtain.
36-Inch Door Coverage
Specified for a 36-inch-wide door.
Galvanized Steel Cabinet
The cabinet is made of galvanized steel.
Obsidian Black Finish
The cabinet has an Obsidian Black powder coat finish.
TEAO Motor
Uses one continuous-duty Totally Enclosed Air Over motor rated at 1/2 HP.
Adjustable Air Direction
Air directional vanes provide a 40° sweep from front to back.
AMCA Airflow Data
The exact model's certified lab data lists 5,960 fpm maximum core velocity, 2,206 fpm average velocity, 1,379 cfm volume, and 84% uniformity.
