Key specifications
- Amps
- 5.4/4.8 Amps
- Phase
- 3-Phase
- Dimensions
- 120.0"W × 12.75"D × 12.13"H
- Type
- Air Curtain
- Style
- Unheated
- Installation Type
- Wall Mounted
Spec sheet

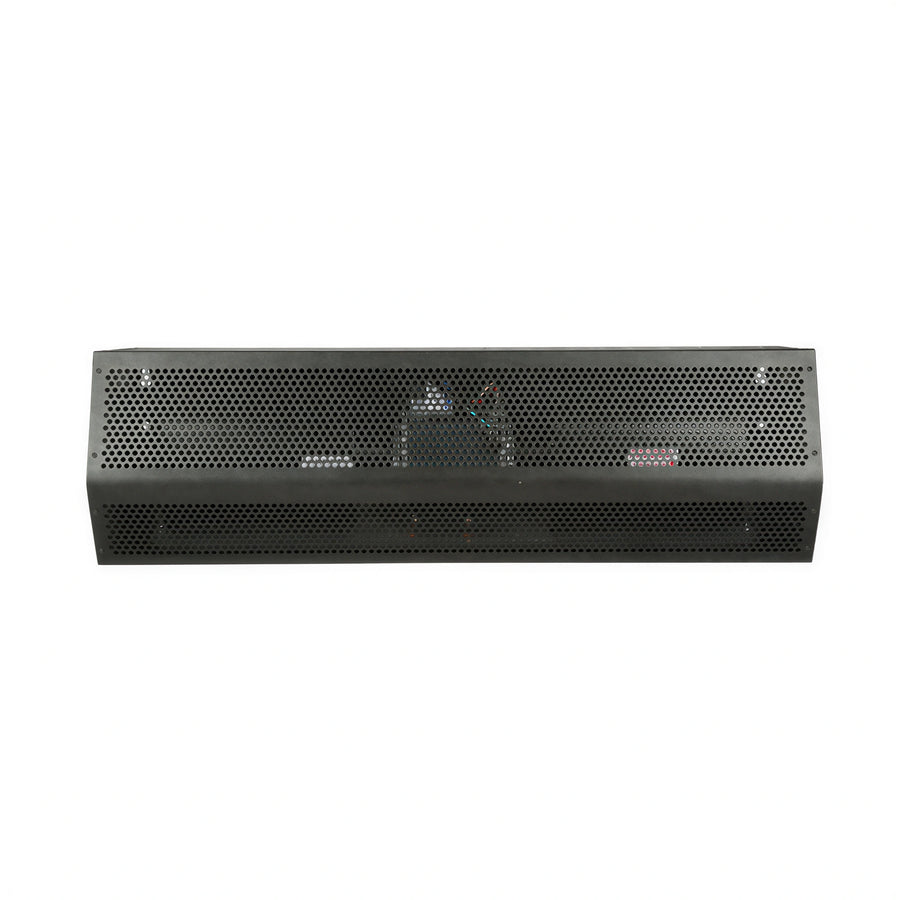

Mars Air Systems STD2120-3UG-OB Unheated Air Curtain for 120 in Door, 3 Motors, Galvanized Steel Cabinet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Mars Air Systems STD2120-3UG-OB is an unheated air curtain specified for a 120 in door. It has a galvanized steel cabinet with an Obsidian Black powder coat finish and three 1/2 HP continuous-duty TEAO motors.
- 208-230 V, 60 Hz, 3-phase electrical configuration
- 1.57 kW power rating and 5.4/4.8 amp rating
- Adjustable air directional vanes with a 40-degree sweep front to back
- Documented application range includes environmental separation up to 12 ft and insect control up to 10 ft
Overall Dimensions:
120.0"W x 12.75"D x 12.13"HProduct Weight:
98.06 lbUnheated Operation
This model is specified as unheated.
120 in Door Width
Specified for a 120 in door.
Three Motors
Includes three 1/2 HP continuous-duty TEAO motors.
Galvanized Steel Cabinet
The cabinet is made of galvanized steel.
Obsidian Black Finish
The cabinet has an Obsidian Black powder coat finish.
Adjustable Air Direction
Adjustable air directional vanes provide a 40-degree sweep front to back.
Three-Phase Electrical Configuration
Rated for 208-230 Volts, 60 Hz, and 3-Phase operation.
