Key specifications
- Amps
- 5.4/4.8 Amps
- Phase
- 3-Phase
- Dimensions
- 108.0"W × 12.75"D × 12.13"H
- Type
- Air Curtain
- Style
- Unheated
- Installation Type
- Wall Mounted
Spec sheet

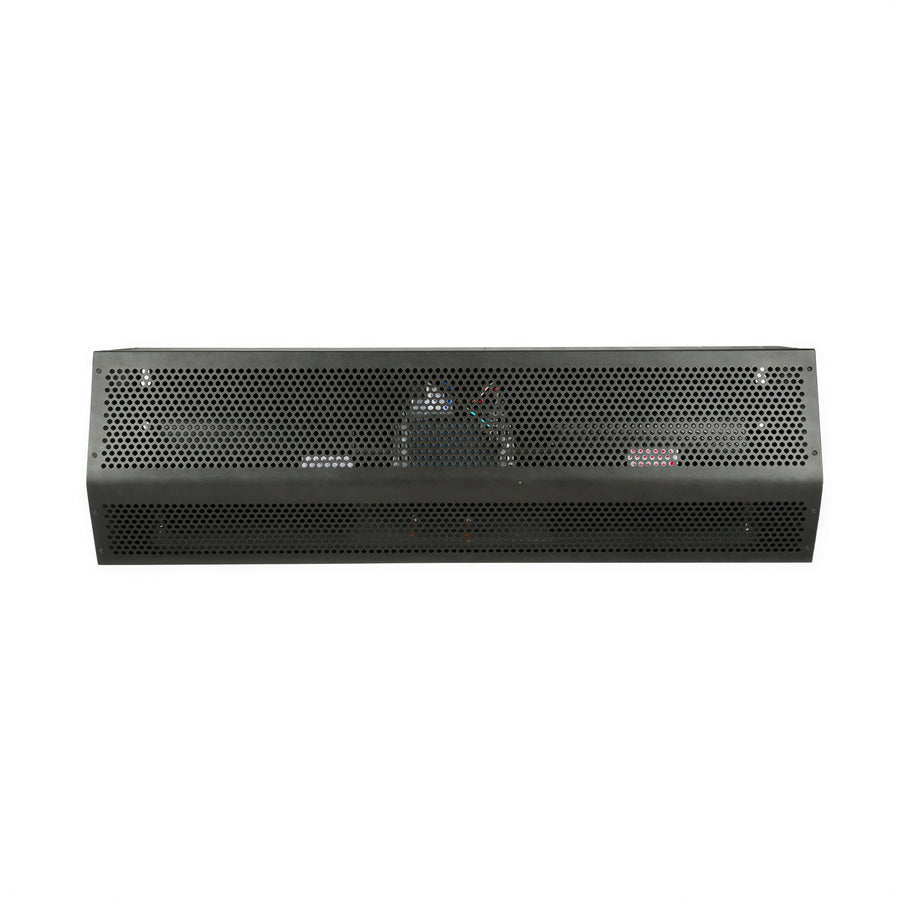

Mars Air Systems STD2108-3UG-OB Unheated Air Curtain, 108" Wide, 12' Max Opening, 3 Motors
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Mars Air Systems STD2108-3UG-OB is an unheated air curtain sized for a 108-inch door and a maximum opening height of 12 feet.
It has a galvanized steel cabinet with an Obsidian Black powder coat finish and three 1/2 HP continuous-duty TEAO motors. Electrical specifications are 208-230 V, 60 Hz, 3-phase, 1.5 kW, and 5.4/4.8 amps.
- Adjustable air directional vanes with a 40° front-to-back sweep
- cETLus certification
- Made in the USA
Overall Dimensions:
108.0"W x 12.75"D x 12.13"HProduct Weight:
40.0 lbUnheated Operation
This model is specified as an unheated air curtain.
Door Opening Coverage
The 108 in unit is listed for a maximum opening height of 12 ft.
Three-Motor Drive
Three 1/2 HP continuous-duty Totally Enclosed Air Over motors are specified with NEMA 1 motor designation.
Adjustable Air Direction
Adjustable air directional vanes provide a 40° sweep from front to back.
Cabinet and Finish
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Electrical Configuration
The unit is specified for 208-230 Volts, 60 Hz, 3-Phase operation, with 1.5 kW power and 5.4/4.8 Amps.
