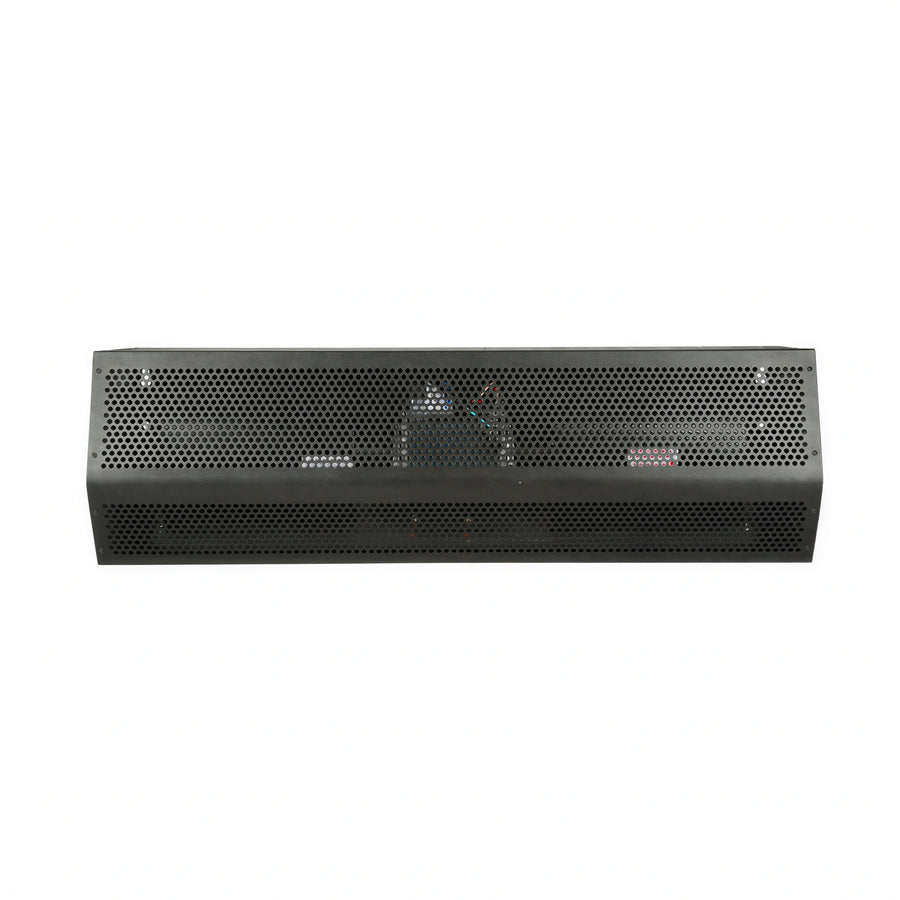

Mars Air Systems STD2108-3UD-OB Unheated Air Curtain, 108 in. Wide, 3 Motors, Galvanized Steel Cabinet

SKU: STD2108-3UD-OB
$2,772.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems STD2108-3UD-OB is an unheated Standard 2 air curtain for a 108 in. wide door opening. It operates at 208–230 V, 60 Hz, single phase, with three 1/2 HP motors.

  • Galvanized steel cabinet with an Obsidian Black powder coat finish.
  • Adjustable air directional vanes provide a 40° sweep from front to back.
  • Maximum window or door opening height: 12 ft.

Overall Dimensions:

108.0"W x 12.75"D x 12.13"H

Unheated configuration

Configured without heat.

108 in. width

The unit has an overall width of 108 in. and is specified for a 108 in. wide door opening.

Three 1/2 HP motors

Uses three 1/2 HP motors.

Electrical configuration

Operates at 208–230 V, 60 Hz, single phase, with 1.5 kW power and 7.5 A full-load amperage.

Galvanized steel cabinet

Features a galvanized steel cabinet with an Obsidian Black powder coat finish.

Adjustable air directional vanes

Vanes provide a 40° sweep from front to back.

Maximum opening height

Specified for window or door openings up to 12 ft high.

5-year parts warranty

Includes a 5-year parts warranty.

Series Standard 2
Type Unheated
Nominal door width 108 in.
Maximum opening height 12 ft
Motors 3
Horsepower per motor 1/2 HP
Voltage 208–230 V
Frequency 60 Hz
Phase Single phase
Power 1.5 kW
Full-load amperage 7.5 A
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Motor type Totally Enclosed Air Over (TEAO), NEMA 1
Air vane sweep 40° front to back
Air volume 4,137 CFM
Maximum core velocity 5,960 fpm
Velocity uniformity 84%

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Std2 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The STD2108-3UD-OB is an unheated air curtain.
The unit is 108 in. wide.
It has three 1/2 HP motors.
It operates at 208–230 V, 60 Hz, single phase, with 7.5 A full-load amperage and 1.5 kW power.
The product measures 108 in. wide by 12.75 in. deep by 12.13 in. high.
The product has a 5-year parts warranty.
