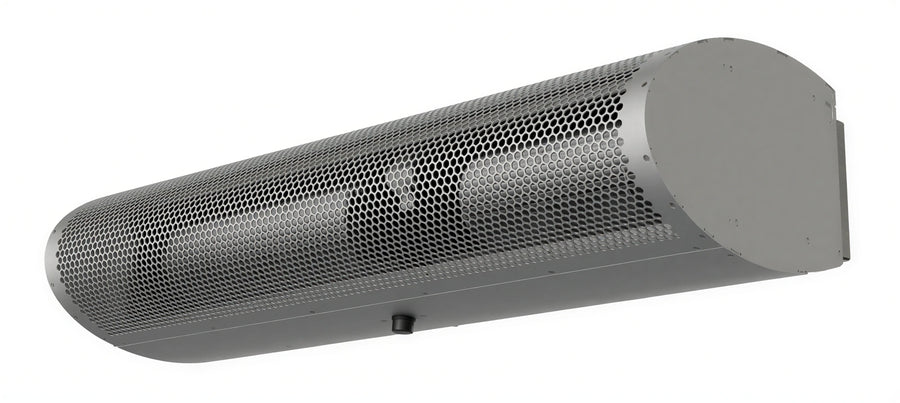

Mars Air Systems QP872-1UD-AL Unheated Air Curtain, 72 in Wide, 1/6 HP Motor
The Mars Air Systems QP872-1UD-AL is a QuietPro 8 unheated air curtain designed for 72-inch door openings. It features an anodized aluminum cabinet, one 1/6 HP continuous-duty motor, and 208-230 V, 60 Hz, single-phase power.
- Factory-wired 24 V control circuit with commercial magnetic switch 99-018
- Variable-speed controller with off setting
- Adjustable air directional vane with a 40-degree front-to-back sweep
- Removable wall mounting bracket
Overall Dimensions:
72.0"W x 13.0"D x 8.63"HUnheated operation
Designed as an unheated air curtain for 72-inch door openings.
Anodized aluminum cabinet
The cabinet has a standard anodized aluminum finish.
Single motor
Uses one 1/6 HP continuous-duty motor.
24 V control circuit
Includes a factory-wired 24 V control circuit and commercial magnetic switch 99-018.
Variable-speed control
Includes a variable-speed controller with an off setting.
Adjustable air direction
The air directional vane provides a 40-degree front-to-back sweep.
Wall mounting
Includes a removable wall mounting bracket.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
