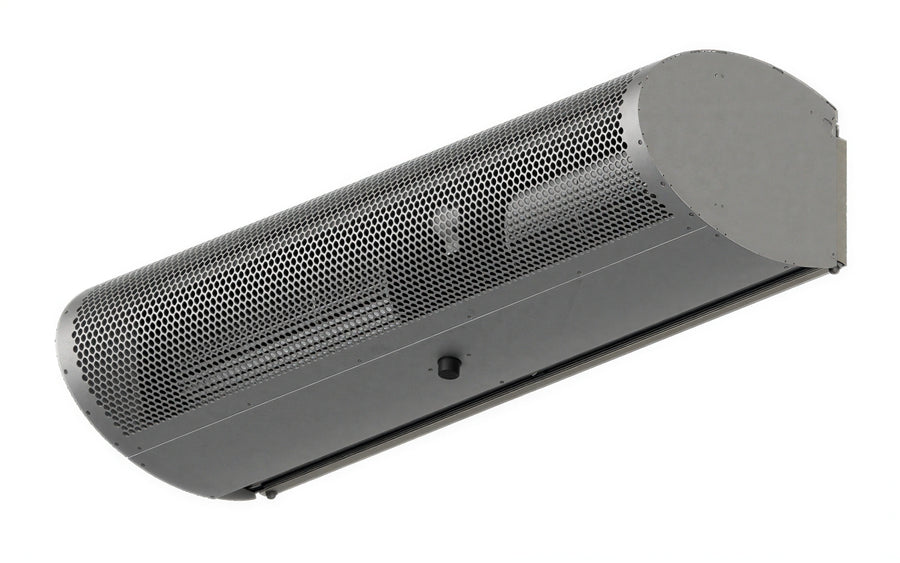

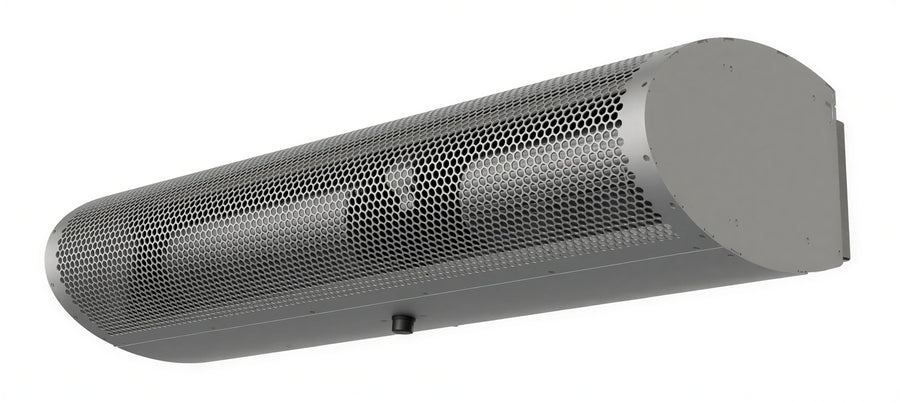

Play manufacturer video for Mars Air Systems QP860-1UD-AL Unheated Air Curtain, 60" Wide, 1/6 HP MotorMars Air Systems QP860-1UD-AL Unheated Air Curtain, 60" Wide, 1/6 HP Motor
The Mars Air Systems QP860-1UD-AL is an unheated QuietPro 8 air curtain specified for a 60 in door. It has an anodized aluminum cabinet, one 1/6 HP continuous-duty motor, and 208–230 V, 60 Hz, 1-phase power.
The unit includes an integrated 24 V control circuit and commercial magnetic switch 99-018. It also features variable-speed control, an adjustable air directional vane, and a removable wall mounting bracket.
Overall Dimensions:
60.0"W x 13.0"D x 8.63"HUnheated operation
Specified as an unheated air curtain for a 60 in door.
Anodized aluminum cabinet
The cabinet is specified as anodized aluminum.
Single continuous-duty motor
Includes one 1/6 HP continuous-duty motor.
Integrated controls
Includes a factory-wired 24 V control circuit and commercial magnetic switch 99-018.
Variable-speed control
Variable speed controller with an off setting.
Adjustable air direction
Adjustable air directional vane with a 40° sweep from front to back.
Wall mounting bracket
Removable wall mounting bracket for installation.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
