Mars Air Systems QP842-1UA-AL Unheated Air Curtain, 42 in, 1/6 HP Motor, Anodized Aluminum Cabinet

SKU: QP842-1UA-AL
$2,087.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

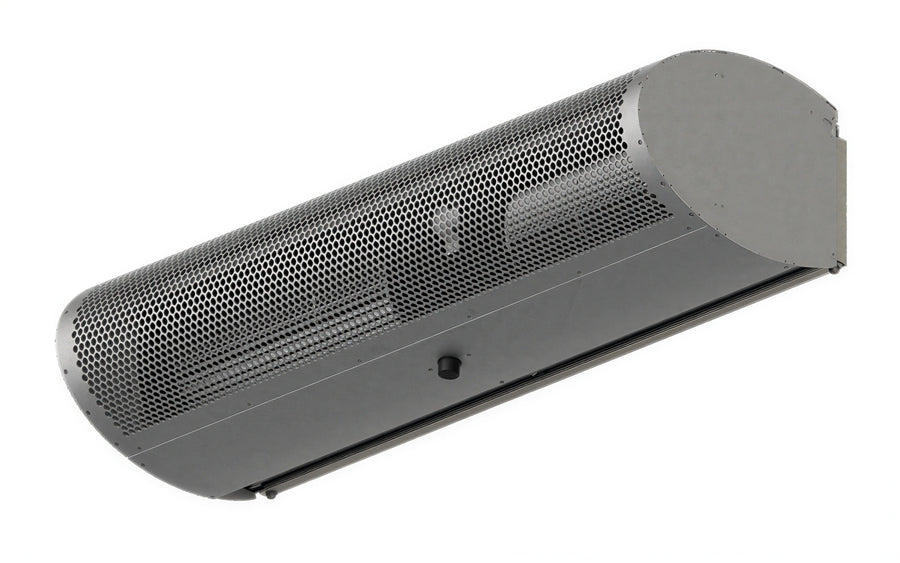

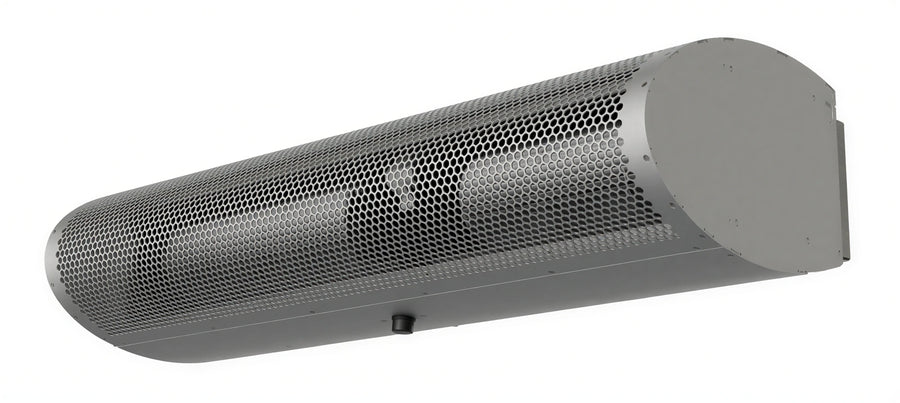

The Mars Air Systems QP842-1UA-AL is an unheated QuietPro 8 air curtain specified for a 42-inch door. It features an anodized aluminum cabinet and one 1/6 HP motor.

  • Uses 115 V, 60 Hz, single-phase power with an integrated 24 V control circuit.
  • Uses commercial magnetic switch 99-018 for the single-motor configuration.
  • Certified cETLus.

Overall Dimensions:

42.0"W x 13.0"D x 8.63"H

Unheated operation

Configured as an unheated air curtain.

42-inch door coverage

Specified for a 42-inch-wide door.

Anodized aluminum cabinet

Uses an anodized aluminum cabinet finish.

Single 1/6 HP motor

Configured with one 1/6 HP continuous-duty motor.

24 V control circuit

Uses an integrated factory-wired 24 V control circuit.

Commercial magnetic switch

Uses commercial magnetic switch 99-018 for the single-motor configuration.

Variable speed control

The QP8 submittal lists a variable speed controller with an off setting.

Adjustable air direction

The QP8 submittal lists an adjustable air directional vane with a 40-degree front-to-back sweep.

Removable wall mounting bracket

The QP8 submittal lists a removable wall mounting bracket.

Series QuietPro 8
Type Unheated
Door width 42 in
Cabinet finish Anodized aluminum
Motor count 1
Motor horsepower 1/6 hp
Voltage 115 V
Frequency 60 Hz
Phase Single-phase
Control circuit 24 V
Magnetic switch 99-018
Airflow 807 cfm
Maximum core velocity 2218 fpm
Average velocity 1421 fpm
Velocity uniformity 54%
Power rating 142 W
Sound level 48 dBA at 10 ft in a free field

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Marketing sheet PDF Download PDF Qp8 unheated submittals PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download

Frequently Asked Questions

No. The QP842-1UA-AL is an unheated air curtain.
It is specified for a 42-inch-wide door.
It uses 115 V, 60 Hz, single-phase power with an integrated 24 V control circuit.
The single-motor configuration uses commercial magnetic switch 99-018.
The QP8 submittal lists a 5-year parts warranty and a 1-year warranty for 24 V control components.
The product is listed as cETLus certified.
