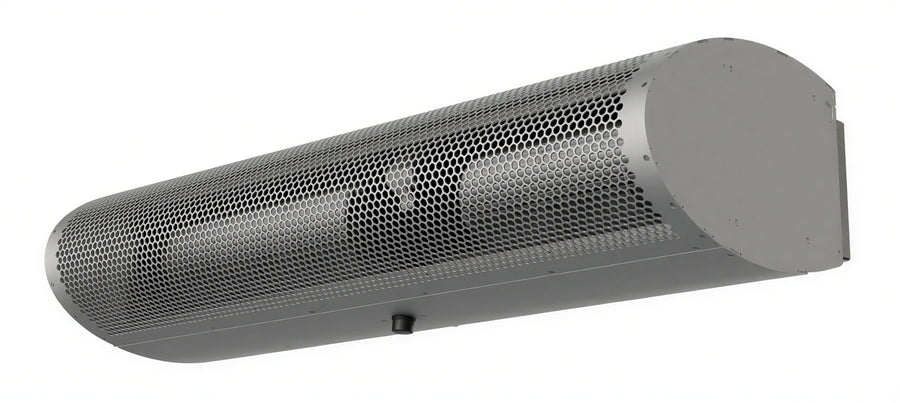

Mars Air Systems QP836-1UA-AL Unheated Air Curtain for 36-in Door, Anodized Aluminum Cabinet, 1/6 HP Motor
The Mars Air Systems QP836-1UA-AL is an unheated QuietPro 8 air curtain for a 36 in door. It has an anodized aluminum cabinet, one 1/6 HP motor, 115 V power, an integrated 24 V control circuit, and a commercial magnetic switch.
- Variable speed controller with off setting
- Adjustable air directional vane with 40° front-to-back sweep
- Removable wall mounting bracket
Overall Dimensions:
36.0"W x 13.0"D x 8.63"HUnheated operation
Provides an unheated air curtain configuration for a 36 in door.
Anodized aluminum cabinet
Uses the specified anodized aluminum cabinet finish.
Single-motor design
Equipped with one 1/6 HP continuous-duty NEMA 1 motor.
Electrical configuration
Uses 115 V, 60 Hz, single-phase power.
24 V controls
Includes an integrated, factory-wired 24 V control circuit and commercial magnetic switch 99-018.
Variable speed control
Includes a variable speed controller with an off setting.
Adjustable air direction
The air directional vane provides a 40° sweep from front to back.
Wall mounting bracket
Includes a removable wall mounting bracket.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
