Mars Air Systems QP1096-2UH-AL Unheated Air Curtain for 96" Door, Anodized Aluminum Cabinet, (2) 1/2 HP Motors

SKU: QP1096-2UH-AL
$3,498.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

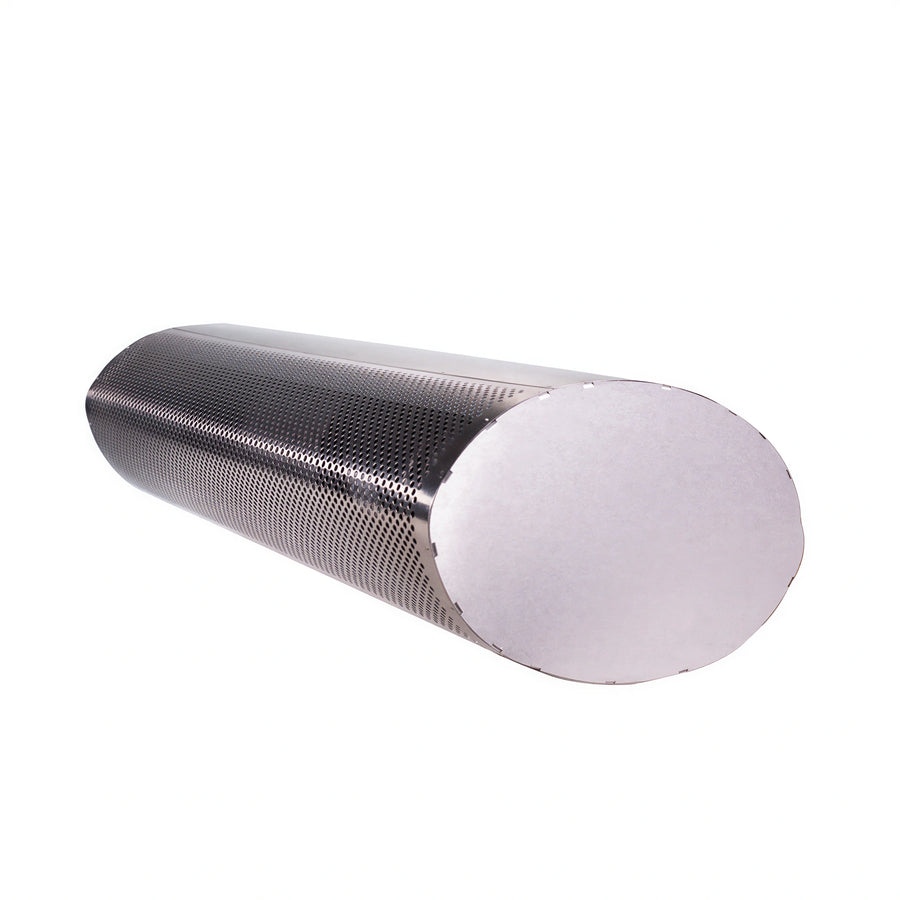

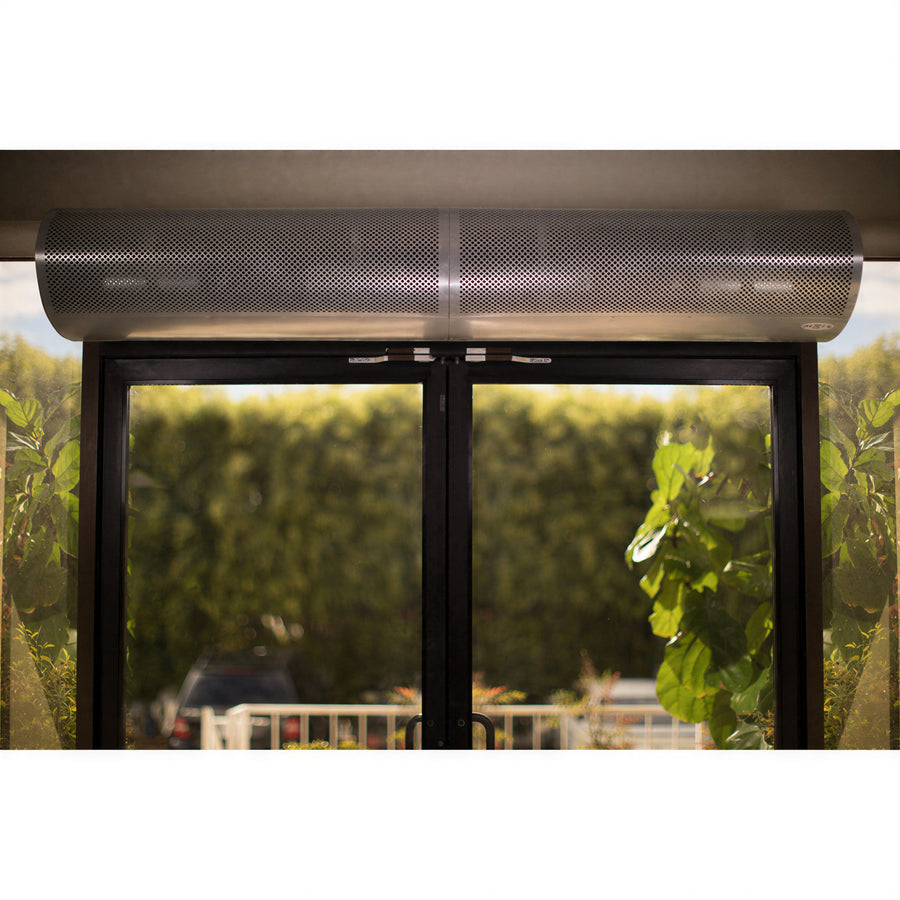

QP1096-2UH-AL is an unheated QuietPro air curtain specified for a 96-inch door. It has an anodized aluminum cabinet, two 1/2 hp motors, and 460 V/60 Hz/3-phase power.

  • Integrated 24 V control circuit.
  • Industrial magnetic switch (99-018) included.
  • Adjustable air directional vanes with a 40° front-to-back sweep.
  • ETL-certified.

Unheated operation

The unit is specified as an unheated air curtain.

96 in door application

Specified for a 96-inch-wide door.

Motor configuration

Uses two 1/2 hp motors.

Electrical configuration

Designed for 460 V, 60 Hz, 3-phase power.

Control circuit

Includes an integrated 24 V control circuit.

Magnetic switch

Includes an industrial magnetic switch identified as 99-018.

Cabinet finish

Anodized aluminum cabinet.

Adjustable air direction

Air directional vanes provide a 40° front-to-back sweep.

Product type Unheated air curtain
Series QuietPro 10
Door opening width 96 in
Maximum opening height 8 ft
Cabinet finish Anodized aluminum
Motors 2 motors
Horsepower per motor 1/2 hp
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Control circuit Integrated 24 V
Magnetic switch Industrial magnetic switch (99-018)
Nozzle length 96 in
Overall length 96 in
Weight 135 lb
Full load amps 1.6 A
Maximum core velocity 4247 fpm
Average velocity at nozzle 1730 fpm
Air volume 2884 cfm
Uniformity 85%
Power rating 1098 W
Sound level 55 dBA at 10 ft

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is specified as an unheated QuietPro air curtain.
It is specified for a 96-inch-wide door, with a maximum opening height of 8 ft.
It has two 1/2 hp motors.
It uses 460 V, 60 Hz, 3-phase power.
It has an integrated 24 V control circuit and includes an industrial magnetic switch identified as 99-018.
The unit has a 5-year parts warranty. The 24 V control components have a 1-year warranty.
