Mars Air Systems QP1096-2UD-AL Unheated Air Curtain, 96" Door Width, Anodized Aluminum Cabinet, 2 × 1/2 HP Motors

SKU: QP1096-2UD-AL
$3,166.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

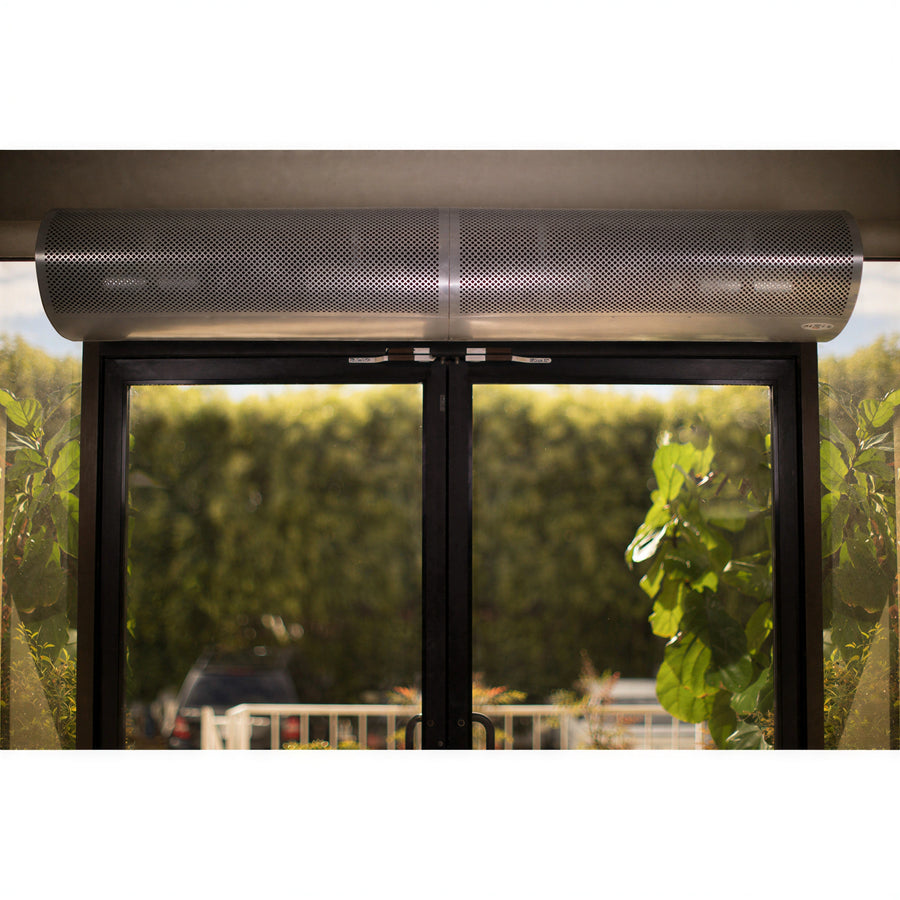

The Mars Air Systems QP1096-2UD-AL is an unheated QuietPro air curtain configured for a 96-inch door width. It features an anodized aluminum cabinet and two 1/2 hp motors.

  • 208–230 V, 60 Hz, single-phase electrical configuration
  • Integrated 24 V control circuit
  • Industrial magnetic switch 99-018 included
  • Adjustable air directional vanes with a 40° front-to-back sweep

Unheated operation

Configured as an unheated air curtain.

96-inch door width

Designed for a 96-inch door width.

Anodized aluminum cabinet

Features an anodized aluminum cabinet.

Two 1/2 hp motors

Uses two 1/2 hp continuous-duty TEAO motors.

Electrical configuration

Operates at 208–230 V, 60 Hz, single-phase.

Integrated controls

Includes an integrated 24 V control circuit.

Industrial magnetic switch

Industrial magnetic switch 99-018 is included.

Adjustable air direction

Air directional vanes provide a 40° front-to-back sweep.

Door width 96 in
Type Unheated
Cabinet finish Anodized aluminum
Motors 2 motors
Horsepower per motor 1/2 hp
Maximum opening height 8 ft
Voltage 208–230 V
Frequency 60 Hz
Phase Single-phase
Control circuit 24 V
Magnetic switch 99-018
Overall length 96 in
Weight 135 lb
Max core velocity at nozzle 4,247 fpm
Average velocity 1,730 fpm
Air volume 2,884 cfm
Uniformity 85%
Power rating 1,098 W
Sound level 55 dBA at 10 ft

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It is configured for a 96-inch door width.
It uses 208–230 V, 60 Hz, single-phase power.
Yes. It includes an integrated 24 V control circuit and industrial magnetic switch 99-018.
It has two 1/2 hp continuous-duty TEAO motors.
The product has a 5-year parts warranty and a 1-year warranty for 24 V control components.
