Mars Air Systems QP1096-2UA-AL Unheated Air Curtain for 96 in Door, Anodized Aluminum Cabinet, 2 × 1/2 HP Motors

SKU: QP1096-2UA-AL
$3,166.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

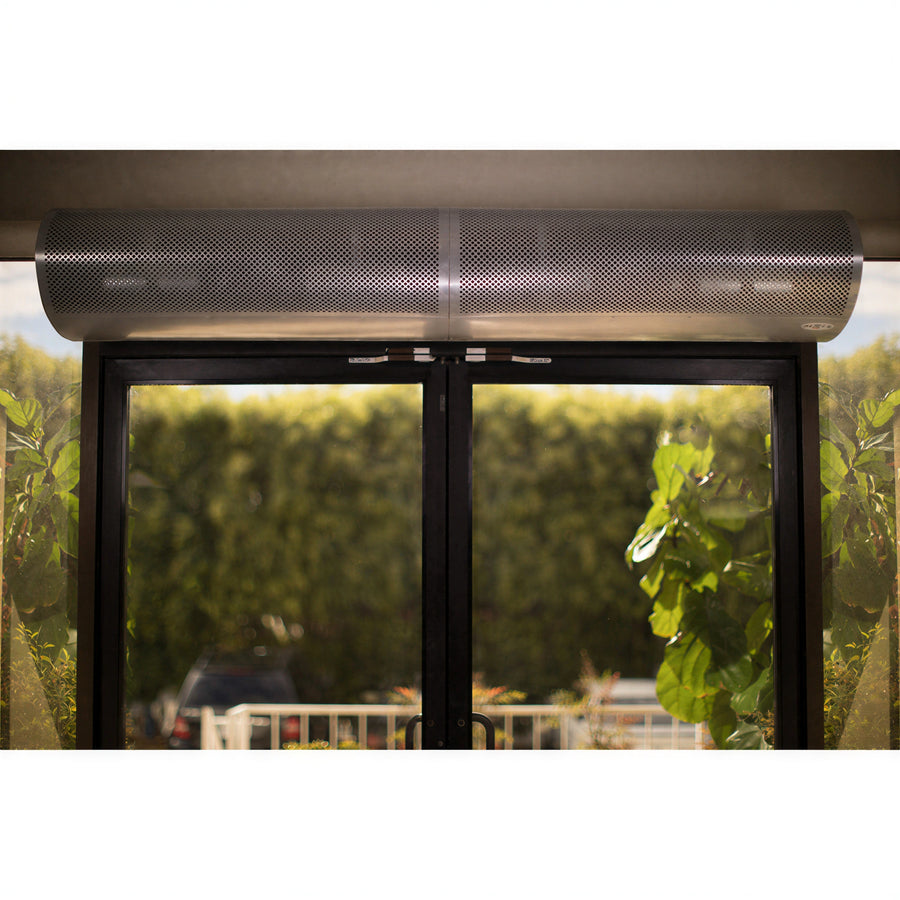

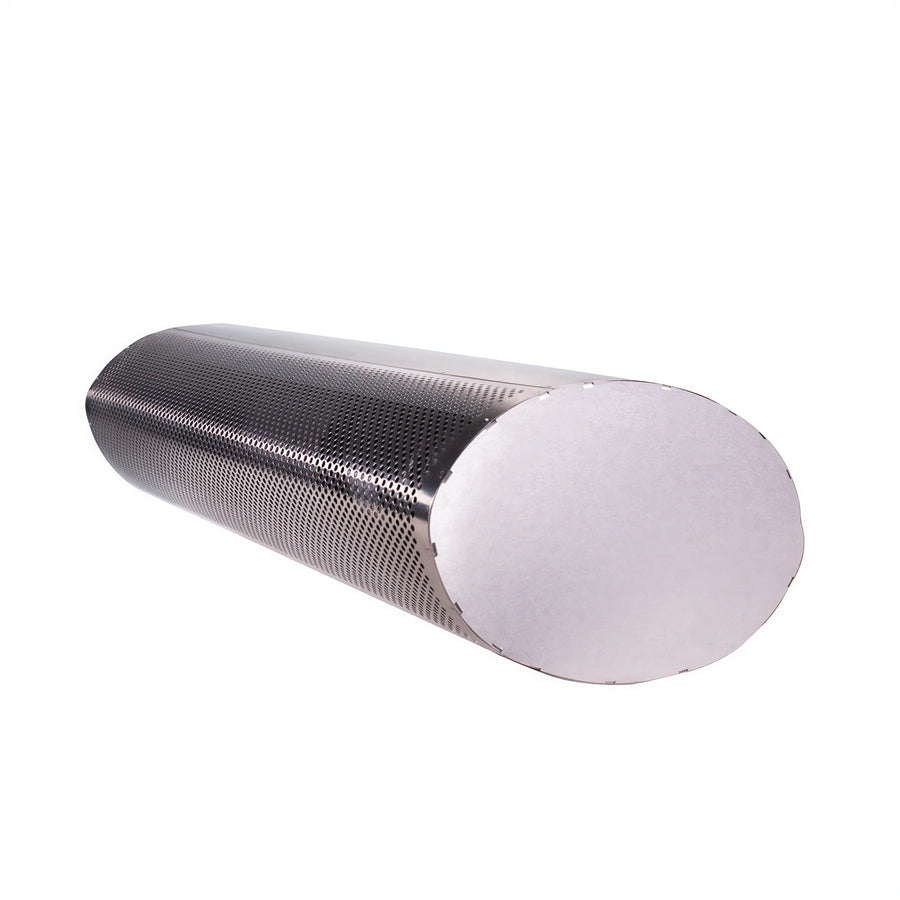

Mars Air Systems QP1096-2UA-AL is an unheated QuietPro air curtain for a 96 in door. It has an anodized aluminum cabinet, two 1/2 HP continuous-duty TEAO motors, 115 V/60 Hz/1-phase power, an integrated 24 V control circuit, and an industrial magnetic switch (99-018).

  • Adjustable air directional vanes provide a 40° sweep from front to back.
  • The unit is ETL-certified and cETLus listed.

Unheated operation

Provides unheated air curtain operation for a 96 in door.

Two 1/2 HP motors

Uses two 1/2 HP continuous-duty Totally Enclosed Air Over motors rated NEMA 1.

Integrated control circuit

Includes an integrated 24 V control circuit and industrial magnetic switch 99-018.

Anodized aluminum cabinet

Uses an anodized aluminum cabinet finish.

Adjustable air direction

Air directional vanes provide a 40° sweep from front to back.

115 V electrical configuration

Configured for 115 V, 60 Hz, single-phase power.

Manufacturer Mars Air Systems
Series QuietPro 10
Type Unheated air curtain
Door width 96 in
Maximum opening height 8 ft
Cabinet finish Anodized aluminum
Motor quantity 2
Horsepower per motor 1/2 hp
Motor type Continuous-duty TEAO, NEMA 1
Voltage 115 V
Frequency 60 Hz
Phase Single phase
Control circuit 24 V
Magnetic switch Industrial magnetic switch 99-018
Nozzle length 96 in
Overall length 96 in
Full load amps 10.2 A
Maximum core velocity at nozzle 4,247 fpm
Average velocity 1,730 fpm
Air volume 2,884 cfm
Uniformity 85%
Power rating 1,098 W
Sound level 55 dBA at 10 ft in a free field

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty and 1-year warranty for 24 V control components.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The QP1096-2UA-AL is an unheated air curtain.
It is designed for a 96 in door.
It uses 115 V, 60 Hz, single-phase power.
It has two 1/2 HP continuous-duty TEAO motors.
Yes. It has an integrated 24 V control circuit and includes an industrial magnetic switch, model 99-018.
The product has a 5-year parts warranty and a 1-year warranty for 24 V control components.
