Mars Air Systems QP1084-2UH-AL Unheated Air Curtain, 84"W, Anodized Aluminum Cabinet, 2 x 1/2 HP Motors

SKU: QP1084-2UH-AL
$3,267.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

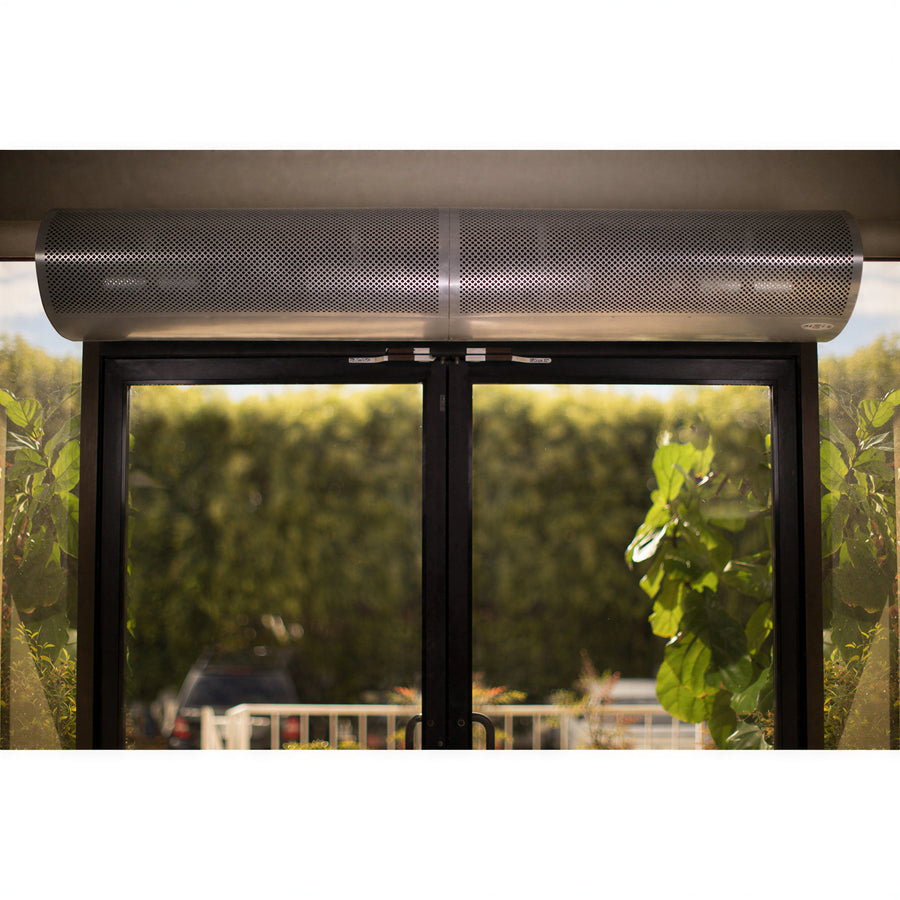

QP1084-2UH-AL is an unheated QuietPro air curtain designed for an 84-inch door opening. It features an anodized aluminum cabinet, two 1/2 hp continuous-duty TEAO motors, and 460V, 60 Hz, three-phase electrical service.

  • Factory-wired 24V control circuit with included industrial magnetic switch 99-018.
  • Adjustable air directional vanes provide a 40-degree sweep from front to back.
  • Rated for openings up to 8 feet high.

Unheated operation

Provides an unheated air curtain configuration for an 84-inch door opening.

Two-motor design

Uses two 1/2 hp continuous-duty Totally Enclosed Air Over motors with NEMA 1 construction.

Anodized aluminum cabinet

Finished with an anodized aluminum cabinet.

460V three-phase power

Configured for 460V, 60 Hz, three-phase electrical service.

Integrated controls

Includes a factory-wired 24V control circuit and industrial magnetic switch 99-018.

Adjustable airflow direction

Air directional vanes provide a 40-degree sweep from front to back.

Product type Unheated air curtain
Series QuietPro 10
Door width 84 in
Maximum opening height 8 ft
Motor count 2 motors
Motor horsepower 1/2 hp per motor
Motor type Continuous-duty TEAO, NEMA 1
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Full-load current 1.6 A
Control voltage 24 V
Cabinet finish Anodized aluminum
Air directional vane sweep 40 degrees front to back
Maximum core velocity 4,865 fpm
Average velocity 1,945 fpm
Air volume 2,836 cfm
Uniformity 87%
Power rating 1,012 W
Included switch Industrial magnetic switch 99-018

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty with a 1-year warranty for 24V control components.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The QP1084-2UH-AL is an unheated air curtain.
It is configured for 460V, 60 Hz, three-phase service.
It has two 1/2 hp continuous-duty TEAO motors.
The unit includes a factory-wired 24V control circuit and industrial magnetic switch 99-018.
It is designed for an 84-inch door opening and has a listed maximum opening height of 8 feet.
The product has a 5-year parts warranty. The 24V control components have a 1-year warranty.
