Mars Air Systems QP1084-2UG-AL Unheated Air Curtain, 84 in W, Anodized Aluminum Cabinet, 2 Motors

SKU: QP1084-2UG-AL
$3,267.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

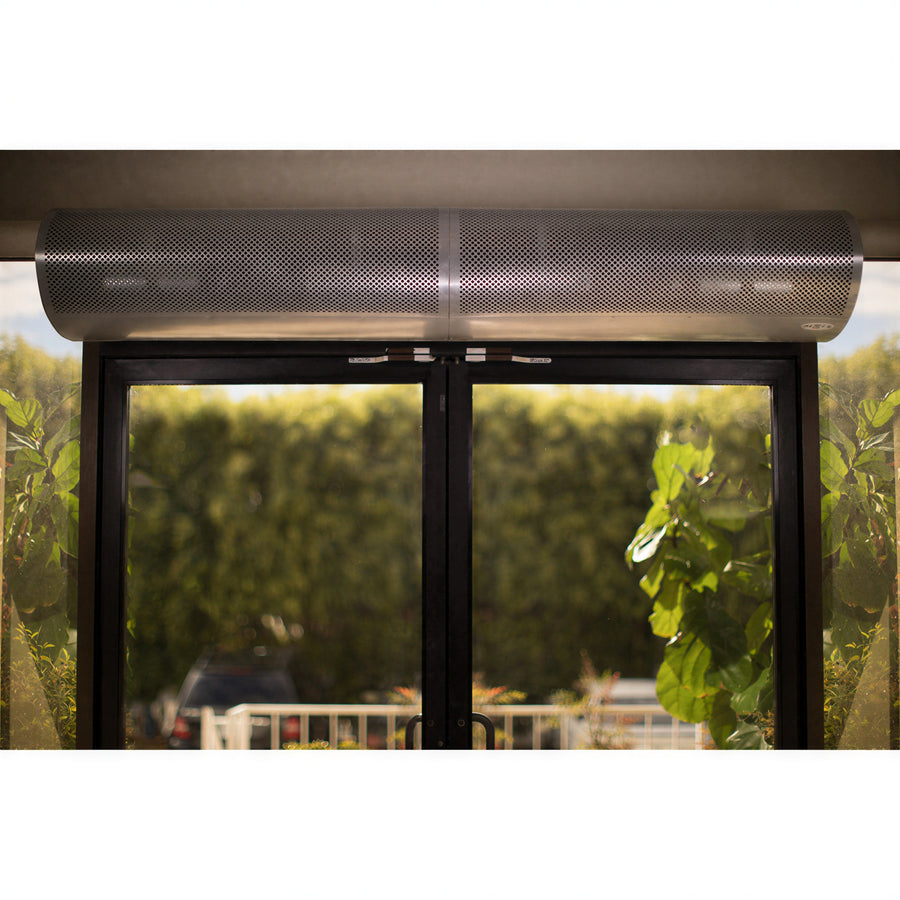

The Mars Air Systems QP1084-2UG-AL is an unheated QuietPro air curtain specified for an 84 in door opening. It features an anodized aluminum cabinet and two 1/2 HP motors.

  • 208-230 V, 60 Hz, three-phase electrical configuration
  • Integrated 24 V control circuit
  • Industrial magnetic switch 99-018 included
  • Adjustable air directional vanes with a 40° front-to-back sweep

Unheated design

The QP1084-2UG-AL is specified as an unheated air curtain.

84 in opening size

The model has an 84 in nozzle and overall length and is specified for an 84 in door opening.

Two motors

Equipped with two 1/2 HP motors.

Anodized aluminum cabinet

The cabinet is specified as anodized aluminum.

Three-phase electrical configuration

Uses 208-230 V, 60 Hz, three-phase power.

24 V control circuit

Includes an integrated, factory-wired 24 V control circuit.

Industrial magnetic switch

Magnetic switch 99-018 is included.

Adjustable air direction

Air directional vanes provide a 40° sweep from front to back.

Product type Unheated air curtain
Series QuietPro 10
Opening width 84 in
Cabinet finish Anodized aluminum
Motor count 2 motors
Horsepower per motor 1/2 hp
Electrical 208-230 V, 60 Hz, 3 phase
Control circuit 24 V, integrated
Magnetic switch 99-018, included
Maximum opening height 8 ft
Nozzle length 84 in
Overall length 84 in
Intermediate supports 1
Maximum core velocity at nozzle 4,865 fpm
Average velocity 1,945 fpm
Air volume 2,836 cfm
Airflow uniformity 87%
Sound level 55 dBA at 10 ft in a free field
Power rating 1,012 W

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty and 1-year warranty for 24 V control components.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. The QP1084-2UG-AL is specified as an unheated air curtain.
It uses 208-230 V, 60 Hz, three-phase power.
It has two 1/2 HP motors.
The unit includes an integrated 24 V control circuit and industrial magnetic switch 99-018.
The product has a 5-year parts warranty and a 1-year warranty for 24 V control components.
