Mars Air Systems

Mars Air Systems QP1084-2UA-AL Unheated Air Curtain for 84" Door, Anodized Aluminum, 2 x 1/2 HP Motors

SKU: QP1084-2UA-AL
$2,940.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

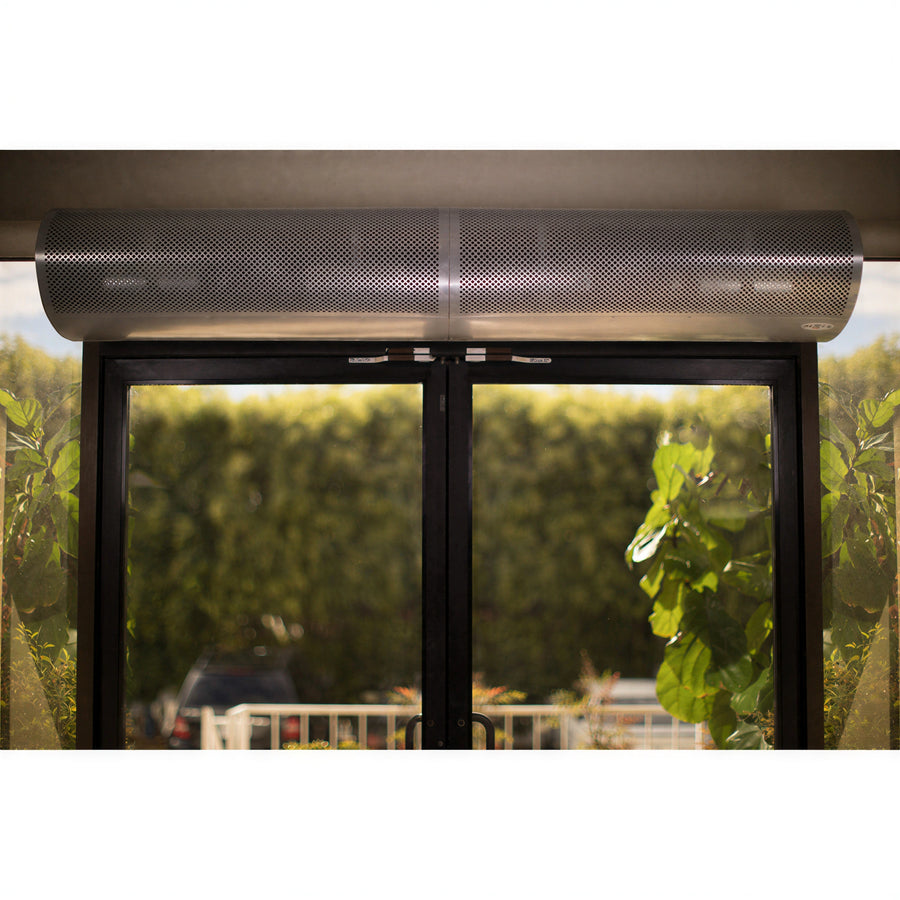

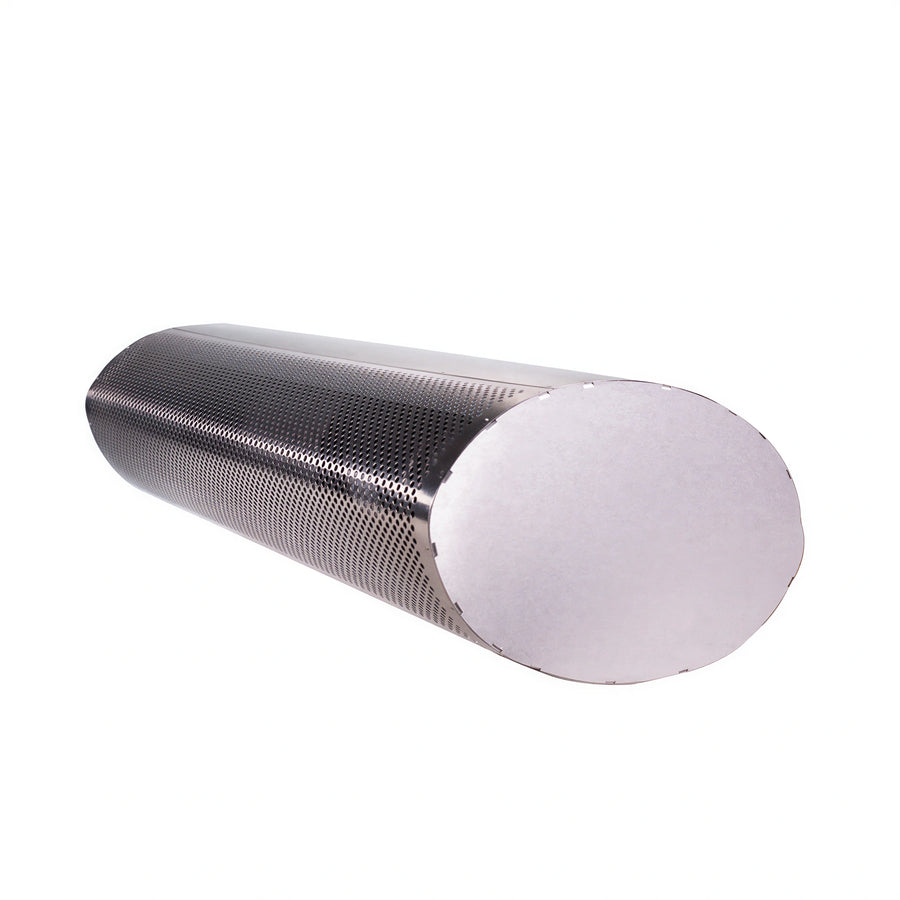

The Mars Air Systems QuietPro air curtain is an unheated unit specified for an 84 in door opening. It has an anodized aluminum cabinet and two 1/2 HP motors.

This model is configured for 115 V, 60 Hz, single-phase power with a factory-wired 24 V control circuit and included industrial magnetic switch 99-018.

  • Adjustable air directional vanes with a 40° front-to-back sweep
  • Maximum opening height: 8 ft
  • ETL certification

Unheated operation

Configured as an unheated air curtain.

84 in door application

Specified for an 84 in door opening.

Dual 1/2 HP motors

Uses two 1/2 HP motors.

115 V electrical configuration

Configured for 115 V, 60 Hz, single-phase power.

24 V control circuit

Includes a factory-wired 24 V control circuit.

Industrial magnetic switch

Includes industrial magnetic switch 99-018.

Anodized aluminum cabinet

Adjustable air vanes

Vanes provide a 40° sweep from front to back.

Series QuietPro 10
Type Unheated air curtain
Door opening 84 in
Maximum opening height 8 ft
Cabinet finish Anodized aluminum
Motor quantity 2
Motor horsepower 1/2 hp per motor
Voltage 115 V
Frequency 60 Hz
Phase Single-phase
Control circuit 24 V
Magnetic switch Industrial magnetic switch 99-018; included
Nozzle length 84 in
Overall length 84 in
Full load amperage 10.2 A
Maximum core velocity 4,865 fpm
Average core velocity 1,945 fpm
Air volume 2,836 cfm
Velocity uniformity 87%
Power rating 1,012 W
Air vane sweep 40° front to back
Sound level 55 dBA at 10 ft for a 2-motor unit

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty; 1-year warranty for 24 V control components.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Collateral refrigeration PDF Download PDF Video PDF Download PDF Collateral PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It is specified for an 84 in door opening, with a maximum opening height of 8 ft.
The model uses 115 V, 60 Hz, single-phase power and has a 10.2 A full load amperage.
It has two 1/2 HP motors.
Yes. It includes a factory-wired 24 V control circuit and industrial magnetic switch 99-018.
The listed warranty is 5 years for parts and 1 year for 24 V control components.
