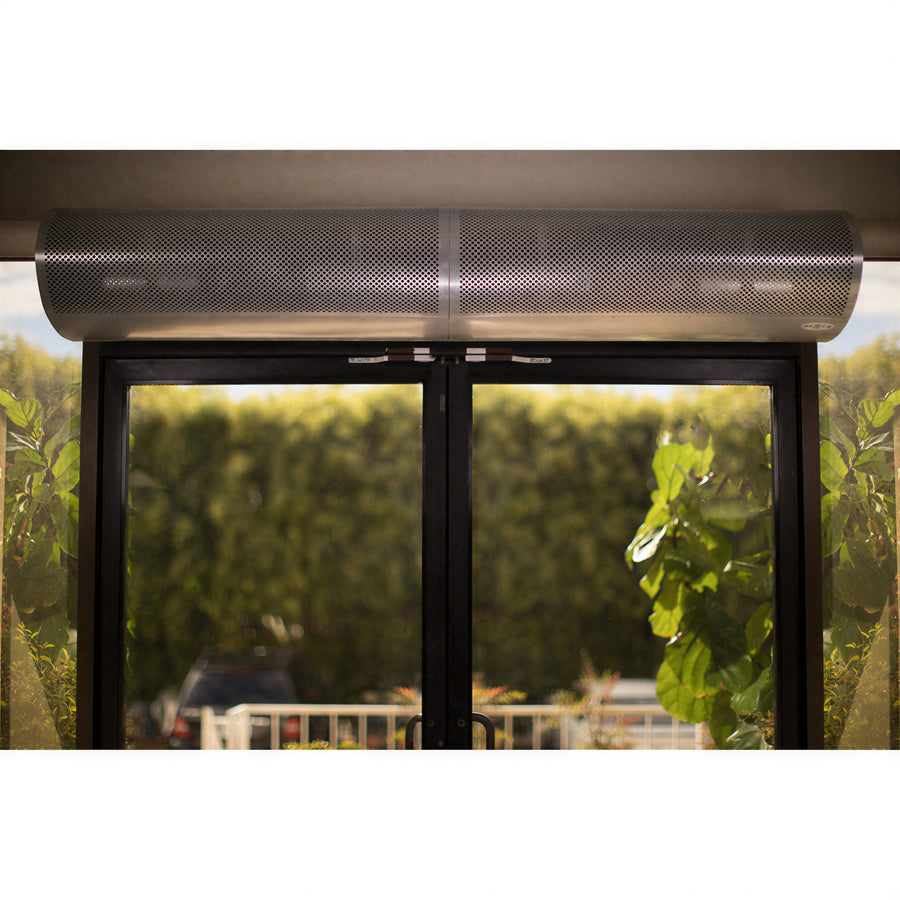

Mars Air Systems QP1072-2UH-AL Unheated Air Curtain for 72 in Door, Anodized Aluminum, Two 1/2 HP Motors
Unheated air curtain for 72 in door openings. The QP1072-2UH-AL has an anodized aluminum cabinet, two 1/2 hp motors, and a 460 V, 60 Hz, three-phase electrical configuration with an integrated 24 V control circuit.
The unit includes commercial magnetic switch 99-018 and adjustable air directional vanes with a 40° sweep from front to back. It has a 72 in overall length and a listed weight of 120 lb.
- Unheated QuietPro 10 configuration
- Maximum listed opening height of 8 ft
- cETLus certified
Unheated operation
The QP1072-2UH-AL is specified as an unheated air curtain.
72 in door coverage
The unit is specified for a 72 in wide door and has a maximum listed opening height of 8 ft.
Dual motor drive
Two continuous-duty 1/2 hp TEAO motors provide the specified motor configuration.
Electrical configuration
The unit is rated for 460 V, 60 Hz, three-phase power.
Integrated controls
A 24 V control circuit is integrated into the unit.
Magnetic switch
Commercial magnetic switch 99-018 is included.
Anodized aluminum cabinet
The cabinet has an anodized aluminum finish.
Adjustable air direction
Adjustable air directional vanes provide a 40° sweep from front to back.
Certifications & Compliance
Warranty & Protection
5-year parts warranty; 1-year warranty for 24 V control components.
