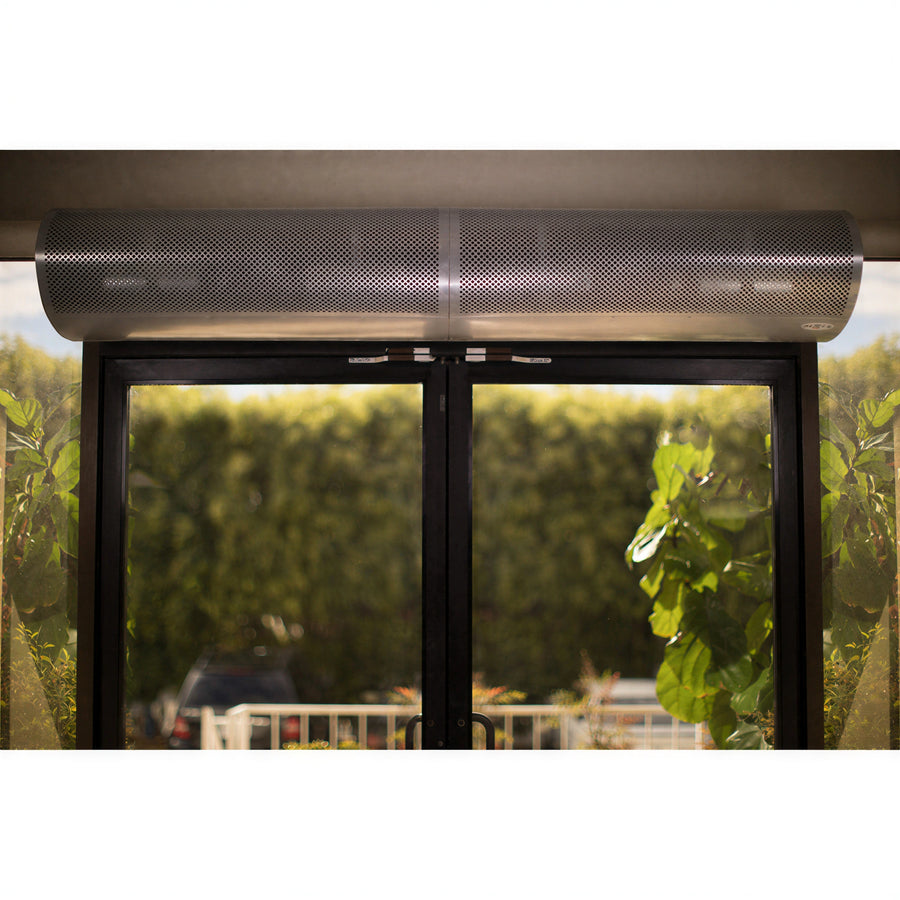

Mars Air Systems QP1072-2UG-AL Unheated Air Curtain for 72" Door, Anodized Aluminum Cabinet, 2 x 1/2 HP Motors
The Mars Air Systems QP1072-2UG-AL is an unheated QuietPro air curtain specified for a 72 in wide door opening. It has an anodized aluminum cabinet, two 1/2 HP motors, 208–230 V three-phase power, and an integrated 24 V control circuit.
- Commercial magnetic switch 99-018 included
- Adjustable air directional vanes with a 40° front-to-back sweep
- Maximum opening height of 8 ft
- Listed maximum core velocity of 5,960 fpm
Unheated operation
Designed as an unheated air curtain.
72 in door coverage
Specified for a 72 in wide door opening with a maximum opening height of 8 ft.
Two 1/2 HP motors
Uses two 1/2 HP continuous-duty TEAO motors in NEMA 1 construction.
Anodized aluminum cabinet
Finished with an anodized aluminum cabinet.
Three-phase electrical configuration
Designed for 208–230 V, 60 Hz, three-phase power.
Integrated control circuit
Includes an integrated 24 V control circuit.
Magnetic switch
Commercial magnetic switch 99-018 is included.
Adjustable air direction
Air directional vanes provide a 40° front-to-back sweep.
Certifications & Compliance
Warranty & Protection
5-year parts warranty and 1-year warranty for 24 V control components.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
