Play manufacturer video for Mars Air Systems QP1048-1UA-AL Unheated Air Curtain, 48-in Door Width, 8-ft Opening, 1/2 HP Motor, Anodized Aluminum CabinetMars Air Systems QP1048-1UA-AL Unheated Air Curtain, 48-in Door Width, 8-ft Opening, 1/2 HP Motor, Anodized Aluminum Cabinet
SKU: QP1048-1UA-AL
$1,638.00

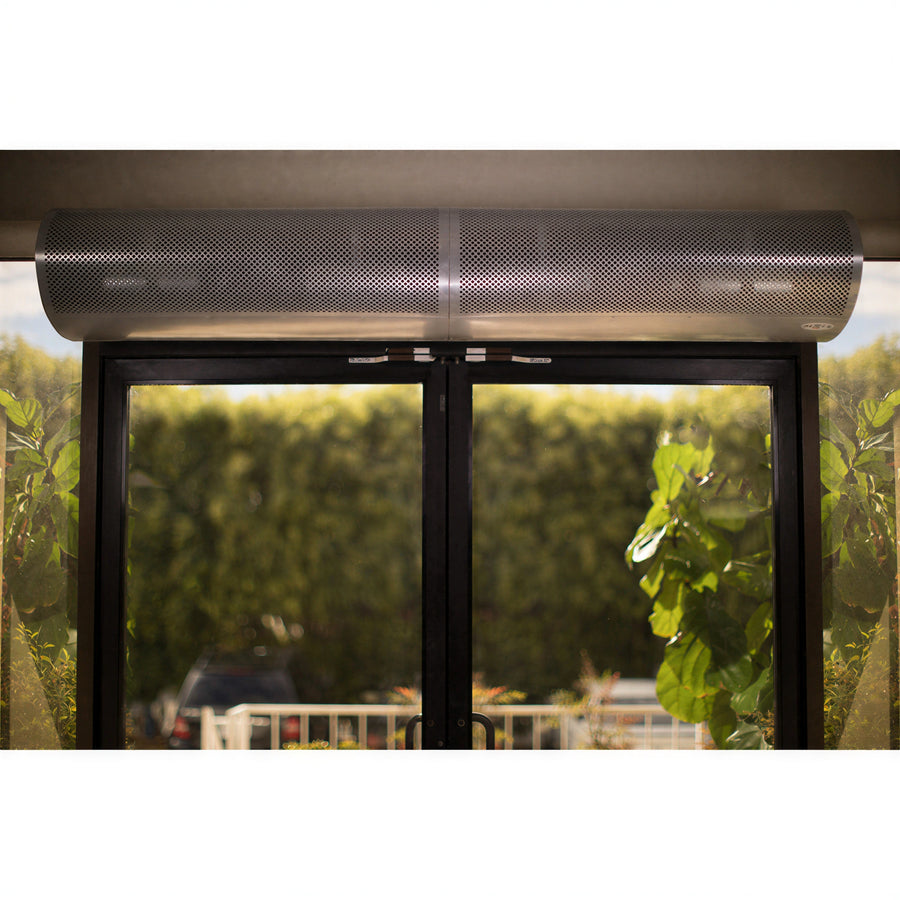

QP1048-1UA-AL is an unheated QuietPro air curtain for a 48-inch door opening. It features an anodized aluminum cabinet and one 1/2 HP motor.
- 115 V, 60 Hz, single-phase electrical configuration
- Maximum opening height of 8 ft
- Integrated 24 V control circuit with commercial magnetic switch 99-018
- Adjustable air directional vanes with a 40° front-to-back sweep
- 5-year parts warranty and 1-year warranty for 24 V control components
Unheated operation
Configured as an unheated air curtain for a 48-inch door.
Anodized aluminum cabinet
The cabinet has an anodized aluminum finish.
Single 1/2 HP motor
Uses one 1/2 HP motor.
115 V electrical configuration
Rated for 115 V, 60 Hz, single-phase service.
24 V controls
Includes an integrated 24 V control circuit and commercial magnetic switch 99-018.
Adjustable air direction
Directional vanes provide a 40° front-to-back sweep.
Type
Unheated air curtain
Series
QuietPro 10
Door width
48 in
Maximum opening height
8 ft
Motor count
1
Motor horsepower
1/2 hp
Motor type
TEAO, NEMA 1
Voltage
115 V
Frequency
60 Hz
Phase
Single-phase
Full-load amperage
5.1 A
Control circuit
24 V
Cabinet finish
Anodized aluminum
Magnetic switch
99-018
Air vane sweep
40° front-to-back
Certifications & Compliance
Warranty & Protection
5-year parts warranty; 1-year warranty for 24 V control components.
Frequently Asked Questions
No. It is an unheated QuietPro air curtain.
It is specified for a 48-inch door width and a maximum opening height of 8 ft.
The unit is rated for 115 V, 60 Hz, single-phase service.
It has one 1/2 HP motor.
Yes. It has an integrated 24 V control circuit and commercial magnetic switch 99-018.
The product has a 5-year parts warranty and a 1-year warranty for 24 V control components.
