Play manufacturer video for Mars Air Systems QP10144-3UH-AL Unheated Air Curtain for 144-Inch Door, 3 Motors, Anodized Aluminum CabinetMars Air Systems QP10144-3UH-AL Unheated Air Curtain for 144-Inch Door, 3 Motors, Anodized Aluminum Cabinet
The Mars Air Systems QP10144-3UH-AL is an unheated QuietPro air curtain for a 144-inch door. It features an anodized aluminum cabinet, three 1/2 hp motors, 460 V three-phase power, an integrated 24 V control circuit, and an industrial magnetic switch.
- Motor configuration: Three continuous-duty TEAO motors rated at 1/2 hp each.
- Controls: Factory-wired 24 V control circuit with included industrial magnetic switch 99-018.
- Air direction: Adjustable directional vanes with a 40-degree sweep from front to back.
Unheated operation

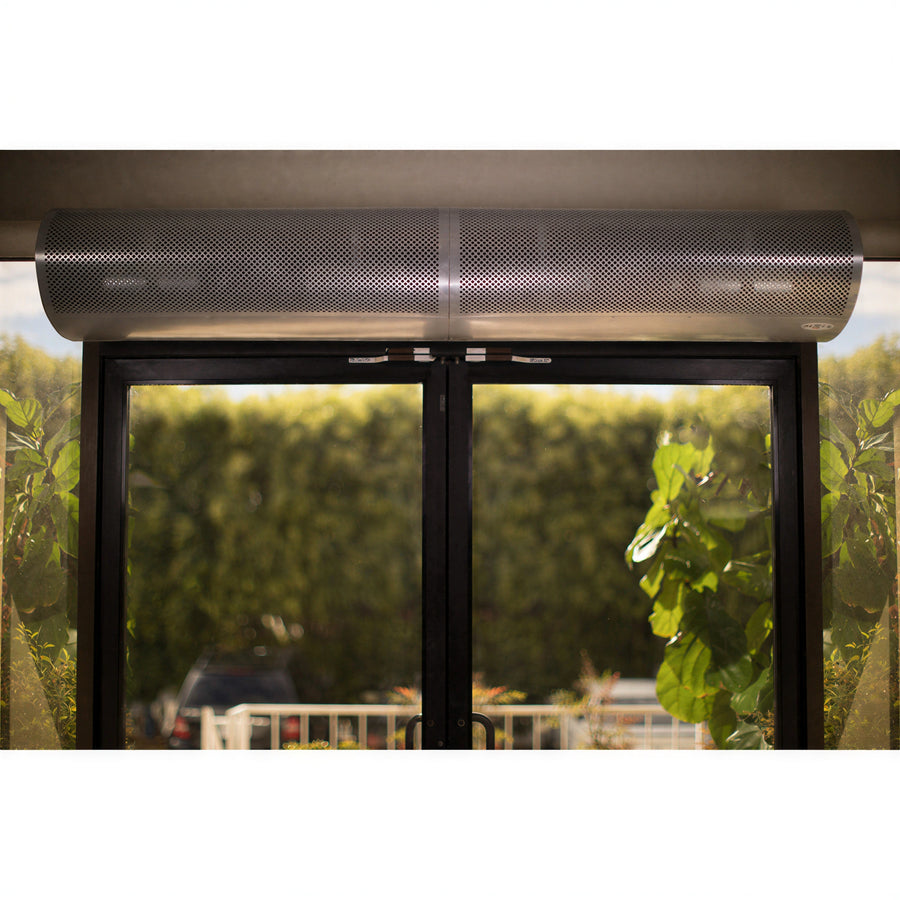

Unheated air curtain designed for a 144-inch door.
Three-motor configuration
Includes three continuous-duty Totally Enclosed Air Over motors rated at 1/2 hp each.
Electrical configuration
Configured for 460 V, 60 Hz, three-phase power.
Integrated controls
Factory-wired 24 V control circuit with an included industrial magnetic switch, model 99-018.

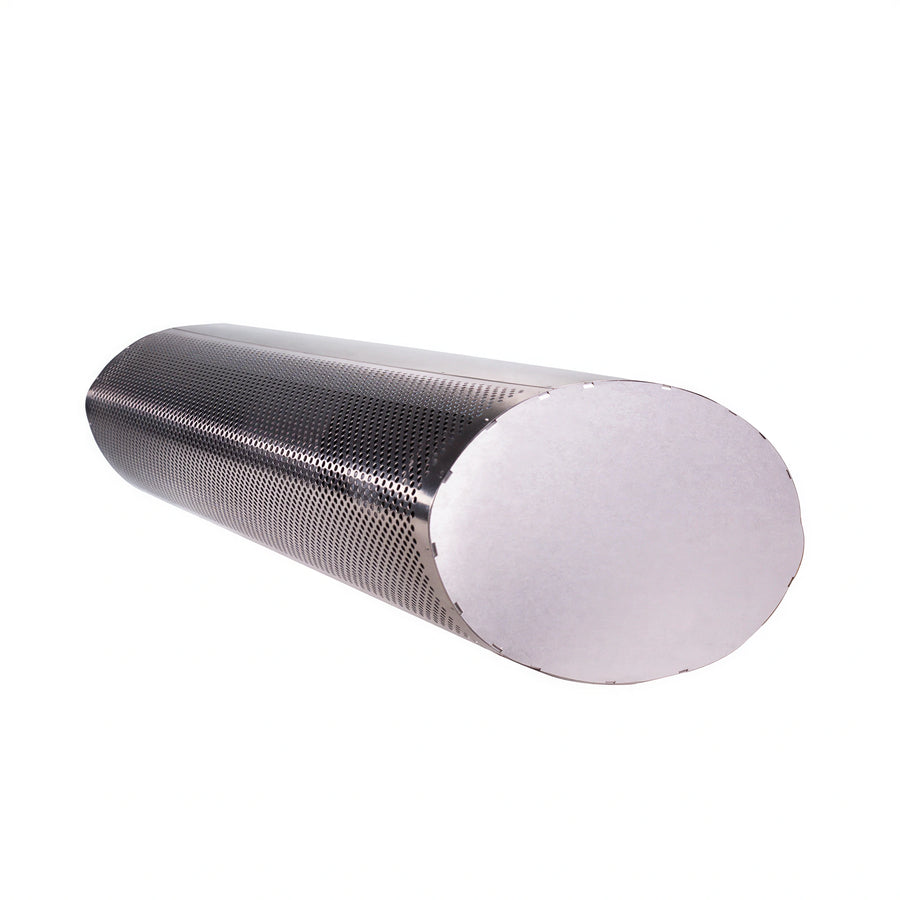

Anodized aluminum cabinet
Standard finish is anodized aluminum.
Adjustable airflow direction
Directional vanes provide a 40-degree sweep from front to back.
Documented air performance
The exact model is listed with a maximum core velocity of 4,247 fpm at the nozzle, average velocity of 1,730 fpm, air volume of 4,326 cfm, and 85% uniformity.
Certifications & Compliance
Warranty & Protection
5-year parts warranty with a 1-year warranty for 24 V control components.
