Play manufacturer video for Mars Air Systems QP10144-3UD-AL Unheated Air Curtain, 144 in Door, Anodized Aluminum Cabinet, 3 x 1/2 HP MotorsMars Air Systems QP10144-3UD-AL Unheated Air Curtain, 144 in Door, Anodized Aluminum Cabinet, 3 x 1/2 HP Motors

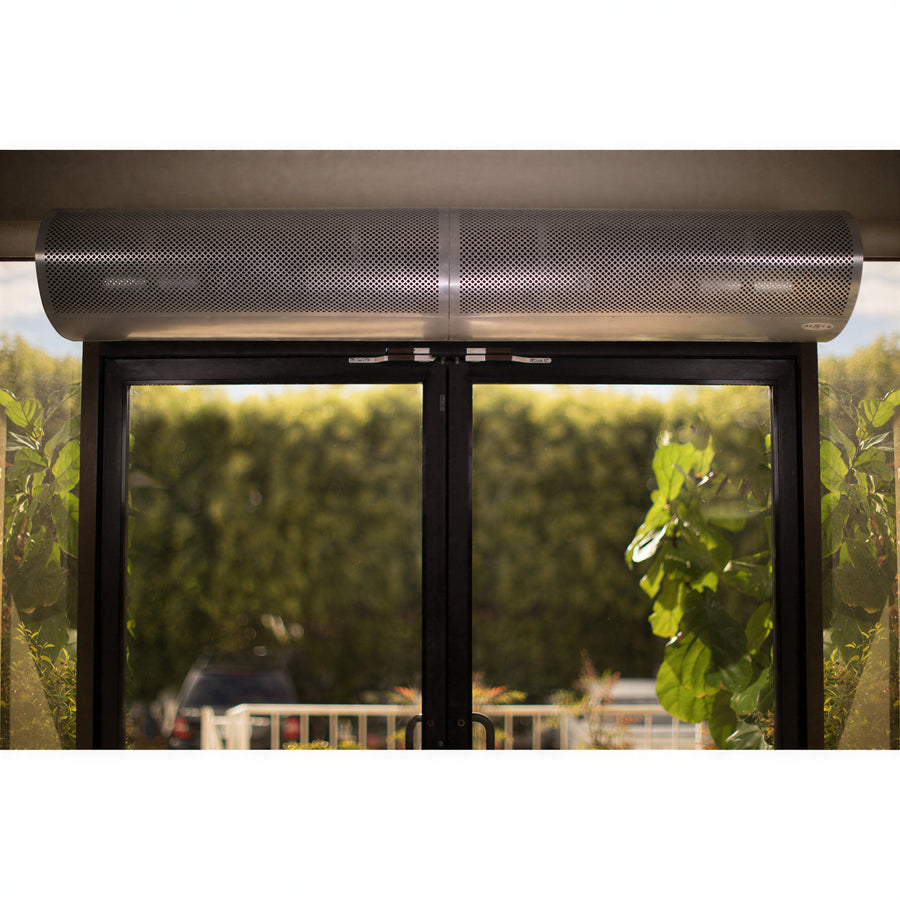

The Mars Air Systems QP10144-3UD-AL is an unheated QuietPro air curtain specified for a 144 in door opening. It has an anodized aluminum cabinet, three 1/2 hp motors, and 208-230 V, 60 Hz, single-phase power.
The unit includes an integrated 24 V control circuit and industrial magnetic switch 99-018. Adjustable air directional vanes provide a 40° sweep from front to back.
Unheated operation
The product is specified as an unheated air curtain.
144 in door opening
Specified for a 144 in door opening, with a listed maximum opening height of 8 ft.
Three 1/2 hp motors
Uses three 1/2 hp continuous-duty TEAO motors.
Electrical configuration
Operates at 208-230 V, 60 Hz, single phase, with an integrated 24 V control circuit.
Included magnetic switch
Includes industrial magnetic switch 99-018.
Anodized aluminum cabinet
The cabinet has an anodized aluminum finish.
Adjustable air direction
Adjustable air directional vanes provide a 40° sweep from front to back.
Air performance
Listed performance includes 4,247 fpm maximum core velocity, 1,730 fpm average velocity, and 4,326 cfm volume.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
