Mars Air Systems QP10144-3UA-AL Unheated Air Curtain for 144 in. Door, Anodized Aluminum Cabinet, 3 × 1/2 HP Motors

SKU: QP10144-3UA-AL
$4,416.53
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

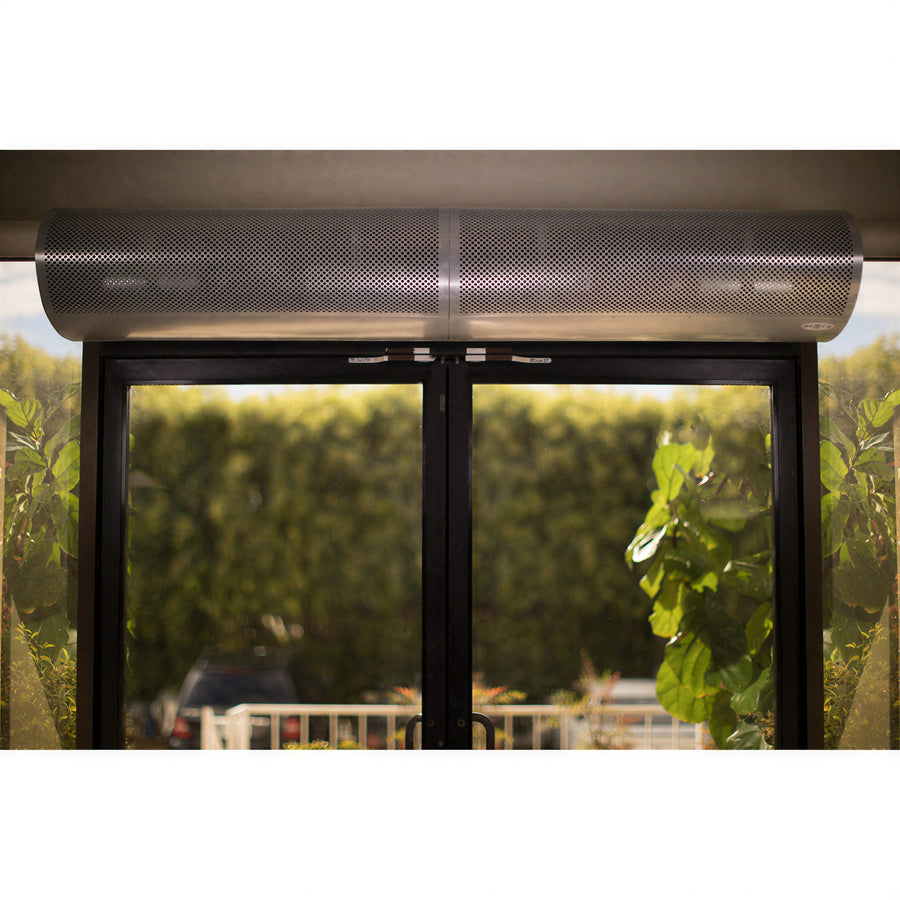

The Mars Air Systems QP10144-3UA-AL is an unheated QuietPro air curtain for a 144-inch-wide door. It has an anodized aluminum cabinet, three 1/2 hp motors, and 115 V/60 Hz single-phase power.

The unit includes an integrated 24 V control circuit and industrial magnetic switch 99-018. Adjustable air directional vanes provide a 40° sweep from front to back.

Product Weight:

164.7 lb

Unheated operation

Designed as an unheated air curtain for a 144 in. wide door.

Three-motor configuration

Uses three 1/2 hp continuous-duty TEAO motors with NEMA 1 construction.

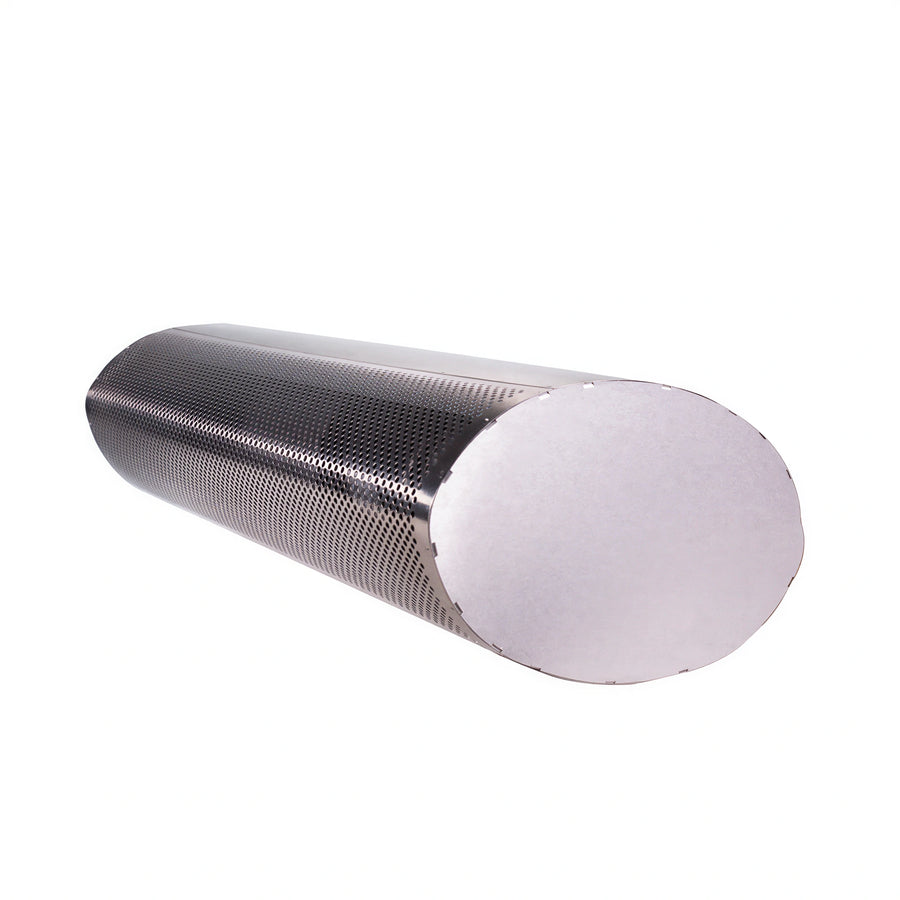

Anodized aluminum cabinet

The cabinet has a standard anodized aluminum finish.

Integrated controls

Includes an integrated 24 V control circuit and industrial magnetic switch 99-018.

Adjustable airflow direction

Air directional vanes provide a 40° sweep from front to back.

115 V electrical configuration

Configured for 115 V, 60 Hz, single-phase power.

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment
Product type Unheated air curtain
Door width 144 in.
Maximum opening height 8 ft
Cabinet finish Anodized aluminum
Motors 3 motors
Motor horsepower 1/2 hp per motor
Motor construction Continuous-duty TEAO, NEMA 1
Voltage 115 V
Frequency 60 Hz
Phase Single-phase
Full-load amperage 15.3 A
Control circuit Integrated 24 V
Magnetic switch Industrial magnetic switch 99-018
Nozzle length 144 in.
Overall length 144 in.
Top knockout location 43 1/2 in.
Intermediate supports 2
Maximum core velocity 4,247 fpm
Average velocity 1,730 fpm
Air volume 4,326 cfm
Uniformity 85%
Power rating 1,647 W
Sound level 57 dBA at 10 ft for a 3-motor unit
Vane adjustment 40° sweep front to back

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty and 1-year warranty for 24 V control components.

Documents

PDF Cutsheet PDF Download PDF Qp10 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It is designed for a 144 in. wide door.
It has three 1/2 hp motors.
It is configured for 115 V, 60 Hz, single-phase power, with a listed full-load amperage of 15.3 A.
Yes. It has an integrated 24 V control circuit and industrial magnetic switch 99-018.
The cabinet has an anodized aluminum finish.
The product has a 5-year parts warranty and a 1-year warranty for 24 V control components.
