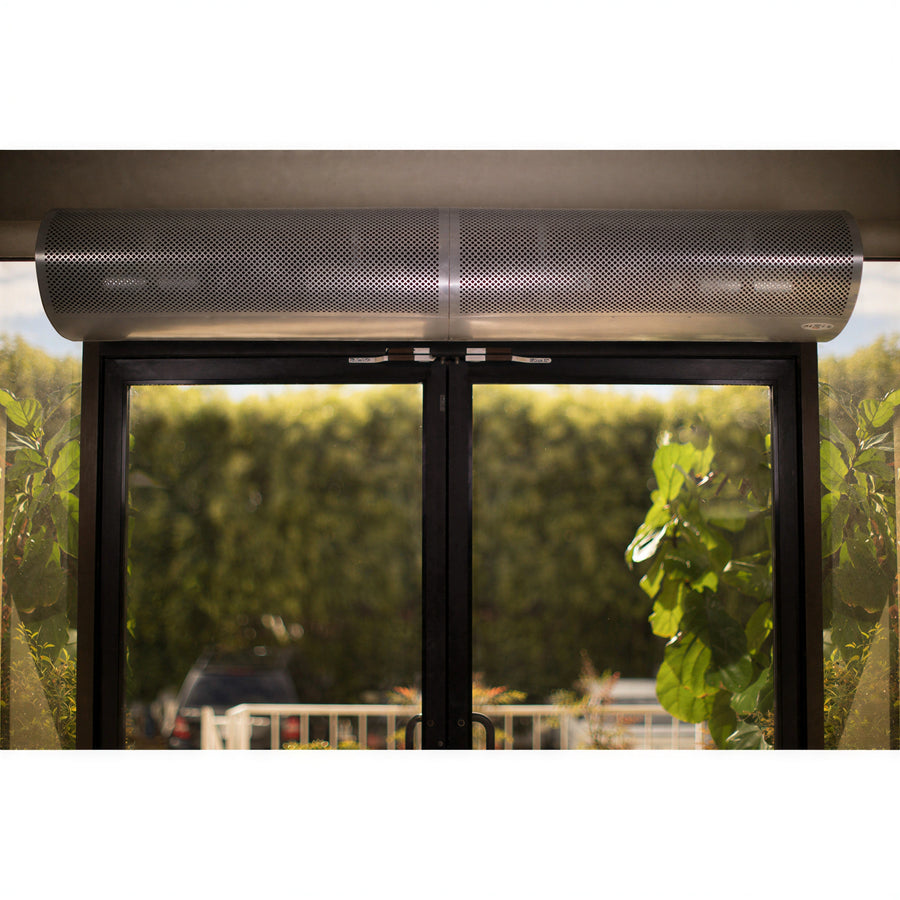

Mars Air Systems QP10108-3UA-AL Unheated Air Curtain for 108" Door, Anodized Aluminum Cabinet, 3 × 1/2 HP Motors
SKU: QP10108-3UA-AL
$4,292.40
The Mars Air Systems QP10108-3UA-AL is an unheated QuietPro air curtain for a 108-inch-wide door. It has an anodized aluminum cabinet, three 1/2 HP motors, and 115 V, 60 Hz, single-phase power.
- Integrated 24 V control circuit
- Industrial magnetic switch 99-018
- Listed weight of 175 lb
Unheated operation
Designed as an unheated air curtain.
108-inch door coverage
Specified for a 108-inch-wide door.
Three-motor configuration
Uses three 1/2 HP motors.
Anodized aluminum cabinet
The cabinet has an anodized aluminum finish.
Electrical configuration
Rated for 115 V, 60 Hz, single-phase power.
Integrated control circuit
Includes an integrated 24 V control circuit.
Industrial magnetic switch
Includes industrial magnetic switch 99-018.
Type
Unheated
Door opening width
108 in
Nozzle length
108 in
Overall length
108 in
Motors
3 motors
Horsepower per motor
1/2 hp
Cabinet finish
Anodized aluminum
Voltage
115 V
Frequency
60 Hz
Phase
Single-phase
Control circuit
24 V
Magnetic switch
99-018
Maximum opening height
8 ft
Maximum core velocity
5,960 fpm
Average core velocity
2,206 fpm
Air volume
4,137 cfm
Velocity uniformity
84%
Power rating
1,500 W
Full load amperage
15.3 A
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. It is an unheated air curtain.
It is specified for a 108-inch-wide door.
It has three 1/2 HP motors.
It uses 115 V, 60 Hz, single-phase power.
Yes. It has an integrated 24 V control circuit.
Yes. Industrial magnetic switch 99-018 is included.
