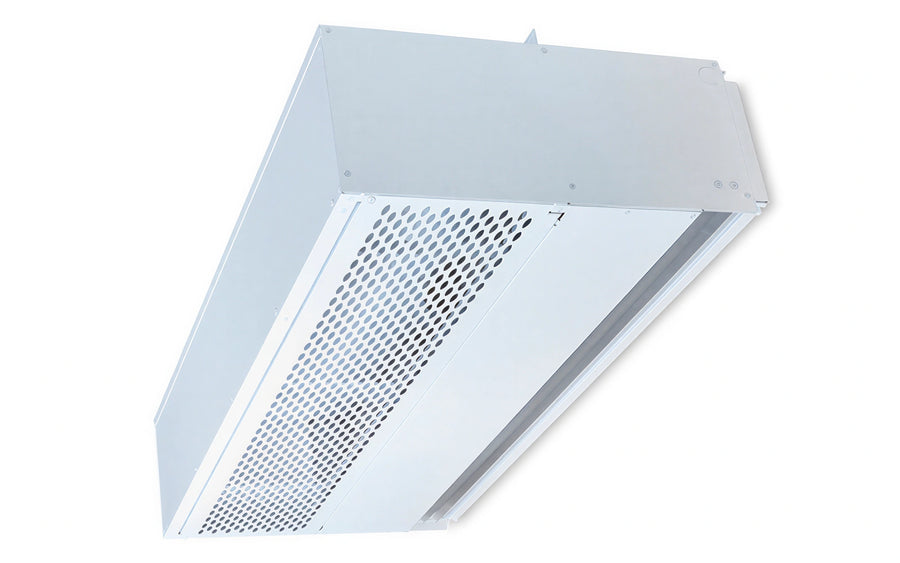

Mars Air Systems PH896-2UD-PW Unheated Air Curtain for 96-Inch Door, Aluminum Cabinet, Pearl White Finish

SKU: PH896-2UD-PW
$3,517.47
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

PH896-2UD-PW is an unheated Phantom 8 air curtain for a 96-inch door. It features an aluminum cabinet with a Pearl White powder coat finish and two 1/6 HP motors.

  • 208–230 V, 60 Hz, single-phase power
  • Integrated 24 V control circuit with industrial magnetic switch 99-125
  • Variable speed controller with off setting
  • Adjustable air directional vane with 40° front-to-back sweep
  • Removable wall mounting bracket

Overall Dimensions:

96.0"W x 17.25"D x 7.75"H

Product Weight:

150.0 lb

Unheated operation

Designed as an unheated air curtain for a 96-inch door.

Aluminum cabinet

Aluminum cabinet with a Pearl White powder coat finish.

Dual motors

Two 1/6 HP continuous-duty NEMA 1 motors.

Electrical configuration

Operates on 208–230 V, 60 Hz, single-phase power.

Integrated controls

Factory-wired 24 V control circuit with industrial magnetic switch 99-125.

Variable speed control

Variable speed controller includes an off setting.

Adjustable air direction

Adjustable air directional vane with a 40° sweep from front to back.

Wall mounting

Removable wall mounting bracket.

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment
Series Phantom 8
Operation Unheated
Door width 96 in
Cabinet material Aluminum
Finish Pearl White powder coat
Motor configuration 2 x 1/6 HP
Motor type Continuous duty, NEMA 1
Power supply 208–230 V, 60 Hz, single phase
Control circuit 24 V
Magnetic switch 99-125
Air directional vane Adjustable, 40° front-to-back sweep
Maximum core velocity at nozzle 2,438 fpm
Average velocity 1,453 fpm
Air volume 1,892 cfm
Velocity uniformity 60%
Power rating 310 W
Sound level 53 dBA at 10 ft in a free field

Warranty & Protection

5-year parts warranty.

Documents

PDF Ph8 unheated submittals PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It is intended for a 96-inch-wide door.
It uses 208–230 V, 60 Hz, single-phase power.
It has two 1/6 HP continuous-duty motors.
Yes. It has an integrated 24 V control circuit and industrial magnetic switch 99-125.
The product has a 5-year parts warranty. The 24 V control components have a 1-year warranty.
