Mars Air Systems PH1072-2UD-PW Unheated Air Curtain, 72 in Door Width, 2 x 1/2 HP Motors, Aluminum Cabinet

SKU: PH1072-2UD-PW
$2,797.20
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

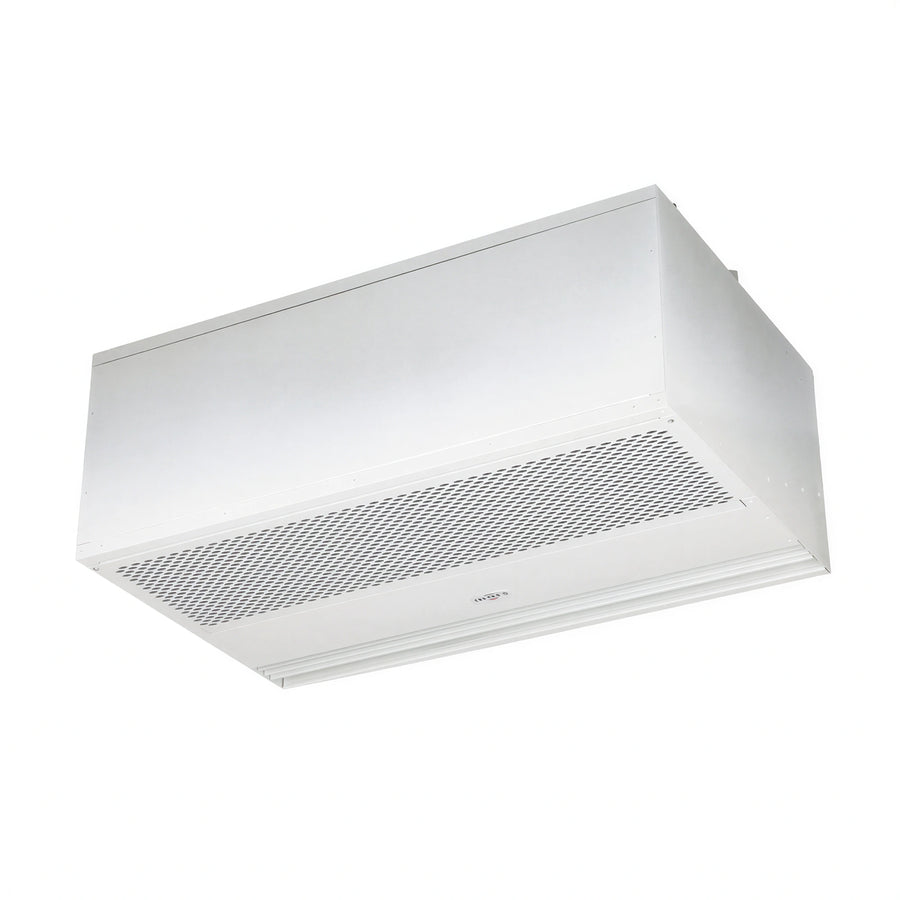

The Mars Air Systems PH1072-2UD-PW is an unheated Phantom 10 air curtain designed for a 72-inch door opening. It has an aluminum cabinet with a Pearl White powder-coat finish and two 1/2 HP motors.

The unit operates at 208–230 V, 60 Hz, single phase, with an integrated 24 V control circuit and commercial magnetic switch 99-018.

  • Air volume: 2,920 cfm
  • Maximum core velocity: 3,950 fpm
  • Average velocity: 1,947 fpm
  • Adjustable air directional vanes with a 40° front-to-back sweep

Unheated operation

The unit is an unheated air curtain.

72-inch door coverage

Designed for a 72-inch door opening.

Dual motors

Uses two 1/2 HP continuous-duty TEAO motors.

Aluminum cabinet

Constructed with an aluminum cabinet.

Pearl White finish

Finished with a Pearl White powder coat.

Electrical configuration

Operates at 208–230 V, 60 Hz, single phase.

24 V control circuit

Includes an integrated 24 V control circuit and commercial magnetic switch 99-018.

Adjustable air direction

Directional vanes provide a 40° sweep from front to back.

Series Phantom 10
Type Unheated air curtain
Door width 72 in
Overall length 72 in
Nozzle length 72 in
Cabinet material Aluminum
Finish Pearl White powder coat
Motors 2 motors
Horsepower per motor 1/2 hp
Motor construction Continuous-duty TEAO, NEMA 1
Voltage 208–230 V
Frequency 60 Hz
Phase Single phase
Control circuit 24 V
Magnetic switch Commercial magnetic switch 99-018
Maximum opening height 8 ft
Air volume 2,920 cfm
Maximum core velocity 3,950 fpm
Average velocity 1,947 fpm
Velocity uniformity 91%
Power rating 916 W
Weight 105 lb

Frequently Asked Questions

No. It is an unheated air curtain.
It is designed for a 72-inch door opening.
The unit operates at 208–230 V, 60 Hz, single phase.
It has two 1/2 HP continuous-duty TEAO motors.
Yes. The product specification lists an integrated 24 V control circuit and commercial magnetic switch 99-018.
The aluminum cabinet has a Pearl White powder-coat finish.
The documentation lists a 5-year parts warranty and a 1-year warranty for 24 V control components.
