Mars Air Systems PH1060-2UG-PW Unheated Air Curtain, 60"W, 2 × 1/2 HP Motors, for Openings up to 8 ft
SKU: PH1060-2UG-PW
$2,868.60
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

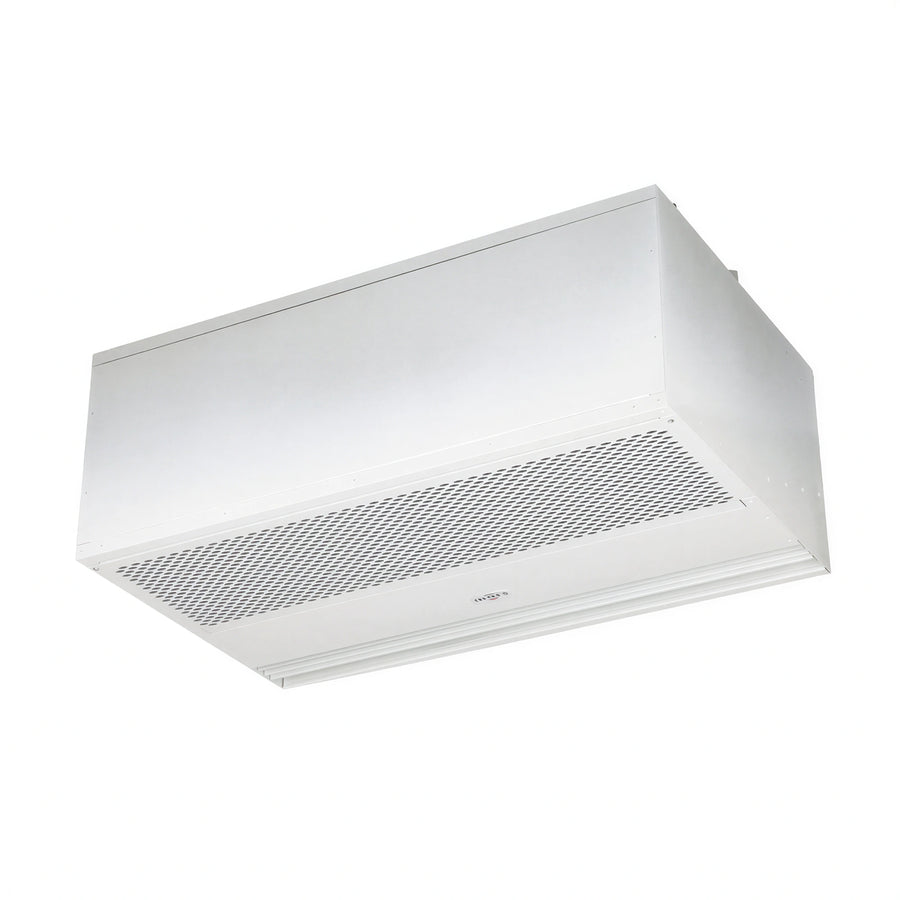

PH1060-2UG-PW is an unheated Mars Air Systems Phantom 10 air curtain sized for a 60 in door opening up to 8 ft high.
- Two 1/2 HP motors operate on 208–230 V, 60 Hz, three-phase power.
- An integrated 24 V control circuit and commercial magnetic switch 99-018 are specified for this model.
- The aluminum cabinet has a Pearl White powder coat finish.
Unheated operation
Phantom 10 air curtain configuration without heating.
Two 1/2 HP motors
The unit uses two continuous-duty TEAO motors with NEMA 1 construction.
Electrical configuration
208–230 V, 60 Hz, three-phase power with an integrated 24 V control circuit.
Magnetic switch
Commercial magnetic switch 99-018 is specified for this model.
Cabinet and finish
Aluminum cabinet with a Pearl White powder coat finish.
Adjustable air direction
Adjustable vanes provide a 40° front-to-back sweep.
Standard filtration
Cleanable polyester filters are installed standard.
Series
Phantom 10
Type
Unheated
Overall length
60 in
Nozzle length
60 in
Motors
2
Horsepower per motor
1/2 hp
Motor construction
TEAO, NEMA 1
Motor duty
Continuous duty
Voltage
208–230 V
Frequency
60 Hz
Phase
3-phase
Control circuit
24 V
Magnetic switch
Commercial magnetic switch 99-018
Maximum opening height
8 ft
Weight
100 lb
Cabinet material
Aluminum
Finish
Pearl White powder coat
Maximum core velocity
4,250 fpm
Average velocity
2,217 fpm
Air volume
2,771 cfm
Velocity uniformity
93%
Power rating
861 W
Full load amperage
1.6 A
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. It is an unheated air curtain.
It is specified for openings up to 8 ft high and has a 60 in overall length.
The model uses 208–230 V, 60 Hz, three-phase power.
It has two 1/2 HP motors.
Yes. It has an integrated 24 V control circuit and a commercial magnetic switch identified as 99-018.
The aluminum cabinet has a Pearl White powder coat finish.
The documentation specifies a 5-year parts warranty. The 24 V control components have a 1-year warranty.
No. The documentation states that the PH1060-2 model is not licensed to bear the AMCA seal.
