Key specifications
- Amps
- 1.8/1.6 Amps
- Phase
- 3-Phase
- Type
- Air Curtain
- Style
- Unheated
- Material
- Aluminum
- Color
- Pearl White
Spec sheet

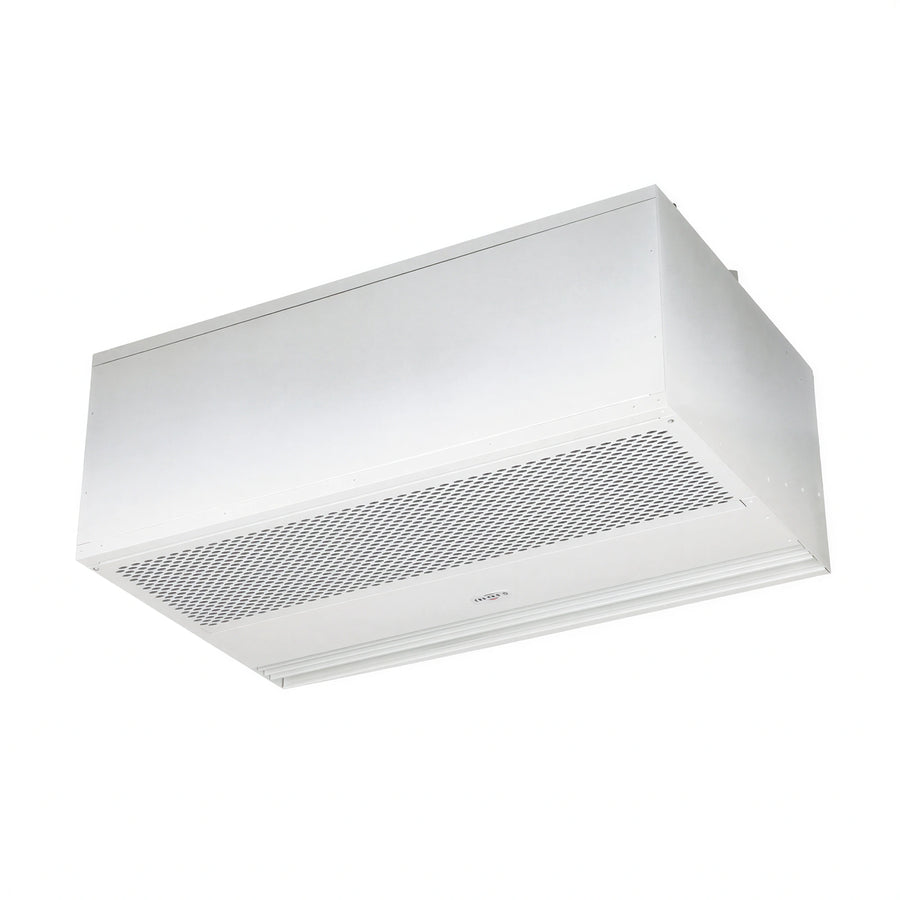

Mars Air Systems PH1048-1UG-PW Unheated Air Curtain for 48 in Door, Aluminum Cabinet, 1/2 HP Motor
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
PH1048-1UG-PW is an unheated Phantom 10 air curtain for a 48-inch-wide door. It has an aluminum cabinet with a Pearl White powder coat finish, one 1/2 HP continuous-duty TEAO motor, and 208-230 Volt, 60 Hz, 3-Phase operation.
The unit includes an integrated 24V control circuit and commercial magnetic switch 99-018. Manufacturer mechanical data lists 1,632 CFM airflow volume, 3,895 FPM maximum core velocity, and 91% velocity uniformity.
- Cleanable polyester filters are installed as standard.
- Adjustable air directional vanes provide a 40-degree front-to-back sweep.
- Made in the USA.
Product Weight:
65.0 lbUnheated Operation
Provides unheated air curtain operation for a 48-inch-wide door.
Aluminum Cabinet
Aluminum cabinet with a Pearl White powder coat finish.
Motor
One 1/2 HP continuous-duty Totally Enclosed Air Over motor.
Control Circuit
Integrated 24V control circuit with commercial magnetic switch 99-018.
Airflow Performance
Manufacturer mechanical data lists 1,632 CFM airflow volume, 3,895 FPM maximum core velocity, and 91% velocity uniformity.
Directional Vanes
Adjustable air directional vanes provide a 40-degree front-to-back sweep.
Standard Filter
Cleanable polyester filters are installed as standard.
