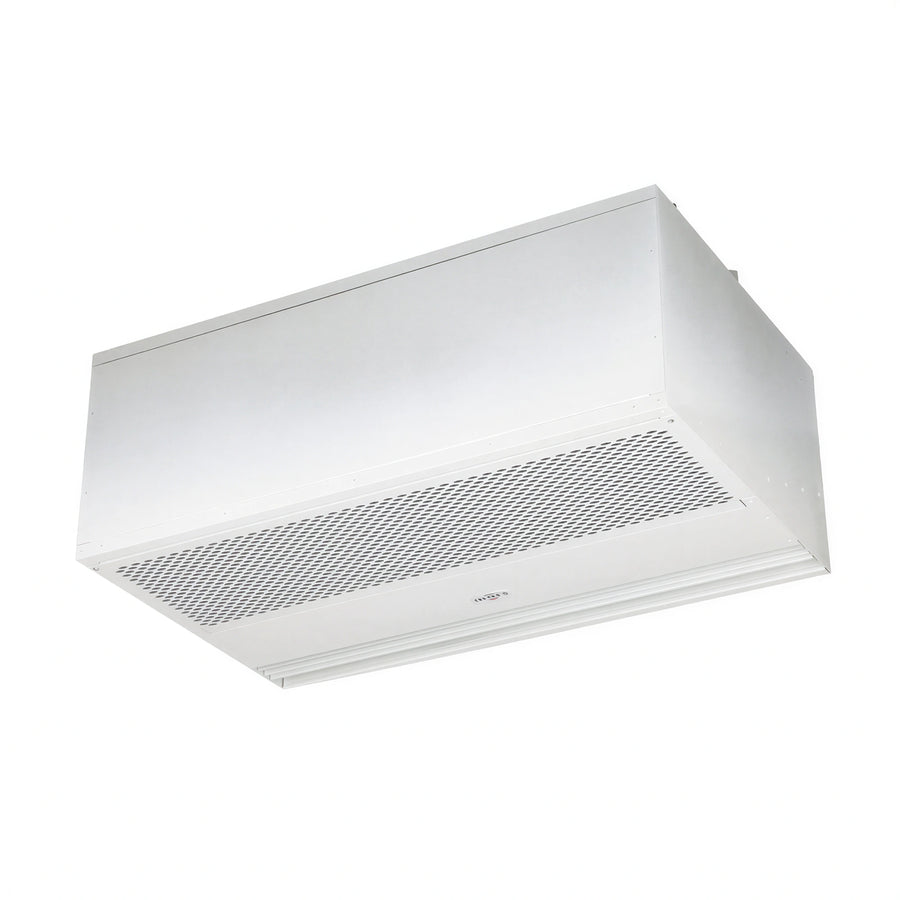

Mars Air Systems PH1048-1UA-PW Unheated Air Curtain for 48 in Door, 1/2 HP Motor

SKU: PH1048-1UA-PW
$2,066.40
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

PH1048-1UA-PW is an unheated Phantom 10 air curtain specified for a 48 in door. It has an aluminum cabinet with a Pearl White powder coat finish, one 1/2 HP motor, and 115 V, 60 Hz, single-phase power.

  • Integrated 24 V control circuit with commercial magnetic switch 99-018.
  • Adjustable air directional vanes with a 40° sweep from front to back.
  • Cleanable polyester filters are installed as standard.

Unheated operation

Specified as an unheated air curtain for a 48 in door.

Motor

Uses one continuous-duty 1/2 HP Totally Enclosed Air Over motor with NEMA 1 construction.

Electrical configuration

Rated for 115 V, 60 Hz, single-phase service with 5.1 A full-load amperage.

Control circuit

Includes an integrated 24 V control circuit and commercial magnetic switch 99-018.

Cabinet and finish

Aluminum cabinet with Pearl White powder coat finish.

Air direction

Adjustable air directional vanes provide a 40° sweep from front to back.

Standard filtration

Cleanable polyester filters are installed as standard.

Listed airflow data

The exact model is listed at 3,895 fpm maximum core velocity at the nozzle, 1,632 fpm average velocity, and 1,632 cfm volume.

Type Unheated
Application Width 48 in door
Maximum Opening Height 8 ft
Cabinet Material Aluminum
Finish Pearl White powder coat
Motor Count 1 motor
Motor Horsepower 1/2 hp
Motor Type Continuous-duty TEAO, NEMA 1
Voltage 115 V
Frequency 60 Hz
Phase 1 ph
Full Load Amperage 5.1 A
Control Circuit 24 V
Magnetic Switch Commercial magnetic switch 99-018
Overall Length 48 in
Nozzle Length 48 in
J-box Distance from Each Edge 24 in
Weight 65 lb
Maximum Core Velocity at Nozzle 3,895 fpm
Average Velocity 1,632 fpm
Air Volume 1,632 cfm
Velocity Uniformity 91%
Power Rating 518 W

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty; 1-year warranty for 24 V control components.

Frequently Asked Questions

No. This model is specified as an unheated air curtain.
It is specified for a 48 in door, with a listed maximum opening height of 8 ft.
It uses 115 V, 60 Hz, single-phase power and has a 5.1 A full-load amperage.
Yes. It has an integrated 24 V control circuit.
The model is specified with commercial magnetic switch 99-018.
The listed weight is 65 lb.
The product documents specify a 5-year parts warranty and a 1-year warranty for 24 V control components.
