Mars Air Systems PH1042-1UH-PW Unheated Air Curtain for 42 in Door, 1/2 HP Motor, Aluminum Cabinet

SKU: PH1042-1UH-PW
$2,137.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

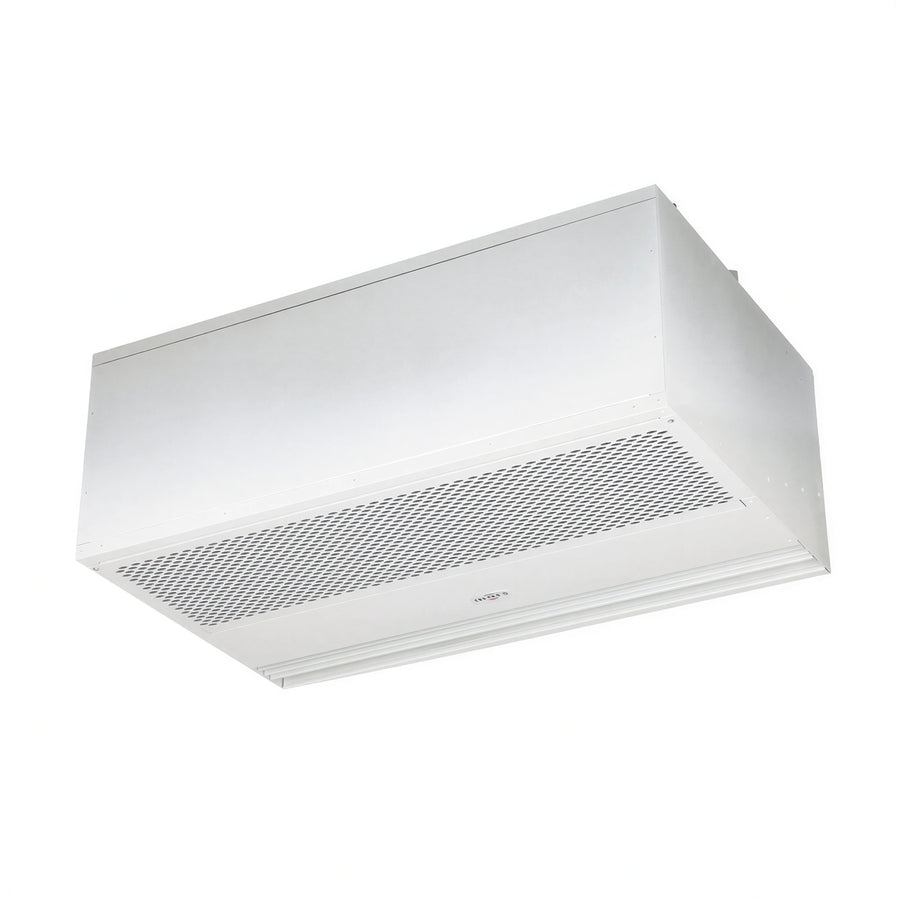

The Mars Air Systems PH1042-1UH-PW is a Phantom 10 unheated air curtain for a 42 in door. It has an aluminum cabinet with a Pearl White powder coat finish and one 1/2 HP motor.

This model uses 460 V, 60 Hz, 3-phase power and has an integrated 24 V control circuit with commercial magnetic switch 99-018. Its overall length and nozzle length are each 42 in.

Unheated operation

The Phantom 10 configuration is unheated.

Aluminum cabinet

The cabinet is aluminum with a Pearl White powder coat finish.

Single 1/2 HP motor

The unit has one 1/2 HP motor.

460 V three-phase service

The specified electrical service is 460 V, 60 Hz, 3-phase.

Integrated control circuit

An integrated 24 V control circuit is provided.

Commercial magnetic switch

Commercial magnetic switch 99-018 is specified for this product.

Adjustable air direction

Adjustable air directional vanes provide a 40° sweep from front to back.

Series Phantom 10
Operating type Unheated
Cabinet material Aluminum
Cabinet finish Pearl White powder coat
Motor count 1
Motor horsepower 1/2 HP
Electrical service 460 V / 60 Hz / 3-phase
Full-load amps 0.8 A
Control circuit 24 V
Magnetic switch Commercial 99-018
Nozzle length 42 in
J-box distance from each edge 21 in
Maximum opening height 8 ft
Maximum core velocity at nozzle 4150 fpm
Average velocity 1806 fpm
Air volume 1580 cfm
Velocity uniformity 89%
Power rating 496 W

Certifications & Compliance

Warranty & Protection

5-year parts warranty; 1-year warranty for 24 V control components.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Collateral PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download PDF Video PDF Download

Frequently Asked Questions

No. It is an unheated Phantom 10 air curtain.
It is specified for 460 V, 60 Hz, 3-phase service.
It has one 1/2 HP motor.
It has an aluminum cabinet with a Pearl White powder coat finish.
Yes. It has an integrated 24 V control circuit.
Commercial magnetic switch 99-018 is specified.
The maximum opening height is 8 ft.
