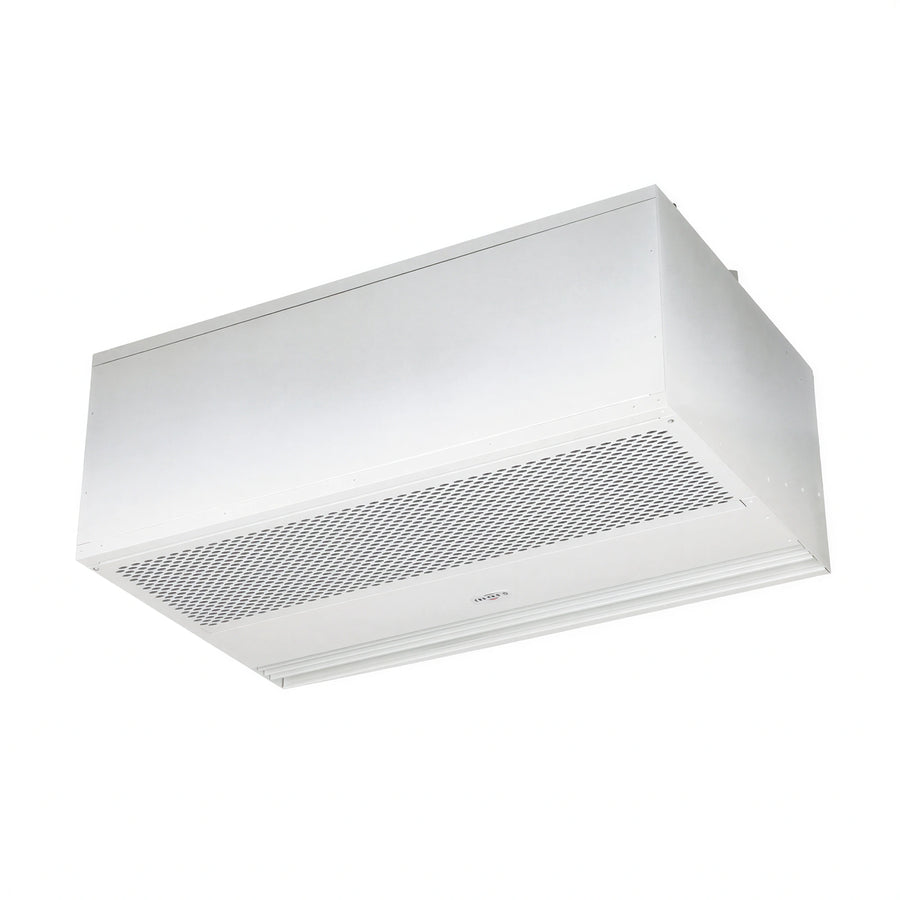

Mars Air Systems PH1042-1UA-PW Unheated Air Curtain for 42 in Door, 1/2 HP Motor, Aluminum Cabinet
The Mars Air Systems PH1042-1UA-PW is an unheated Phantom 10 air curtain for a 42 in door opening. It has an aluminum cabinet with a Pearl White powder coat finish, one 1/2 HP motor, 115 V/60 Hz/1-phase power, an integrated 24 V control circuit, and commercial magnetic switch 99-018.
- Airflow data: 4,150 fpm maximum core velocity at the nozzle, 1,806 fpm average velocity, and 1,580 cfm volume.
- Installation configuration: Adjustable air directional vanes provide a 40° sweep from front to back.
- Certification: cETLus.
Unheated operation
This model is an unheated air curtain.
Aluminum cabinet and finish
The cabinet is aluminum with a Pearl White powder coat finish.
Motor
One 1/2 HP continuous-duty TEAO motor with NEMA 1 construction.
Electrical configuration
115 V, 60 Hz, single-phase operation.
24 V control circuit
Integrated and factory-wired 24 V control circuit.
Magnetic switch
Commercial magnetic switch 99-018 is specified for this model.
Adjustable air direction
Adjustable air directional vanes provide a 40° sweep from front to back.
Airflow performance
The exact model data lists 4,150 fpm maximum core velocity at the nozzle, 1,806 fpm average velocity, 1,580 cfm volume, and 89% uniformity.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
