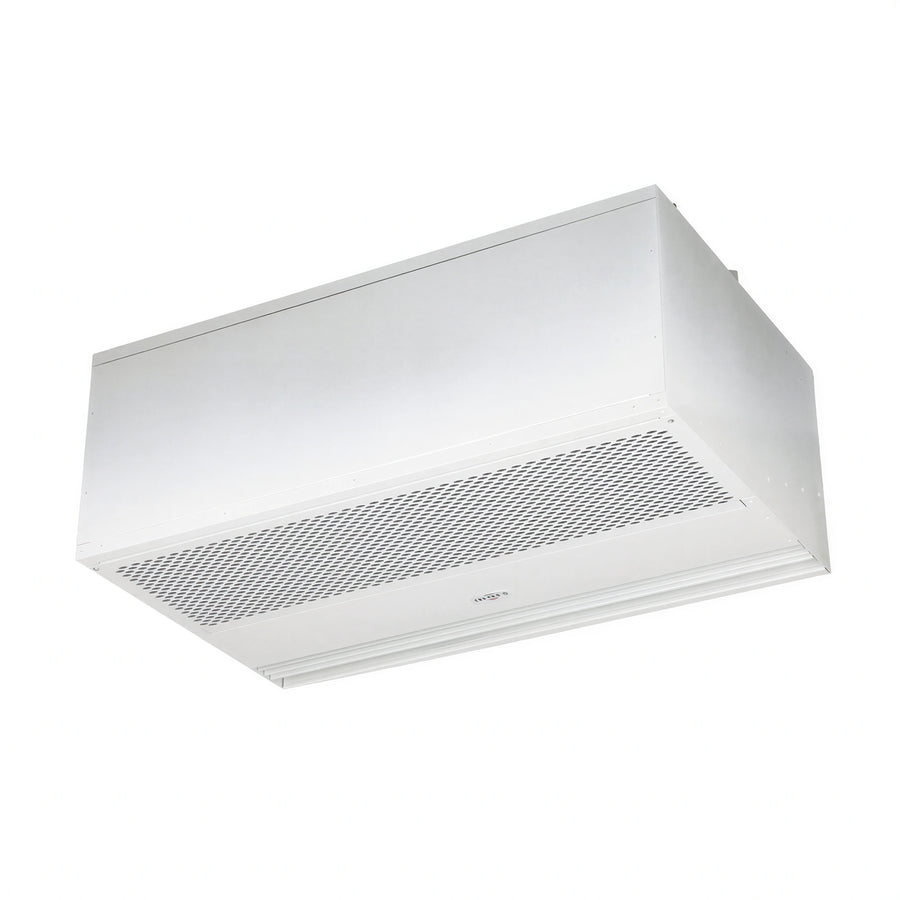

Mars Air Systems PH1036-1UH-PW Unheated Air Curtain for 36 in Door, 1/2 HP Motor, Aluminum Cabinet

SKU: PH1036-1UH-PW
$2,045.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems PH1036-1UH-PW is an unheated Phantom 10 air curtain for a 36 in door. It has an aluminum cabinet with a Pearl White powder coat finish, one 1/2 hp motor, and 460V/60Hz/3-phase electrical service.

This model includes an integrated 24V control circuit and commercial magnetic switch 99-018. Adjustable air directional vanes provide a 40-degree front-to-back sweep.

  • Cleanable polyester filters are installed standard.
  • The unit has an internal junction box for electrical wiring.
  • The listed maximum opening height is 8 ft.

Unheated operation

The PH1036-1UH-PW is an unheated air curtain.

Aluminum cabinet

The cabinet is aluminum and has a Pearl White powder coat finish.

Single 1/2 hp motor

The unit uses one 1/2 hp continuous-duty TEAO motor with NEMA 1 construction.

460V three-phase electrical service

The specified electrical service is 460V/60Hz/3-phase.

Integrated 24V controls

The model includes an integrated 24V control circuit.

Commercial magnetic switch

Commercial magnetic switch 99-018 is specified for this model.

Adjustable air direction

Adjustable air directional vanes provide a 40-degree front-to-back sweep.

Standard polyester filters

Cleanable polyester filters are installed standard.

Type Unheated
Application width 36 in
Maximum opening height 8 ft
Cabinet material Aluminum
Finish Pearl White powder coat
Motors 1 motor
Horsepower per motor 1/2 hp
Motor type Continuous-duty TEAO, NEMA 1
Electrical service 460V, 60Hz, 3-phase
Full-load amperage 0.8 A
Control circuit 24V
Magnetic switch Commercial magnetic switch 99-018
Overall length 36 in
Nozzle length 36 in
Junction box distance from each edge 18 in
Maximum core velocity at nozzle 3,950 fpm
Average velocity 1,947 fpm
Airflow volume 1,460 cfm
Velocity uniformity 91%
Power rating 458 W
Sound level 66 dBA at 10 ft in a free field
Filter Cleanable polyester
Weight 60 lb

Certifications & Compliance

Warranty & Protection

5-year parts warranty and 1-year warranty for 24V control components.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download PDF Marketing sheet PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The PH1036-1UH-PW is an unheated air curtain.
It uses 460V, 60Hz, 3-phase electrical service and has an integrated 24V control circuit.
It has one 1/2 hp motor.
It is specified for a 36 in door.
The exact-product specification lists commercial magnetic switch 99-018.
The listed maximum opening height is 8 ft.
The documentation lists a 5-year parts warranty and a 1-year warranty for 24V control components.
