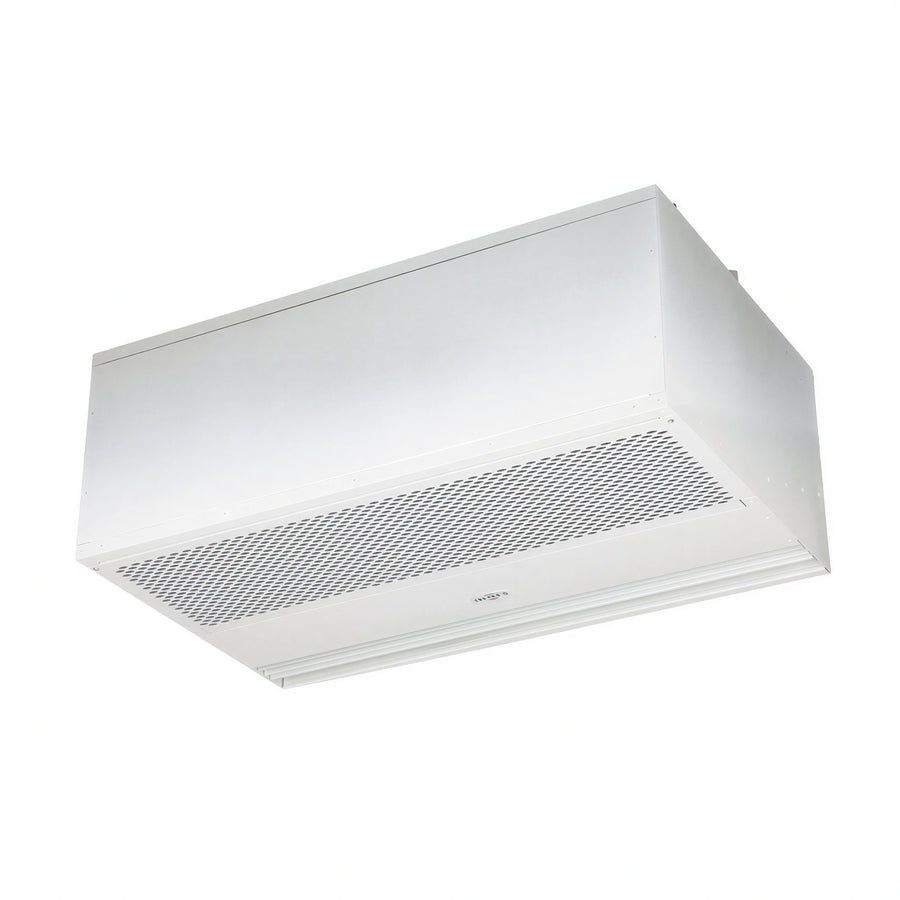

Mars Air Systems PH1036-1UA-PW Unheated Air Curtain for 36 in Door, 1/2 HP Motor, Aluminum Cabinet

SKU: PH1036-1UA-PW
$1,932.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems Phantom 10 is an unheated air curtain specified for a 36 in door. It features an aluminum cabinet with a Pearl White powder coat finish, one 1/2 hp motor, 115 V single-phase power, an integrated 24 V control circuit, and commercial magnetic switch 99-018.

  • Airflow: Maximum core velocity of 3,950 fpm, average velocity of 1,947 fpm, and air volume of 1,460 cfm.
  • Controls: Includes a factory-wired 24 V control circuit and magnetic switch 99-018.
  • Construction: Aluminum cabinet with Pearl White powder coat finish.

Unheated operation

Configured as an unheated air curtain for a 36 in door.

Aluminum cabinet

The cabinet is aluminum and has a Pearl White powder coat finish.

Single motor

Uses one 1/2 hp continuous-duty TEAO motor with NEMA 1 construction.

Integrated controls

Includes a factory-wired 24 V control circuit and commercial magnetic switch 99-018.

Adjustable air direction

Adjustable air directional vanes provide a 40° front-to-back sweep.

Internal junction box

An internal junction box is provided for electrical wiring.

Series Phantom 10
Type Unheated
Door width 36 in
Maximum opening height 8 ft
Cabinet material Aluminum
Cabinet finish Pearl White powder coat
Motor count 1 motor
Motor horsepower 1/2 hp
Motor type Continuous-duty TEAO, NEMA 1
Electrical rating 115 V / 60 Hz / 1 phase
Control circuit 24 V
Magnetic switch 99-018
Overall length 36 in
Nozzle length 36 in
Junction box distance from each edge 18 in
Maximum core velocity 3,950 fpm
Average velocity 1,947 fpm
Air volume 1,460 cfm
Velocity uniformity 91%
Power rating 458 W
Weight 60 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download PDF Video PDF Download

Frequently Asked Questions

No. It is an unheated Phantom 10 air curtain.
It is specified for a 36 in door and has a listed maximum opening height of 8 ft.
It uses 115 V, 60 Hz, single-phase power.
The product has an integrated 24 V control circuit and includes commercial magnetic switch 99-018.
A 5-year parts warranty is listed, with a 1-year warranty for 24 V control components.
