Mars Air Systems PH10108-3UG-PW Unheated Air Curtain, 108"W Door, 3 x 1/2 HP Motors, Aluminum Cabinet

SKU: PH10108-3UG-PW
$4,788.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

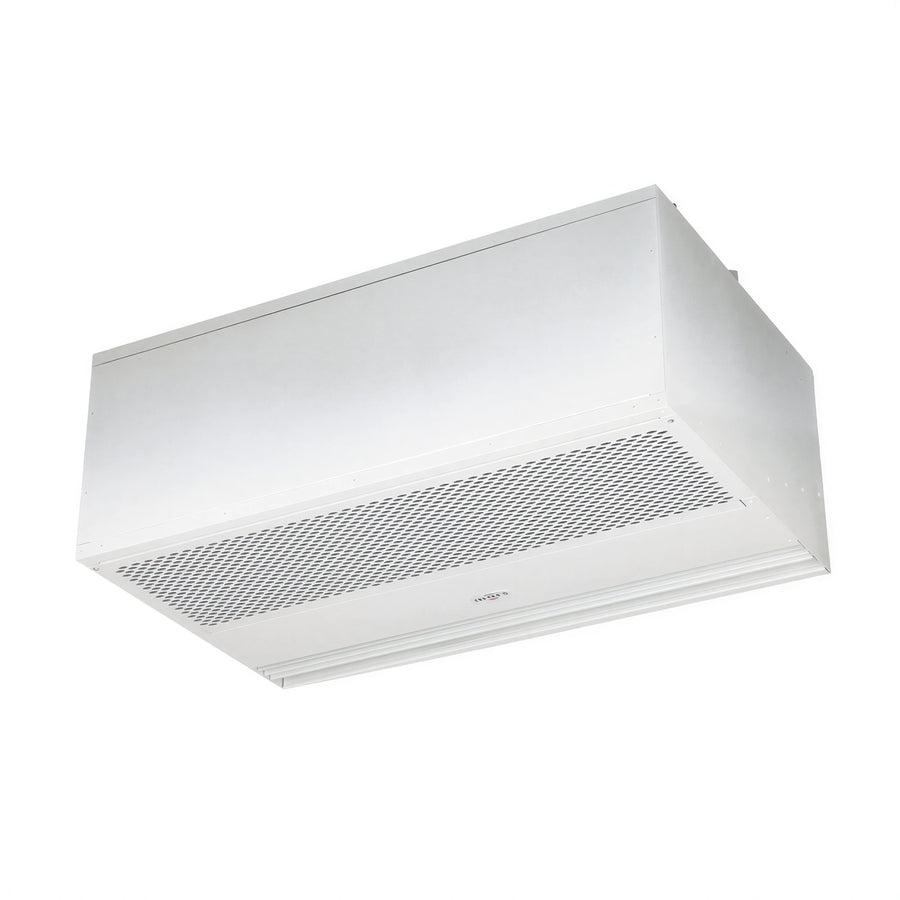

PH10108-3UG-PW is a Mars Air Systems Phantom 10 unheated air curtain specified for a 108-inch door opening.

  • Aluminum cabinet with Pearl White powder coat finish.
  • Three 1/2 HP motors.
  • 208-230 V, 60 Hz, three-phase electrical configuration.
  • Integrated 24 V control circuit and industrial magnetic switch 99-125.
  • ETL and cETLus listed.

Unheated operation

This Phantom 10 air curtain is specified as unheated.

108-inch door coverage

The unit is specified for a 108-inch door opening.

Three-motor configuration

The air curtain uses three 1/2 HP motors.

Electrical configuration

The specified electrical service is 208-230 V, 60 Hz, three-phase.

Cabinet and finish

The cabinet is aluminum with a Pearl White powder coat finish.

Integrated controls

The unit has an integrated 24 V control circuit and industrial magnetic switch 99-125.

Series Phantom 10
Type Unheated air curtain
Door opening width 108 in
Motor count 3
Horsepower per motor 1/2 hp
Cabinet material Aluminum
Finish Pearl White powder coat
Voltage 208-230 V
Frequency 60 Hz
Phase 3-phase
Control circuit 24 V
Magnetic switch Industrial magnetic switch 99-125
Maximum opening height 8 ft

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Ph10 unheated submittals PDF Download PDF Collateral PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download PDF Video PDF Download

Frequently Asked Questions

No. It is an unheated Phantom 10 air curtain.
It is specified for a 108-inch door opening.
It has three 1/2 HP motors.
The specified electrical configuration is 208-230 V, 60 Hz, three-phase.
It has an aluminum cabinet with a Pearl White powder coat finish.
It has an integrated 24 V control circuit and industrial magnetic switch 99-125.
The listed maximum opening height is 8 ft.
The product documents specify a 5-year parts warranty. The 24 V control components have a 1-year warranty.
