Key specifications
- Amps
- 9 Amps
- Phase
- 1-Phase
- Dimensions
- 42 in
- Type
- Air Curtain
- Style
- Unheated
- Installation Type
- Wall Mounted
Spec sheet

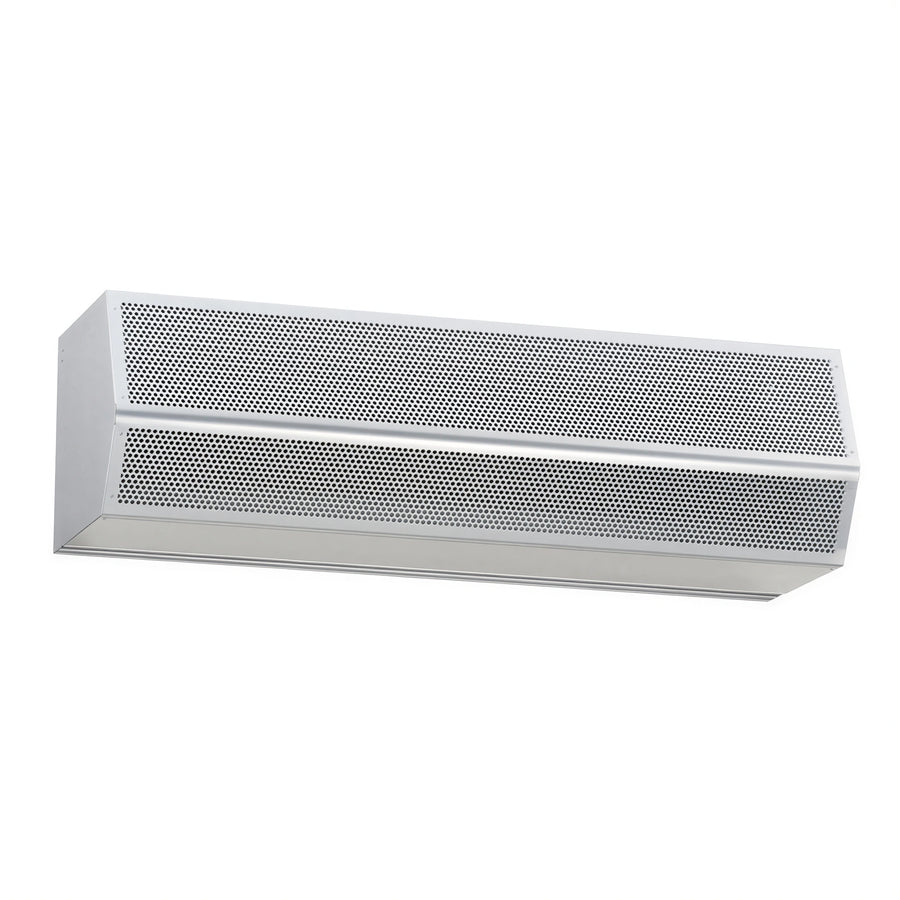

Mars Air Systems NH242-1UA-TS Unheated Air Curtain for 42" Door, 8 ft Opening, 1 HP Motor
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Mars Air Systems NH242-1UA-TS is an unheated air curtain for a 42-inch-wide door with an opening height up to 8 feet. It uses one 1 HP motor and operates at 115 volts, 60 Hz, single phase.
- Galvanized steel cabinet with Titanium Silver powder coat finish.
- Adjustable air directional vanes provide a 40-degree front-to-back sweep.
- Sanitation certified to ANSI/NSF 37 standards.
- ETL certified for indoor and outdoor use.
Product Weight:
55.0 lbUnheated Operation
This model is an unheated air curtain.
Door Opening Coverage
The 42-inch unit is specified for door openings up to 8 feet high.
Single 1 HP Motor
Includes one continuous-duty 1 HP TEAO motor.
Adjustable Air Direction
Air directional vanes provide a 40-degree front-to-back sweep.
Sanitation Certification
Certified to ANSI/NSF 37 standards.
Galvanized Steel Cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
Indoor and Outdoor Use
The documentation specifies indoor and outdoor use.
AMCA-Certified Performance
The model is included in AMCA-certified performance data to AMCA 211.
